Product Introduction

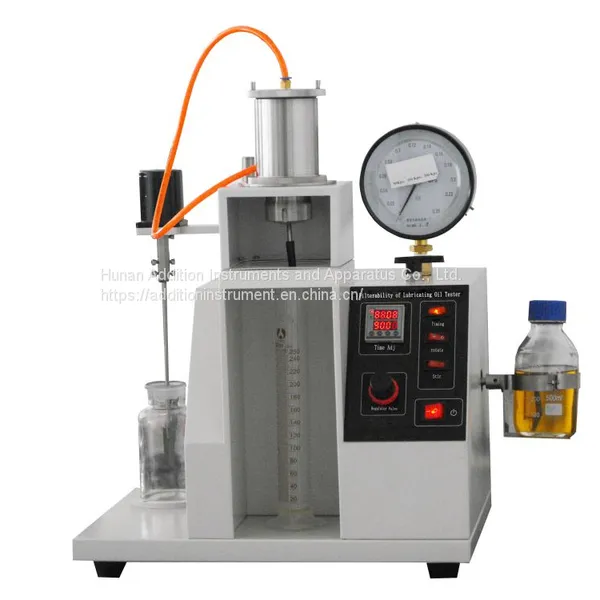

This instrument is used to determine the filterability of lubricating oil based on mineral oil, especially hydraulic oil in hydraulic system. It is not suitable for liquids based on other materials (such as flame retardant liquids, because they may be compatible with the filter membrane used in this method); nor for some hydraulic oils with special properties, because they contain insoluble or partial Dissolved additives or special macromolecular substances.
Technical Parameter
1. Applicable standard: ISO 13357 SH/0805
2. Timing method: digital display timer
3. Pressure control: precise pressure regulating valve adjustment, accurate control pressure is ±5 Kpa
4. Solvent receiver: special solvent filter receiving bottle
5. Rotation mode: driven by reduction gear motor, automatically reversed
6. Stirring method: motor stirring, 1500r/min±50r/min
7. Working power supply: AC220V 50Hz
8. Pressure display: digital meter display
9. Power of the whole machine: 2500W
10. Instrument size: 510*400*620mm
11. Net weight: 38KG
Main Feature
1. The glass accessories meet the standard requirements;
2. Digital display time, easy to operate and easy to observe;
3. Precise regulator valve adjustment, the pressure can be controlled within the range of 86658pa
4. The instrument is designed as an integrated structure, which is easy to operate;
5. The shell is made of cold-rolled steel plate, and the surface is treated by electrostatic spraying, which has good rust resistance and is easy to clean;
6. Electronic stirrer with stainless steel paddle and paddle.
