Temperature Recorder
Features:
1、 This product is simple and compact, the front is smaller than the bank card; USB interface, economical and affordable, recyclable, power off data is not lost.
2、Main Functions: It can automatically track and record the environmental temperature changes of drug cool cabinet, refrigerator, incubator, experimental equipment, incubator, thermostat, refrigerated transport vehicle, container and so on, display the clock and temperature value online, and realize the LCD speaker display /LED alarm light flashing.

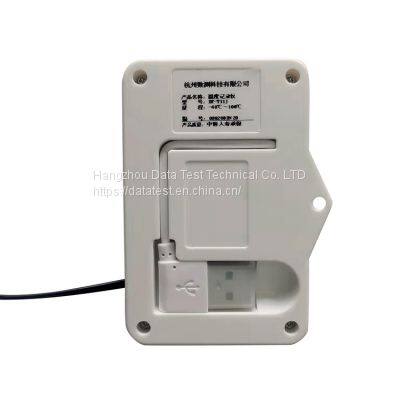

3、Integrated USB data cable design with recorder housing:
①Convenient data export, no need to find a separate USB data line, can be directly exported with a laptop mobile connection;
②Software operation instrument automatically connect, download and save data, easy to operate;
③Unique USB power supply design, even when the internal battery is dead, it can download data normally;
4、Long storage time: For example, data is recorded every 15 minutes, and can be stored for 5.7 months (standard configuration).
5、Liquid crystal display and LED light double alarm mode, placed in the equipment to see flashing light, can distinguish the temperature and humidity environment inside the equipment is abnormal.
6、The whole machine circuit adopts low power consumption processing, powered by built-in industrial lithium battery. For example: The recording interval level of minutes, in the non-alarm state, the battery can last one year.
7、The recorder adopts waterproof design, with sealing rings and sealant at the joints. The waterproof IP grade reaches IP67. The recorder equipment is completely immersed in water, and water will not be immersed in the instrument.
8、Immediate start/scheduled start/manual start multiple startup options. Exquisite and compact with manual start switch function, is the best partner to do temperature and humidity verification, the whole process of recording completely effective verification data records.
Temperature |
||
Range |
-40℃～100℃ |
|
Accuracy |
±0.5℃（all process） |
|
Resolution |
0.1℃ |
|
Sensor Type |

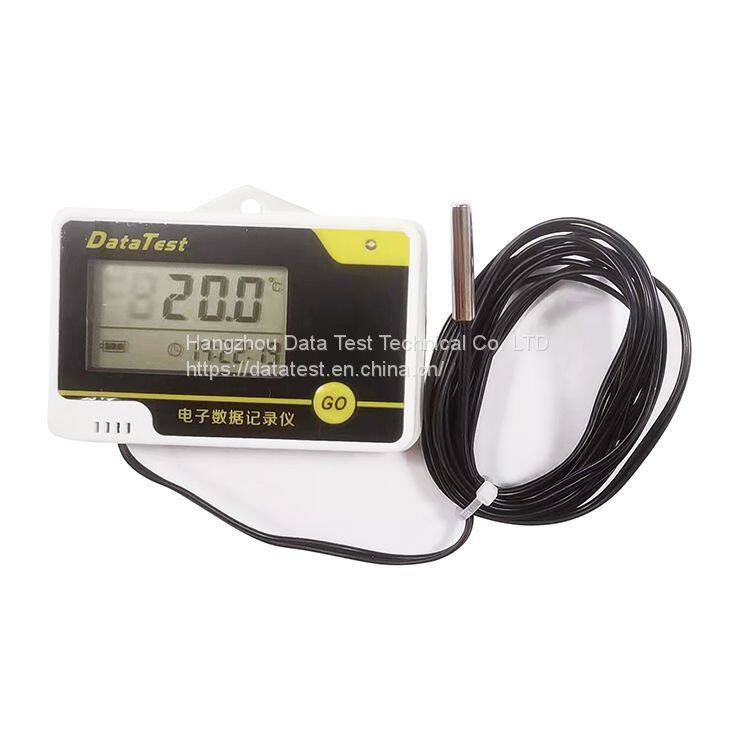

High Quality NTC （External Sensor) Probe line:2m |
|
Recorder Capacity |
32000Pieces |
|
Internal |
The shortest recording interval is 1 second, and the sampling recording interval can be set in seconds, minutes, hours or days. |
|
Display Refresh |
Real-time/Synchronous |
|
Start |
Start Now/Time Start/Manual Start |
|
Stop |
Until full/FIFO/times stop/timed end |
|
Alarm |
· "LCD prompt" plus "LED flashing" plus "buzzer alarm" |
|
Power |
· 3.6V Industrial lithium battery, Life span more than one year |
|
Recorder Soft |
Simplified Chinese, traditional Chinese, English version |
|
Communicating |
Integrated USB data cable |
|
Support System |
Windows@ 98 / 2000 / XP / 2003 / Vista / Win7 / Win8 |
|
Size |
L83×S52×H22 mm |
|
Waterproof Level |
· IP67（In a certain period of time, completely placed in water, water does not immerse the equipment) |
|
Work Environment |
||
45mm×25mm |
||
Appendixes:
Temperature recorder (including sensor, lithium battery), recorder software, operation instructions, etc.
