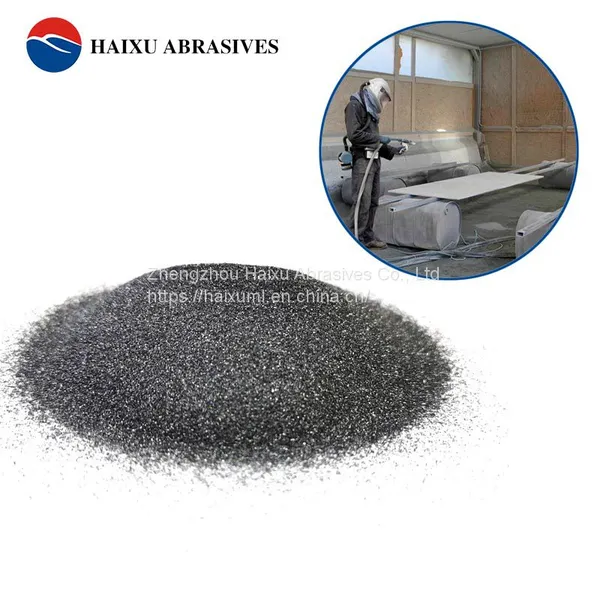

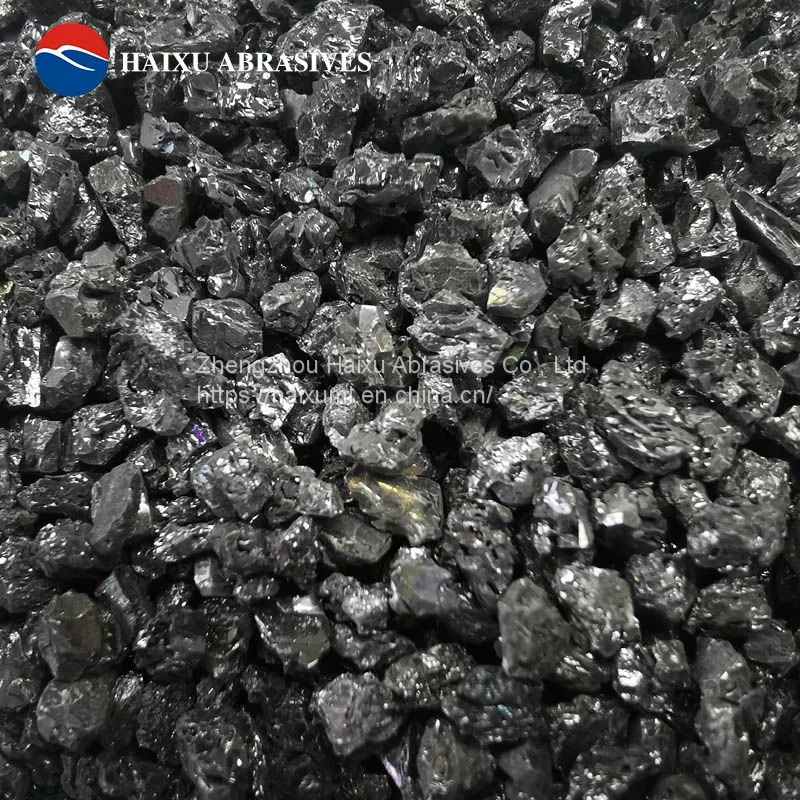

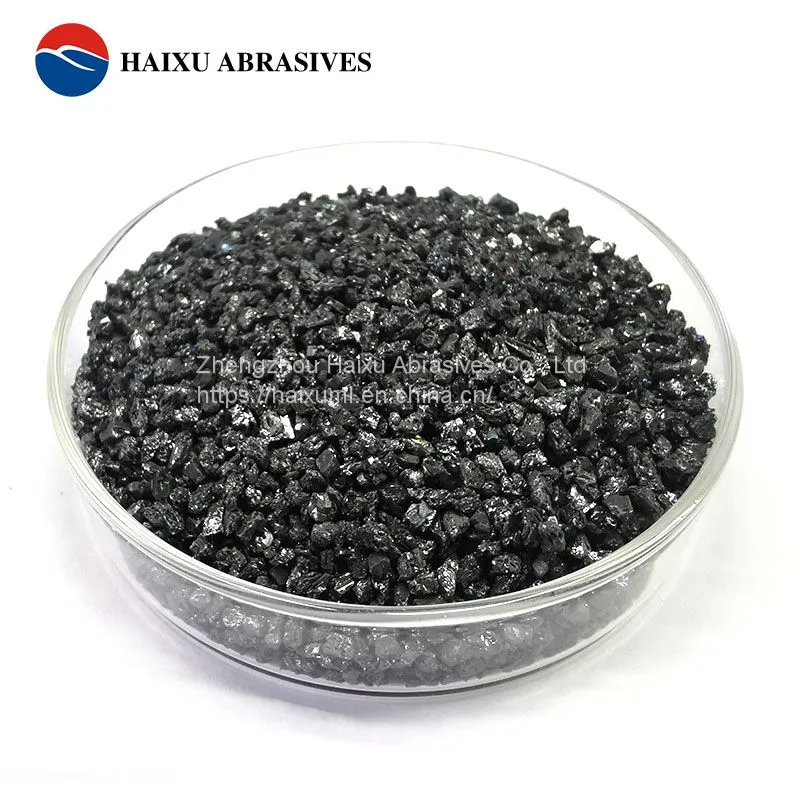

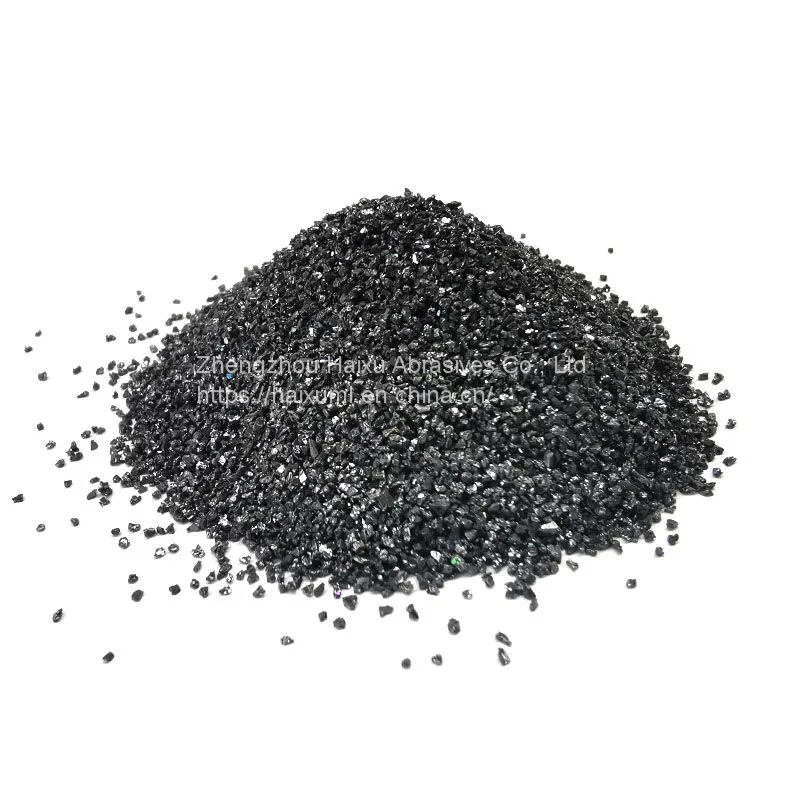

High quality black silicon carbide grain F20 F24 mesh for semiflex grinding wheel
Description：
99% SiC black silicon carbide grit produced by a premium reshape milling process. Then the material is washed by acid and fully cleaned by water. So there is much less dust in the grits. In the meantime, it get higher bulk density. That type of black silicon carbide grit is suitable for making abrasive wheels.
High quality black silicon carbide grain F20 F24 mesh for semiflex grinding wheel Properties:
High cleanness with few dust.
High bulk density.
High SiC purity up to 99%.
High hardness, retaining hardness and high wear resistance.
Excellent thermal shock resistance with high thermal conductivity and low linear thermal expansion.
Good particle distribution.
Good ability to withstand the strongest alkalis and acids.

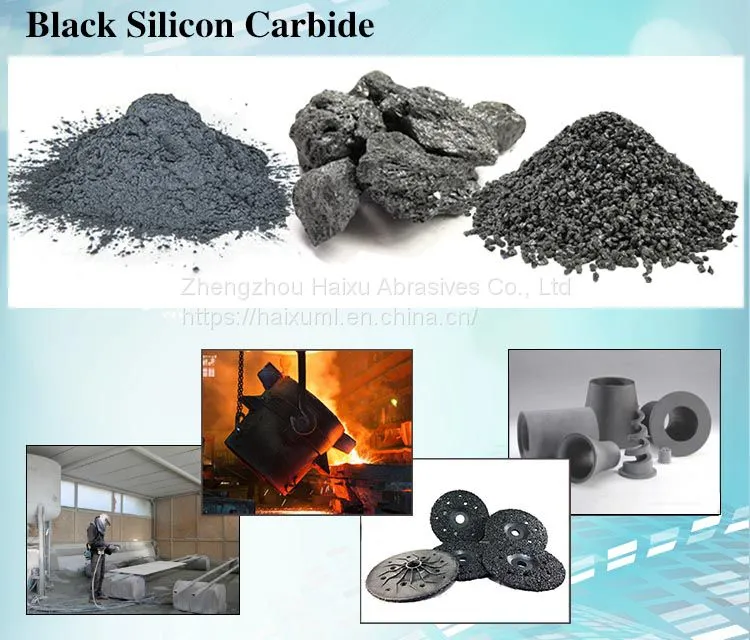

High quality black silicon carbide grain F20 F24 mesh for semiflex grinding wheel Applications:

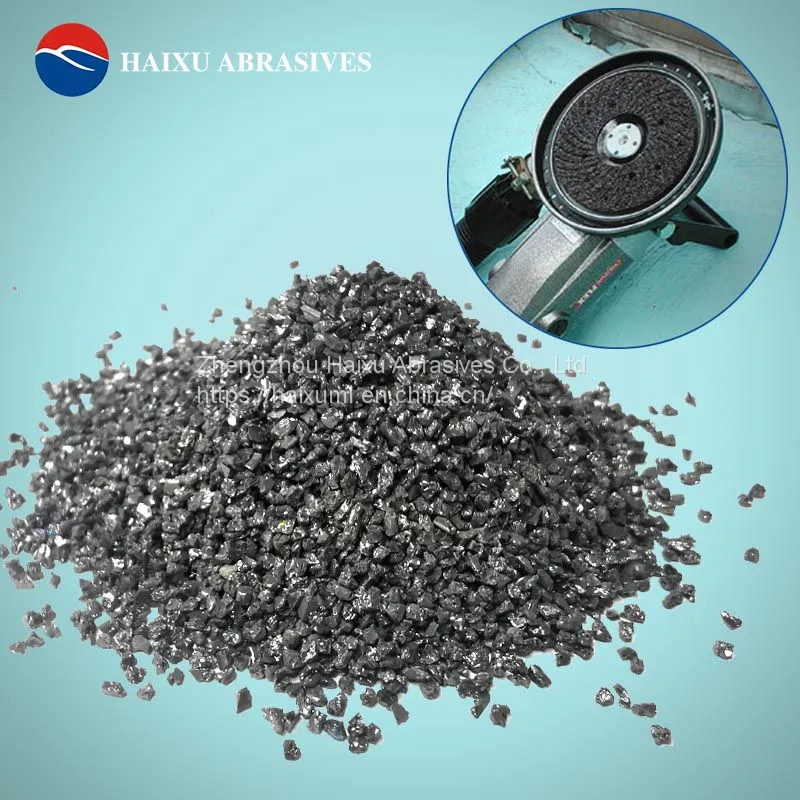

Semiflex grinding wheel for marble.
Vitrified grinding wheel and SiC cup grinding disc.
Brush buffing wheel.
Nylon polishing wheel for paint remove.
Black silicon carbide Sanding wheel.
Fiber grinding disc.
High quality black silicon carbide grain F20 F24 mesh for semiflex grinding wheel TYPICAL CHEMICAL ANALYSIS
SiC |
≥99% |
SiO2 |
≤0.5% |
Fe2O3 |
≤0.2% |
F.C |
≤0.2% |
Magnetic content |
≤0.01% |
TYPICAL PHYSICAL PROPERTIES | |
Hardness: |
Mohs:9.2 |
Cleanness: |
Min 95% |
Melting Point: |
dissociated at about 2300 °C |
Maximum service temperature: |
1900℃ |
Specific Gravity: |
3.2-3.45 g/cm3 |
Bulk density(LPD): |
1.2-1.6 g/cm3(depends on the size) |
Color: |
Black |
Particle shape: |
Hexagonal |
Modulus of Elasticity |
58-65x106 psi |
Coefficient of Thermal Expansion |
3.9-4.5 x10-6/ ℃ |
Thermal Conductivity |
71-130 W/MK |
Available sizes:
F-macrogrits sizes | ||
Grit designation |
Mean diameter in um |
Bulk Density(g/cm3) |
F24 |
745 |
1.59-1.63 |
F30 |
625 |
1.57-1.61 |
F36 |
525 |
1.58-1.60 |
F40 |
438 |
1.57-1.63 |
F46 |
370 |
1.58-1.62 |
F54 |
310 |
1.56-1.61 |
F60 |
260 |
1.55-1.60 |
F70 |
218 |
1.52-1.57 |
F80 |
185 |
1.57-1.61 |
F90 |
154 |
1.53-1.57 |
F100 |
129 |
1.50-1.55 |
F120 |
109 |
1.46-1.52 |
F150 |
82 |
1.48-1.51 |
F180 |
69 |
1.44-1.48 |
F220 |
58 |
1.42-1.47 |
