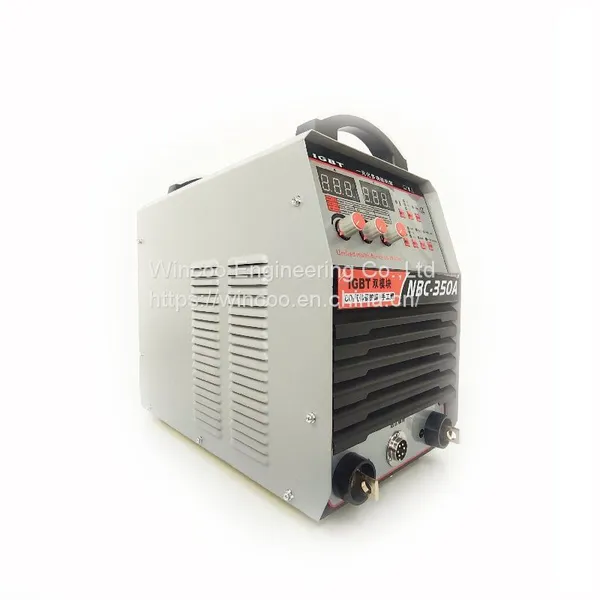

New IGBT Module Digital CO2 NBC MIG 500A Separate Wire Feeder MIG Welder Welding Machine NBC 350

New IGBT Module Digital CO2 NBC MIG 500A Separate Wire Feeder MIG Welder Welding Machine NBC 350 thumbnail-1
New IGBT Module Digital CO2 NBC MIG 500A Separate Wire Feeder MIG Welder Welding Machine NBC 350 thumbnail-2
New IGBT Module Digital CO2 NBC MIG 500A Separate Wire Feeder MIG Welder Welding Machine NBC 350 thumbnail-3
New IGBT Module Digital CO2 NBC MIG 500A Separate Wire Feeder MIG Welder Welding Machine NBC 350 thumbnail-4
New IGBT Module Digital CO2 NBC MIG 500A Separate Wire Feeder MIG Welder Welding Machine NBC 350 thumbnail-5
New IGBT Module Digital CO2 NBC MIG 500A Separate Wire Feeder MIG Welder Welding Machine NBC 350 photo-1
New IGBT Module Digital CO2 NBC MIG 500A Separate Wire Feeder MIG Welder Welding Machine NBC 350 photo-2
New IGBT Module Digital CO2 NBC MIG 500A Separate Wire Feeder MIG Welder Welding Machine NBC 350 photo-3
New IGBT Module Digital CO2 NBC MIG 500A Separate Wire Feeder MIG Welder Welding Machine NBC 350 photo-4
New IGBT Module Digital CO2 NBC MIG 500A Separate Wire Feeder MIG Welder Welding Machine NBC 350 photo-5
US$ 517 - 520 MOQ: 1 Piece
Key Specifications
Get Latest Price
After-sales Service Provided:
Engineers available to service machinery overseas
Contact Supplier Request Quote Chat Now
Wincoo Engineering Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
After-sales Service Provided Engineers available to service machinery overseas
WINCOO ENGINEERING CO.,LTD
We are engaged in providing inverter welding machine, such as MMA/SAMW welding machine, ARC welder, TIG/MMA2 in 1 welder , MMA,MIG,MAG,TIG 4 in 1 machine, Inverter plasma cutter welding machine, air compressor built-inside plasma cutter.Most of our products are got CCC, CE, EMC, SAA and UL, RoHS certificate.
1. Suitable for CS, SS
2. Cost saving and efficiency improving
3. With wire feeding machine, and easy and considerable for operation
4. High welding speed, high arcing success rate
5. Continuous and discontinuous welding function
6. Automatic voltage pulsation compensation capability
7. Suitable for carbon steel, alloy steel, soft steel, etc, and various wire
8. Little spatter, uniform welding pool, good welding shape.
Model
NBC-500A
Rated input voltage(V)
3-380V+10%
Frequency(Hz)
50/60
Rated input capacity(KVA)
27.3
No-load voltage(V)
21-52
Output current range(A)
500
Duration rate(%)
35
Current range(A)
50-500
Rated output voltage(V)
18-39
Insulation class
F
Protection level
IP21S
Weight(kg)
35
Dimensions(W*D*H)(mm)
580*330*620
Package size(W*D*H)(mm)
630*370*710
All models of this type machine
Model
NBC-500A
NBC-350A
NBC-270A
Rated input voltage(V)
3-380V+10%
3-380V+10%
220-380V+10%
Frequency(Hz)
50/60
50/60
50/60
Rated input capacity(KVA)
27.3
13.2
9
No-load voltage(V)
21-52
19.5-40
18-34
Output current range(A)
500
350
270
Duration rate(%)
35
35
35
Current range(A)
50-500
50-350
50-270
Rated output voltage(V)
18-39
17-32
16.5-26.5
Insulation class
F
F
F
Protection level
IP21S
IP21S
IP21S
Weight(kg)
35
11.5
25
Dimensions(W*D*H)(mm)
580*330*620
540*290*520
500*290*490
Package size(W*D*H)(mm)
630*370*710
600*360*580
600*330*510
Company manufacturing center
Showroom
Welding station
Testing
Assembling
Loading testing
Loading test machine
Aging test
High and low temperature tester and multi test center
Finished product
Packing
Our company is located in Nanjing who was the ancient capital city of six different dynasties before. Now it is well-known cultural and tourist city in China. It needs only around 1 hour from Shanghai by High speed train.
We have three share joint factories located in Taizhou and Linyi. We supply different kinds of inverter welding machine such as MMA/ARC welder, MIG/MAG WELDER, TIG WELDER, Plasm cutting power source approved by CSA, CCC, CE and other certificates.
1.These welders can be from 100 Ampere to 1000 Ampere, from home DIY use to Industry use, from single function welding process to multifunction welding process, with reliable quality and favorable price. We deliver consistent quality from our ISO9001 certified manufacturing facilities for each client, each order.
2.In terms of productivity, taking an order of 10 thousand pieces of welders for example, we can finish manufacturing in 3 days.
3.We accept small orders, we cherish and appreciate any of your inquires. Each machine before delivery will be tested at least three times to ensure the quality.
4.We can provide 12 months warranty for whole machine, 18 months for the main board, full life technical support and after sale service.
5.We are able to provide online demonstration to show the performance before proceeding your procurement, online videos showing during production and packing, online technical support after sales.
WINCOO'S Culture to client is:To provide more favorable and reliable welders is WINCOO's unremitting pursuit of the goal.Win based on Cooperation is our business philosophy,Positive and Active response is our attitude,Consideration on behalf of client is our ethic and responsibility,Support client to succeed is our purpose,Mutual benefit is our win-cooperation expectation.To Wincoo ourselves is:Integrity, generosity, intelligence and inclusiveness are our characters. Foresight and pragmatism are our qualities. Loyalty, responsibility and ambition are our basic requirements. The secret of development is to beat expectations.Success is determined by these three factors: people, people and people.The absence of ethics negates everything. Integrity is essence. Communicate openly and frankly.United we triumph. Passionately begun, halfway done. Growth is a process of overcoming adversities.Be curious. Be grateful.Execution without any excuses.
We sincerely expect your inquiry, visit and inspection, and deeply hope to be your long time reliable partner in China.
1. Who are we?
We have 3 share joint factoys in China with total around 10000 square meters with more than 150 peoples.We provide MMA/ARC welder, MIG/MAG WELDER, TIG WELDER, air compressor built-in Plasma cutting power source.
2. What do we manufacturing?
We're mainly producing Inverter Welding Machine of MMA welders from 100 Amp to 500Amp (DIY or Industry purpose),TIG welders from 150Amp to 300Amp, (DC or AC/DC),MIG/MAG welders from 120Amp to 500A, (Gas or Gasless),Air Plasma Cutter from 40Amp to 120Amp, (Pilot or HF arc strike).
3. How can we guarantee the quality?
We can provide 12 months warranty for whole machine, 18 months for the main board, f. Meanwhile, we offer whole life on-line technical supports for operating guide and troubleshooting.
4. How to place order? I haven't done business with you guys before,how can i trust your company?
We are able to provide online demonstration to show the performance before proceeding your procurement, online videos showing during production and packing, online technical support after sales.You may place order online through alibaba, it is safe for your money.
5, How to inspect?
Weclome your third party or SGS or your friend to come an inspect before delivery.
5. Why choose us?
*OEM/ODM is available.
*Small order is acceptable, even 1 piece;
*Quick Delivery is available in 15 days;
*12 months machine warranty, 18 month main borad warranty, whole life technical support and after sale service;
*Has strong will of developing local agent or distribitors with your own brand;
*Provide online demonstration before order, online video during production and packing, video support after sales;
*Provide free cover design service(Your own brand).
