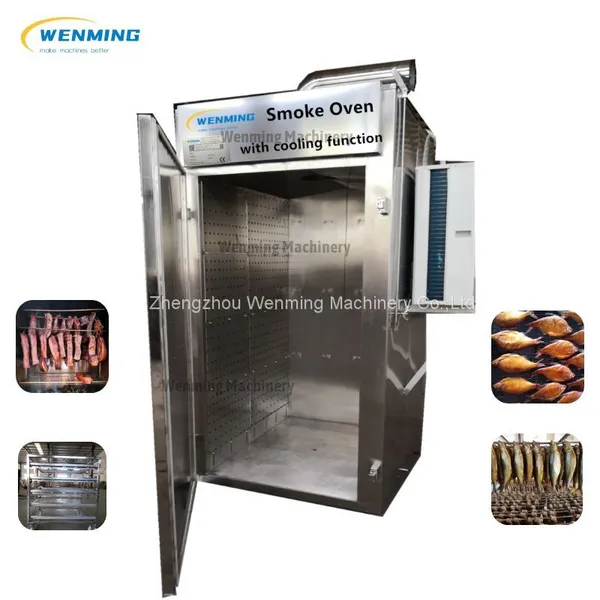

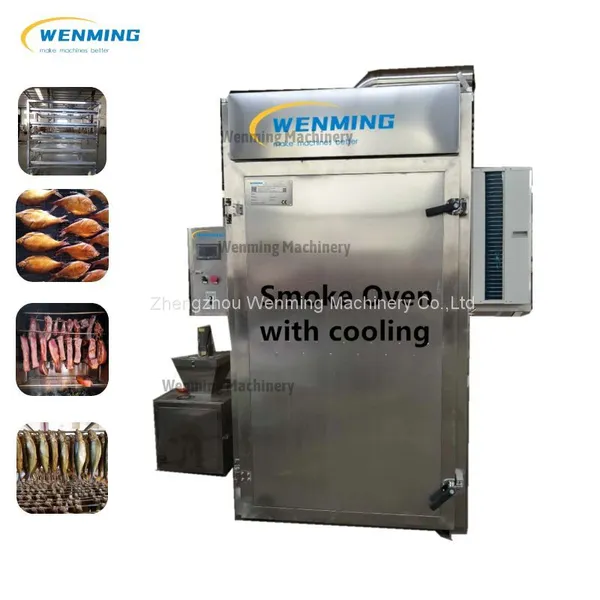

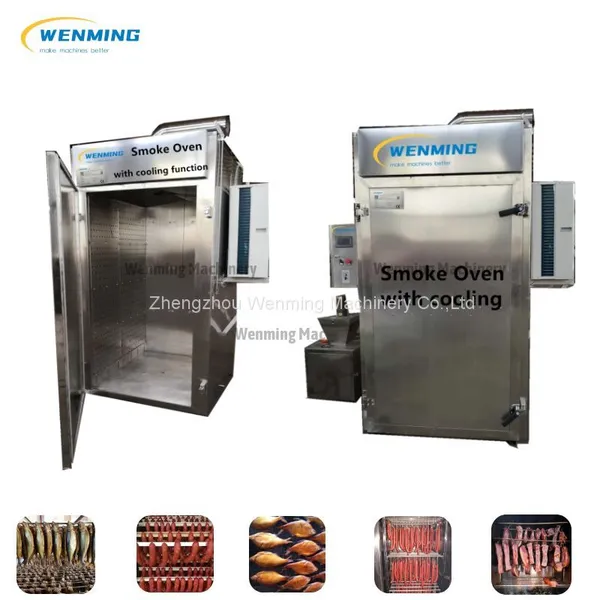

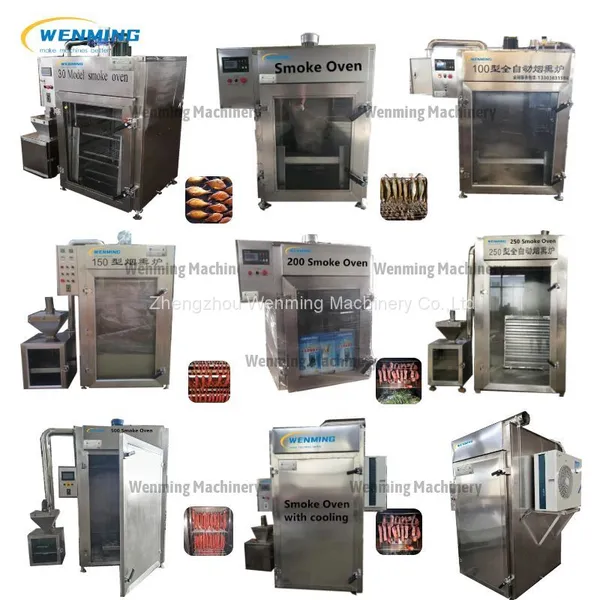

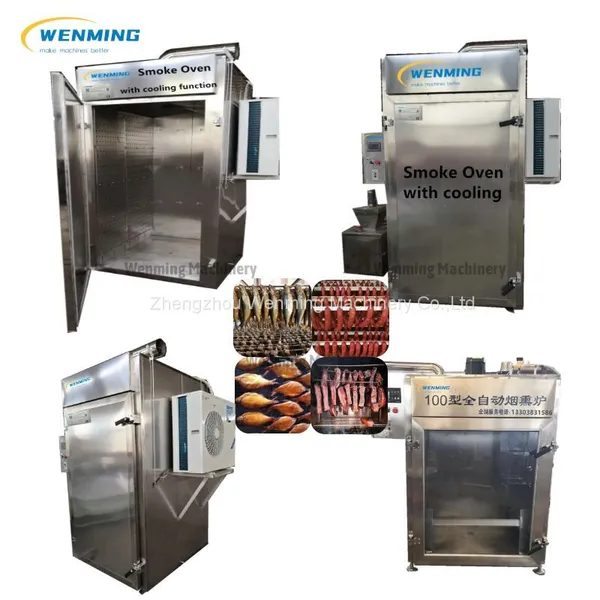

Smoke Oven is design for sausage, ham, sausage, chicken, fish, duck and poultry, aquatic products and other smoked products. This smoke oven do Cooking, drying, coloring at same time. After this smoking oven， smoked meat, sausge, fish has good color, tastes better, quality assurance, excellent technology. After smoking, the color of the food is good looking, there is a smoked scent, not greasy feel, can achieve environmental effects, completely replace the traditional smoked furnace, save labor and improve work efficiency, but also enhances the taste of food and elastic. This smoke oven is with automatic programmable control, simple and easy to operate, has the function of Cooking and baking smoke colour. This Smoke Oven is made of 304 stainless steel, with computer touch screen type. With setting the time and the temperature, it will alarm automatic when finish the processing.
2.Technical parameters
Model |
WM-YXL30 |
WM-YXL50 |
WM-YXL100 |
Capacity (kg/oven) |
30-50 |
50-70 |
100-150 |
Electric heating power (kw) |
6.62 |
7.62 |
11.62 |
Hanging car size (mm) |
900*1000*1300 |
910*820*1010 |
1000*960*1200 |
Layer |
3 |
4 |
5 |
Working space (mm): |
850*740*920 |
950*830*1070 |
1060*1000*1270 |
Cabient size |
1300*1050*1650 |
1000*1100*1460 |
1120*1320*1500 |
Machine dimensions (mm) |
1000*1650*1600 |
1100*1750*1760 |
1200*2030*1900 |
Smoke generator Type |
Built in or Built out optional |
||
Smoking Type |
Hot smoked （also can adding cooling part to do cold smoked ,cost increase ） |
||
Adding steam heating |
Can add steam heating.（cost increase ） |
||
Model |
WM-YXL150 |
WM-YXL200 |
WM-YXL250 |
Capacity (kg/oven) |
150-200 |
250-300 |
500-600 |
Voltage |
380V/50Hz |
||
Electric heating power (kw) |
11.62 |
14.89 |
14.87 |
Hanging car size (mm) |
1000*960*1400 |
1000*1135*1800 |
1000*1000*1860 |
Layer |
6 |
7 |
7 |
Working space (mm): |
990*990*1590 |
1120*1070*1990 |
2100*1060*1990 |
Cabient size |
1120*1320*1800 |
1220*1505*2200 |
1220*1505*2530 |
Machine dimensions (mm) |
1200*2030*2200 |
1370*2310*2500 |
1370*2310*2900 |
Smoke generator Type |
Built in or Built out optional |
||
Smoking Type |
Hot smoked （also can adding cooling part to do cold smoked, cost increase ） |
||
Adding steam heating |
Can add steam heating. （Cost increase ） |
||
Model |
WM-YXL500 |
WM-YXL750 |
WM-YXL1000 |
Capacity (kg/oven) |
500-600 |
1000 |
1000 |
Voltage |
380V/50Hz |
380V/50Hz |
380V/50Hz |
Electric heating power (kw) |
28.87 |
40.87 |
53.87 |
Hanging car size (mm) |
1000*1000*1860 |
1000*1000*1860 |
1000*1000*1860 |
Layer |
7 |
7 |
7 |
Working space (mm): |
2270*1505*2530 |
3320*1505*2530 |
4110*1350*2000 |
Cabient size |
4370*1505*2530 |
4370*1505*2530 |
4370*1505*2530 |
Machine dimensions (mm) |
2420*2310*2900 |
3470*2310*2900 |
4520*2310*2900 |
Smoke generator Type |
Built in or Built out optional |
||
Smoking Type |
Hot smoked （also can adding cooling part to do cold smoked, cost increase ） |
||
Adding steam heating |
WM-YXL500 can add steam heating. Cost increase ，others too big，you can connect your steamer. |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Smoke Oven Video:
https://youtu.be/5Ox04tMGykk
