SMC BMC Manhole Cover Heat Forming Hydraulic Press

SMC/BMC/DMC/RESIN material heat forming press machine

manhole cover heat molding hydraulic press power heating press machine

heat formming hydraulic press 315 ton

usage:
SMC/BMC/DMC manhole cover / panel / board heat molding

heating type;
power heating / oil heating machine

control:
heating time/ heating tempreture / press holding time

Relevant production equipment:
Raw material mixer (used for making raw materials)


Machine type:
Conventional models - economical and practical
Servo system - energy saving and noise reduction,intelligent and efficient

BMC composite materials can be made from raw materials or finished products (short storage period).
The raw material formula can be provided by our mold engineer after paymentGenerally, there are two kinds of well covers with and without reinforcement bars
The former can be used in roads and other load-bearing positions, while the latter is generally used in green belts, courtyards, gardens and other placesThe total weight of the machine 315ton model is about 11 tons, and the installation space is 3 * 2 * 4.5m (4.5m height)
22kw motor for press machine,The motor drives the main engine to work

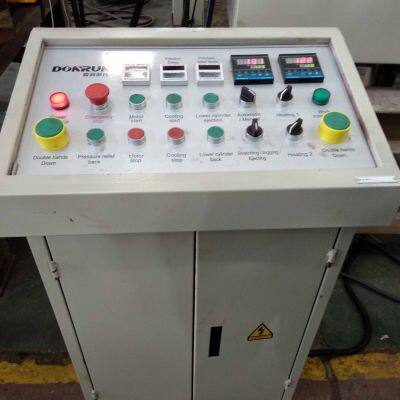

The heating system is also controlled in the console, and the heating time and temperature can be set.The general production setting is that the machine is preheated for 10 minutes after starting up, and then it starts to use.
According to the thickness of the product, the heating time is slightly different, which takes about 5 minutes on average.
One cycle takes about 10 minutes, including loading, pressing and removing the raw materials.The base and cover plate are made by a set of mould respectively.According to the different thickness, different filling reinforcement materials, the weight difference between the finished products is very large.
You can find useful references on the special sales website.

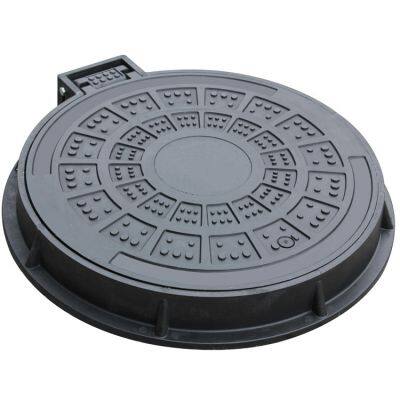

manhole cover production shot

more heat molding product usage
