Home > Transportation > Parking > Vertical Parking System > Hot Sale! 3 Level Warehouse Car Storage Device/Car Storage Organizer/Four Post Car Lifter/Car Parking Manufacturer

Hot Sale! 3 Level Warehouse Car Storage Device/Car Storage Organizer/Four Post Car Lifter/Car Parking Manufacturer

Qingdao Shitai Maoyuan Trading Co.,ltd
Hot Sale! 3 Level Warehouse Car Storage Device/Car Storage Organizer/Four Post Car Lifter/Car Parking Manufacturer thumbnail-1
Hot Sale! 3 Level Warehouse Car Storage Device/Car Storage Organizer/Four Post Car Lifter/Car Parking Manufacturer photo-1
US$ 3900 - 4200 MOQ: 3 Sets
Key Specifications
Get Latest Price
Brand Name:
STMY
Place of Origin:
China
Model Number:
QDMY-2-1P
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao, China
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name STMY
Place of Origin China
Model Number QDMY-2-1P
Type Parking Lift
Warranty 12



Brand Name STMY
Model No. QDMY-2-1P
Type

 Four Post Tripple Parking Lift

Mode of Operations Manual Buttons /Keys
Car Capacity

 ≤2700kgs; 3600kgs

Mode of drive

 Hydaulic & Wire Rope

Unlock method

 Electric

Post Height

 Customized

Warning device

 Yes
Safeguard device

 Whole process protection and anti-falling device

Rise Time  50s
Fall Time 40s
Work Noise <65dB ( A )
Power

 110-415V, 1 or 3 Phases

Oil Trays

 8 pieces
Treatment

 Powder Coating (color optional)

HS Code

 84289020

Certification ISO9001 and CE



Descriptions:

1. Storage parking system, mostly used for new cars or cars not move frequently

2. The 2 platforms can be overlapped, the column can be shared upon the parking space, more economical and safer

3. With front ramp and rear ramp, both front and rear direction can be used for cars driving in or out. numerous lines of this equipments can be installed together, only one access for cars driving in or out, which saves the ground space

4. Simple transmission structure, platform is lifted by steel cable which is connected to four corners of platform

5. Screw structure joint of steel cable connects to the platform, maintenance personnel can adjust the balance of cables conveniently

6. With two stages lock system, automatic lock for every platform, which prevent the upper platform to touch the below car

7. One unlock handle to release every platform

8. The cylinders have the pour rumsfeld device, which protects the cylinders, more safer

9. Mold machining through the whole process so that the parts are universal and interchangeable

10. Pass 120% capacity dynamic load text and 150% static load test.

11. Italian oil seal to make sure no oil leakage, inner anti-explosion valve in case of platform drop

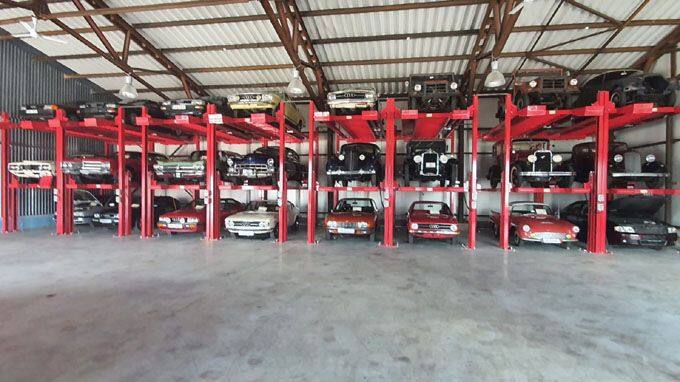

Pictures:

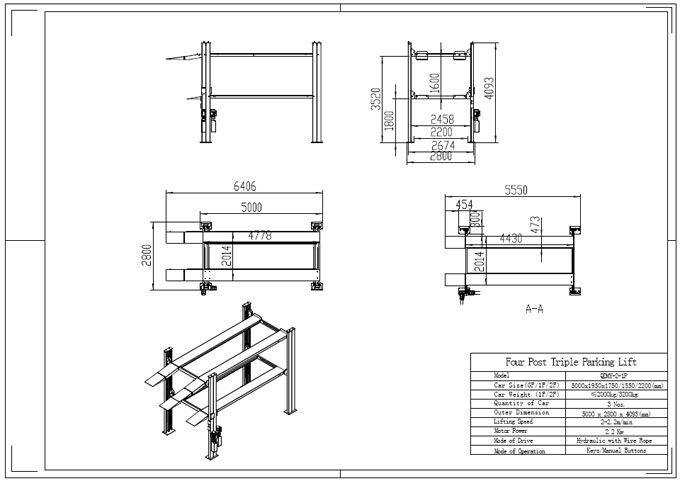

Drawings:



Important Remarks

1. We give 8 nos. of oil trays for free.

2. If add galvanized wave plate in the middle part, each set needs to add +USD400.

3. If add side protection baffles at both side runways, each set needs to add +USD200.

4. This model is automatic release.

5. The dimension can be customized.


FAQ

1. What trade term you can accept?
---FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).

2. What payment term can you accept?
---100%TT in advance for sample order (1-3 sets)

---30%TT in advance, and 70%TT before shipping or 70%LC at sight for full container order.

3. How about the loading information and HS Code?

---The HS code is 84289020
---4 Sets/20’GP container ; 8 Sets/40’GP container ; 12 Sets/40’HQ container


4. How about the lead time?
---20-30 days (In peak season, 45 days).
5. Can you provide OEM service?
---Yes, we can provide OEM service according to the requirement of the client.
6. Can you make design for our land?
--Yes, send me your land layout, our engineer can make design and provide the best parking solution to you and your clients;
7. Do you provide training services?
---Yes, we provide free trainning services in our factory, to teach your engineer about how to install and rountine mantenace knowledge;
8. How about the installation?
---This model of product is simple structure, usually we send installation manual to the client, and they can install it themselves.
9. What is warranty term?

---12 months for electrical parts, 5 years for mechanical structure.


10. What are the certificates?

---ISO90001 & CE.


11. Can the posts be shared?

---Yes, the posts can be shared, but price will not be cheaper, because not save any material.


12. What means columns combined?

---The big lift column and small lift column are attached with each other closely without any gap. If you need this type, contact our sales.


Note: For more questions, send email to: victoria.zhang@qdmy-parking.com
