Hot Sale! 4 Column Car Stacker/Four Post Car Storage Lift/4 Post Car Parking System/Twin Stacker Parking Lifts Car Park System
- Qingdao, China
- T/T L/C D/P D/A PayPal
- 30 days
You May Like
-
Suppying 4 Cars Four Post Parking Lift/Four Post Car Storage Lift/Double Parking Car Lift/Double Deck Car Parking
-
Hot Sale! Triple Stacker Parking Lift/Cantilever Car Parking Lift/Platform Car Parking Lifts/3 Level Parking Lift
-
Hot Sale! Triple Stacker Parking Lift/Platform Car Parking Lifts/3 Level Parking Lift/Hydraulic Garage Car Lift
-
Hot Sale! Triple Stacker Parking Lift/3 Level Parking Lift/Hydraulic Garage Car Lift/Multilevel Car Parking in China
-
Triple Stacker Parking Lift/3 Level Parking Lift/Hydraulic Garage Multilevel Car Parking/Triple Car Stacker in China
-
3 Level Parking Lift/Triple Car Stacker/Triple Stacker Parking Lift/Multilevel Car Parking in China
Product Details
| Brand Name | STMY | Place of Origin | China | |
| Model Number | QDMY-608D | Type | Parking Lift | |
| Warranty | 12 |
Product Description
| Brand Name | STMY |
| Model No. | QDMY-608D |
| Type | Four Post Double Wide Parking Lift |
| Mode of Operations | Manual buttons / Keys |
| Car Capacity | ≤1600kgs; 2000kgs |
Mode of drive | Hydraulic |
| Car Size (L×W×H) | 5000mm×1850mm×1550mm |
Lifting Height | 2000mm |
Warning device | Yes |
| Safeguard device | Hydraulic whole protection and anti-fall lock devices |
| Rise Time | 50s |
| Fall Time | 40s |
| Work Noise | <60dB ( A ) |
| Voltage | 110-415V, 1 or 3 Phases |
| Motor Power | 2.2KW |
| Maximum Working Pressure | 16 MPa |
| HS Code | 84254290 |
| Modes of operation | High-grade anti-corrosion paint |
| Color | Black, Red, Blue, Grey, Yellow etc. (Customized) |
| Certificate | ISO9001 and CE |
Working Principle:
This four post double lift including 4 car spaces. The upper level two car spaces are united as a whole unit and can be lifted up and down together. The bottom level cars can go in and out directly. When the spaces in the bottom level are spared, the spaces in the upper level will be lifted down to ground. Then the cars will go out and in freely.
Description:
1. Good choice for parking and simple repair
2. Hydraulic driven, cable lifting system
3. Manual or electric single point release
4. Automatic lock system ensure safety in different heights
5. Maintenance free load bearing
6. Immovable runway
7. Stop blocks in all posts for added safety
8. Moveable drip trays prevent pollution of vehicle on floor
9. Caster kit for moving the lift easily
10.Mold machining through the whole process so that the parts are universal and interchangeable
11.120% capacity Dynamic load text and 150% static load test
12.Italian oil seal to make sure no oil leakage
13.Electromagnetic valve with urgent manual drop function
14.Optional Manual pump for lock release in case of power off.
15.Optional 24V Control box and Electromagnetic valve

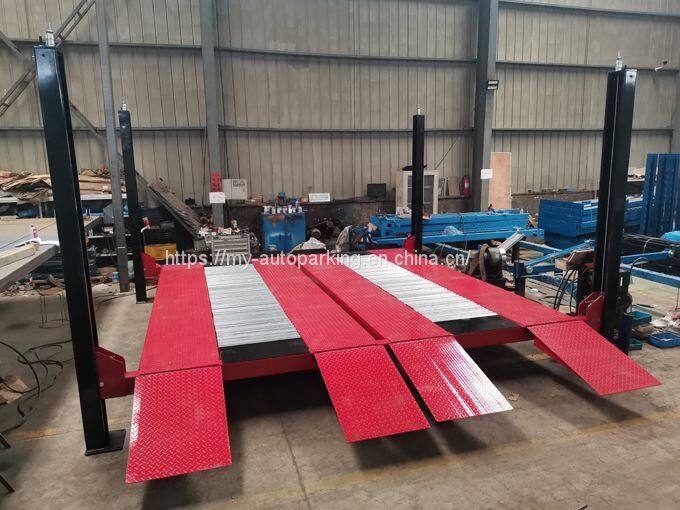

Pictures:
Structure and Dimensions:
QDMY-608D 1600KG
QDMY-608D 2000KG
Important Remarks for QDMY-608A & QDMY-608B
1. We give 4 nos. of iron trays for free.
2. If add galvanized wave plate in the middle part, each set needs to add +USD300.
3. If add side protection baffles at both side runways, each set needs to add +USD100.
4. This model is automatic release.
5. The dimension can be customized.
FAQ
1. What trade term you can accept?
---FOB, CFR, CIF, EXW, FCA. (If you want check the shipping cost, tell us your nearest sea port).
2. What payment term can you accept?
---100%TT in advance for sample order (1-3 sets)
---30%TT in advance, and 70%TT before shipping or 70%LC at sight for full container order.
3. How about the loading information and HS Code?
---12 months for electrical parts, 5 years for mechanical structure.
---ISO90001 & CE.
