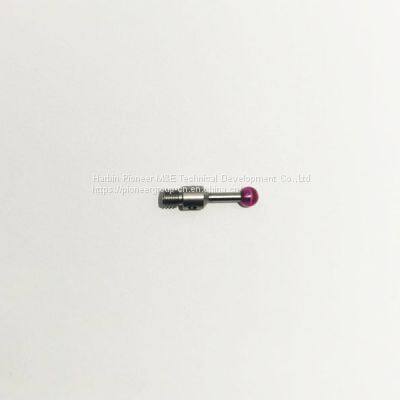

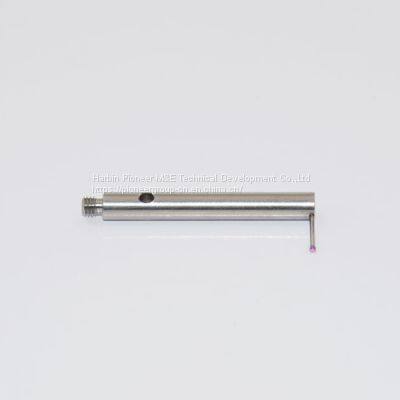

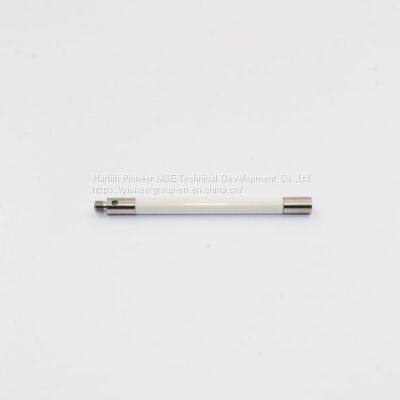

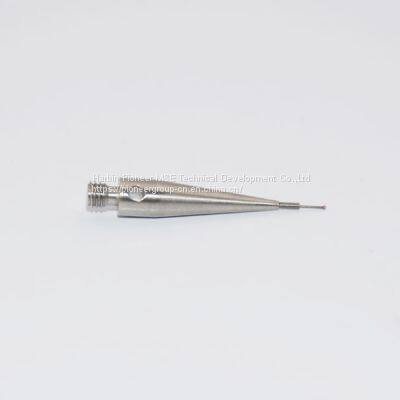

M3 screw CMM probe stylus usually used for coordinate measuring machine probes and flexible scanning probes. The M3 screw CMM probe stylus has many different types, varying in size and material. The stylus ball material has ruby, silicon nitride, irconia and tungsten carbide. The following shows some of the M3 screw stylus. You can download our stylus brochure or contact us to get more information.
M3 screw CMM probe stylus usually used for coordinate measuring machine probes and flexible scanning probes. The M3 screw CMM probe stylus has many different types, varying in size and material. The stylus ball material has ruby, silicon nitride, irconia and tungsten carbide. The following shows some of the M3 screw stylus. You can download our stylus brochure or contact us to get more information.
L1 Overall length
L2 Effective working length
D1 Ball diameter
Ø =4mm（M3）
Overall length L1
It is measured from the rear mounting face of the stylus to the center of the ball.
The effective working length L2
This is measured from the center of the ball to the point at which the stem will foul against the feature when measuring 'normal' to the part.
If you want to know which type of probe system is used in cmm, please visit our website.
As a probe manufacturer, we have types of touch probe sensor for sale, if you have needs, please contact us.
