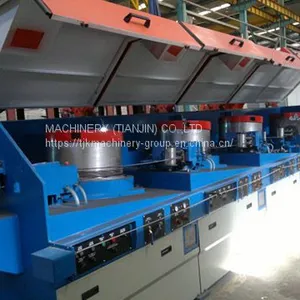

More Detail Wire Drawing Machine LZZ-4-560
Technical Data of Wire Drawing Machine LZZ-4-560
TECHNICAL CHARACTERISTICS |
||
Power supply voltage |
380 [V] – 60 [Hz] |
|
Installed power |
200 [KW] |
|
Air |
Consumption (filtered, dried, no water, no oil) |
0.5 [m3/min] |
Operational pressure (constant) |
0.6Mpa |
|
Water |
Consumption (clean, filtered, no residues, no calcium, no deposits) |
30 [m3/hr] |
Min. pressure (constant) |
0.3Mpa |
|
Max. temperature at inlet |
30 [°C] |
|
Ambient conditions |
Temperature |
0 – 40 [°C] |
Altitude |
||
MATERIAL CHARACTERISTICS |
||
Raw material type |
Hot rolled low carbon wire rod |
|
Coil dimension |
Inner diameter |
Min 850 [mm] |
Outer diameter |
Max 1250 [mm] |
|
Height |
2500 [mm] |
|
Coil weight |
Max 2,500 [Kg] |
|
Wire rod inlet tensile stress |
Min 440 [N/mm2] |
|
Wire rod inlet diameter |
5.5 – 8.0 [mm] |
|
FINISHED PRODUCTS CHARACTERISTICS |
||
Production rate |
Max 6 [m/sec] |
|
Finished products type |
Cold drawing wire coil |
|
Coil dimension |
Inner diameter |
Min 500 [mm] |
Outer diameter |
Max 1100 [mm] |
|
Height |
490 [mm] |
|
Coil weight |
Max 1,500 [Kg] |
|
Wire rod outlet tensile stress |
Min 550 [N/mm2] |
|
Wire rod outlet diameter |
3.5 – 6 [mm] |
We provide wire drawing machine video for clients, if you want to watch about it, please visit our website.
If you want to know more about bar bending wire, please contact us.
