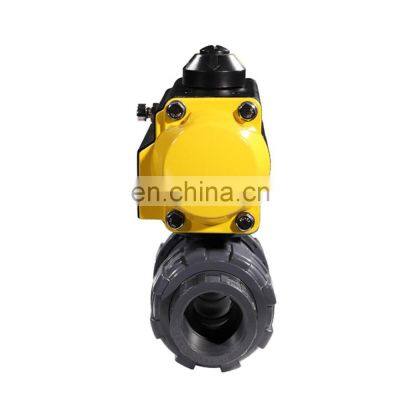

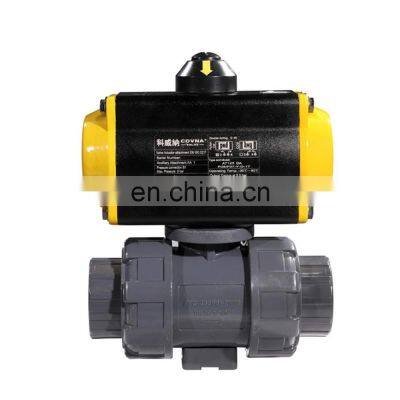

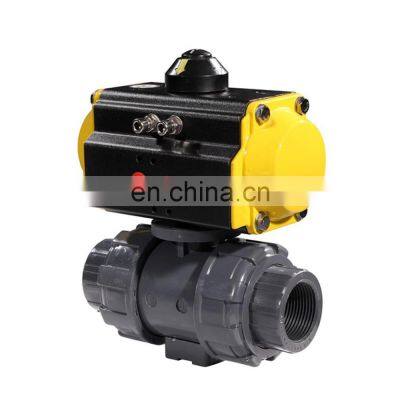

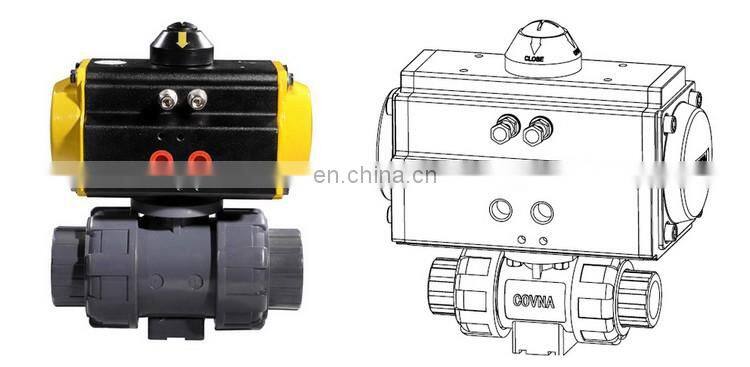

Help CenterAcid Chemical Resistant PVC Plastic Double Union Ball Valve With Pneumatic Actuator
Related Products
-
COVNA 4 Inch Cast Iron Semi ANSI Air Control Lug Butterfly Valve Water SS Disc Pneumatic Control Butterfly ValveNegotiableMOQ: 1 -
Double Acting Stainless Steel Air Water Steam Pneumatic Angle Seat Valve Air Control Angle Seat ValveNegotiableMOQ: 1
-
COVNA DN50 2 Inch 2 Way V Port Flange Type 316 Stainless Steel Single Acting Pneumatic Actuator Ball Valve Pneumatic ValveNegotiableMOQ: 1
-
COVNA DN200 8 Inch PN16 Double Flange Ductile Iron Pneumatic Actuated Powder Butterfly ValveNegotiableMOQ: 1
-
COVNA DN200 8 Inch 800LB Double Flange Type Metal Seated Forged Steel Pneumatic Actuated Ball ValveNegotiableMOQ: 1

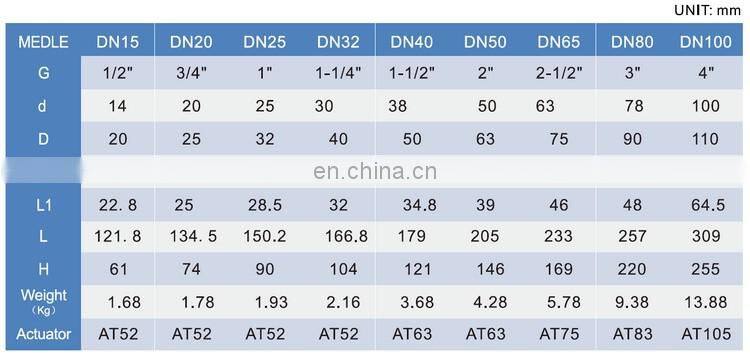

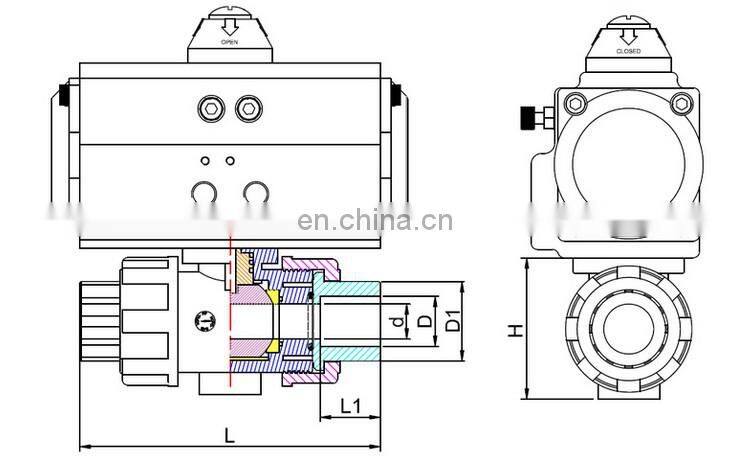

Dimension:
Principle of Single Acting Actuator (Spring Return)
CCW
Air to port A forces the pistons outwards, causing the springs to compress, The pinion turns counterclockwise while air is being exhausted from port B.
Loss of air pressure on port A, the stored energy in the springs forces the pistons inwards. The pinion turns clockwise while air is being exhausted from port A.
CW
Air to port B forces the pistons outwards, causing the springs to compress, The pinion turns counterclockwise while air is being exhausted from port B.
Loss of air pressure on port A, the stored energy in the springs forces the pistons inwards. The pinion turns clockwise while air is being exhausted from port A.
Principle of Double Acting Actuator
CCW
Air to Port A forces the pistons outwards, causing the pinion to turn counterclockwise while the air is being exhausted from Port B.
Air to Port B forces the pistons inwards, causing the pinion to turn clockwise while the air is being exhausted from Port A.
CW
Air to Port A forces the pistons outwards, causing the pinion to turn clockwise while the air is being exhausted from Port B.
Air to Port B forces the pistons inwards, causing the pinion to turn counterclockwise while the air is being exhausted from Port A.

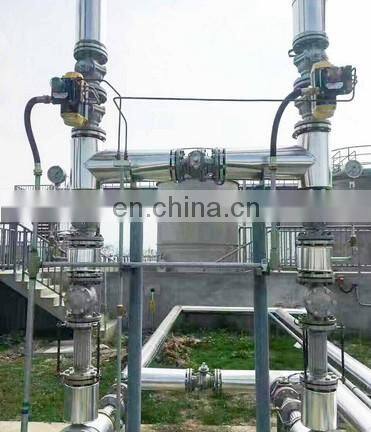

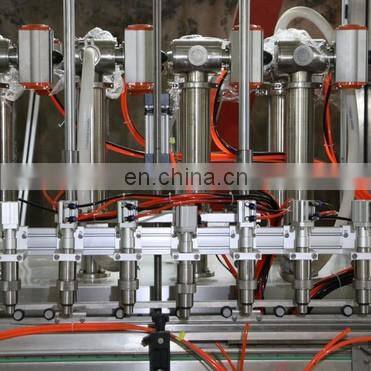

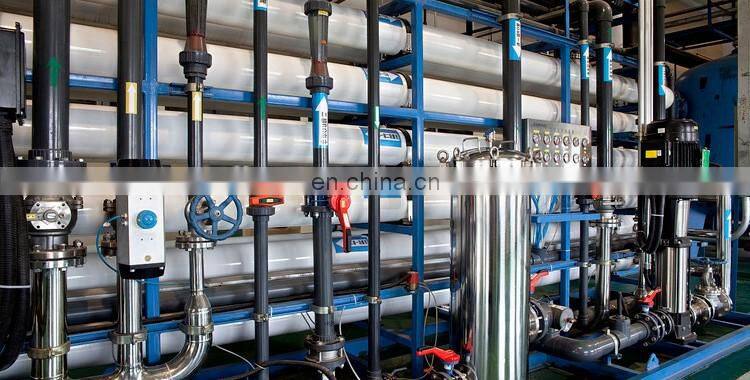

COVNA Automation is one of the professional manufacturer of automatic control valves in Dongguan, China. Our products applied for food & beverage, water & wastewater, ultra pure water, desalination, chemical, textile, transportation, pulp & paper, mining, boiler and power industries.
Outward Bound Activity
COVNA is warmly popular all over the world and it's certified by TUV, SGS, RoHS, ISO 9001 for the entire process of design and manufacture of valves.
Packing: Acid Chemical Resistant PVC Plastic Double Union Ball Valve with Pneumatic Actuator packed with foam in carton.
Delivery Time: 7 working days after payment confirmed.
Flange End Ball Valve
3 PCS Tri Clamp Ball Valve
UPVC Plastic Ball Valve
3 Way Theaded Ball Valve
Food Grade Sanitary Ball Valve
High Pressure Ball Valve
