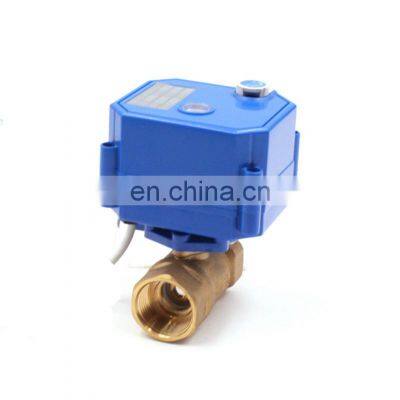

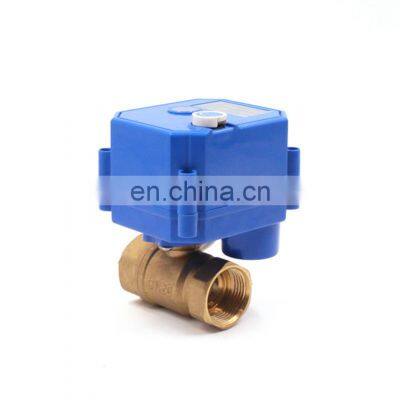

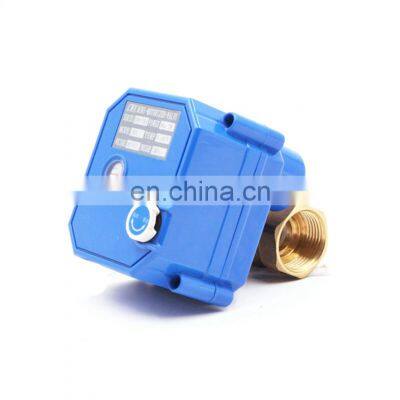

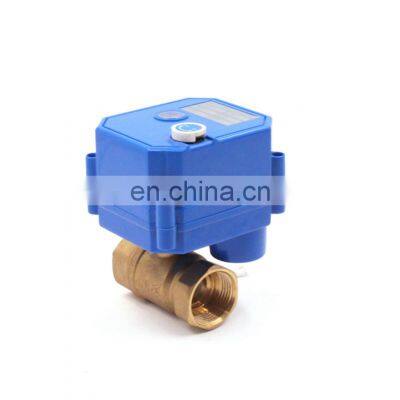

2 way CWX-25S mini electric actuator motor operated ball valve for liquid fan coil motorized valve
1.POM material gear box ;
2.Manual Override, the valve can be operated when power failure;
3.Min dimension and position indicator
4.good sealing performance, IP65 enclosure
1.Heat energy meters, fire work, save water system
2.Auto control system, industrial mini auto control equipment
3.Water saving equipment, drinking water equipment
4.Air-conditioning fan coin(HVAC)
| Product model | Rated voltage | Working current | Output torque | Open/close time | Control mode |
| CWX-25S |
DC3-6V DC12V A/DC9-24V AC220V AC85-265V |
Max80mA | Max2.5NM | <5s | CR01 CR02 CR03 CR04 CR05 |
| Working pressure | Power | Medium temperature | Size | IP Gard | Special function |
| Max1.0Mpa | <2W | 0-90℃ | DN8-32 Two-way DN8-20 Three-way | IP65 | Wireless switch control (within 200 meters) |
| Brass | Connection | Sizes | d | L | H |
| Both female thread Full-port | DN8 | 8 | 46 | 31 | |
| DN15 | 15 | 57 | 38 | ||
| DN20 | 20 | 71 | 45 | ||
| DN25 | 23.5 | 72 | 49 | ||
| Both female thread Reduce-port | DN10 | 8 | 46 | 31 | |
| DN20 | 15 | 66 | 38 | ||
| DN25 | 20 | 72 | 47 | ||
| DN32 | 25 | 86 | 60 | ||
|
Vertica Three-Way |
DN15 | 12 | 63 | 49 | |
| DN20 | 15 | 66 | 53 | ||
|
Female-male thread |
DN15 | 15 | 63 | 38 | |
| DN20 | 15 | 66 | 38 | ||
| Both male thread | DN15 | 15 | 68 | 38 | |
| SS304/316 | Both female thread | DN8 | 8 | 46 | 31 |
| DN10 | 8 | 46 | 30.5 | ||
| DN15 | 15 | 55 | 38 | ||
| DN20 | 15 | 63 | 39 | ||
| DN20 | 20 | 71 | 45 | ||
| DN25 | 20 | 75 | 47 | ||
| DN25 | 25 | 72 | 49 |
Tianjin Tianfei High-Tech Valve Co., Ltd. is a professional manufacturer of electric valve
and manual valve, is a founding company of Tianjin Valve industry.Tianfei has a professional R & D team,has won many letters of petent and the recognition of the Tianjin municipal government departments.“CWX”is our brand and our company has passed theISO9001,CE,RoHS,NSF61 certificate and so on,the products have exported to many countries and regionsworldwide.
Our company motto is novative, simplified, high-valued, As having accumulated rich experiences and resources during more than 10 years developing,
we are confident inproviding you satisfied products and service in the cooperation. Tianfei pays attention to the quality of the products,use “CWX” valve is your correct choice.
1. Are you manufacturer or trading company?
We are manufacturer, we had been produced electric valve for more than 10 years. So we have advantage in price. We also could do OEM.
2. What's the payment method?
T/T,Paypal,Western Union, Moneygram,Aliexpress, L/C ect.
3.What's your Minimum Order Quantity (MOQ)?
Our MOQ is 1piece.
4. What about the delivery time?
Sample need about 3 working days, large order delivery time will according to your quantity.
5..Would you have a discount if l have a large order?
A; Yes we could offer different discount according to your order quantity.
6.Where is the factory located?
Tianjin city and welcome to visit our factory.
Contact:
Tianjin Tianfei High-Tech valve Co., Ltd.
Address:B-5-C, NO.16 Rongyuan Road, 300384,Tianjin, China
Email :f(at)
TEL:+86-022-85685296
