Overview:

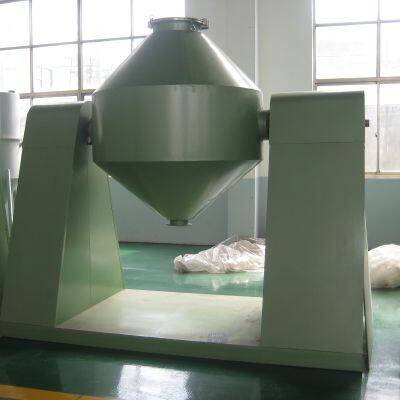

The double cone rotary mixer has advanced design, simple internal structure, easy cleaning, all materials can be discharged, and operation is simple, which can reduce labor intensity and improve working environment. At the same time, because the material also rotates when the container itself rotates, but the material does not accumulate on the wall of the container, the material is dried evenly and fully, and the quality is good. It can be widely used in the drying of materials in pharmaceutical, chemical, food, dye and other industries. Comply with "GMP" requirements.
Working principle :
SZG double cone rotary mixer is a double cone rotary tank, and the rotation of the tank makes the material go up and down continuously to achieve the purpose of uniform drying.
Application Scope:
1. This machine is suitable for mixing powder and granular materials in the pharmaceutical, food, chemical and other industries.
2. Heat-sensitive materials;
3. Materials that are easily oxidized and dangerous;
4. Materials that need to recover solvents and toxic gases;
5. Materials with extremely low residual volatile content are required;
6. It is required to mix fully and uniformly materials;
Item |
Model |
||||||||
Name |
SZG-100 |
SZG-200 |
SZG-500 |
SZG-750 |
SZG-1000 |
SZG-1500 |
SZG-2000 |
SZG-3000 |
SZG-5000 |
Total volume（L） |
100 |
200 |
500 |
750 |
1000 |
1500 |
2000 |
3000 |
5000 |
Working volume（L） |
≤50 |
≤100 |
≤250 |
≤375 |
≤500 |
≤750 |
≤1000 |
≤1500 |
≤2500 |
Revolution（rpm） |
3-13（adjustable） |
||||||||
Power（kw） |
0.75 |
1.1 |
2.2 |
3 |
4 |
4.5 |
7.5 |
15 |
18.5 |
Height of rotating frame（m） |
1.8 |
1.9 |
2.2 |
2.5 |
2.7 |
2.9 |
3.1 |
3.35 |
4.2 |
Total weight（kg） |
550 |
700 |
1100 |
1200 |
1300 |
1500 |
2000 |
3000 |
4000 |
FOB Price： RMB |
1.8-2.2w |
2.2-2.4w |
2.5-2.8w |
3.1-3.5w |
4.2-4.7w |
5.3-5.6w |
6.8-7.4w |
7.9-8.4w |
9.8-10.5w |
Send Inquiry to This Supplier
