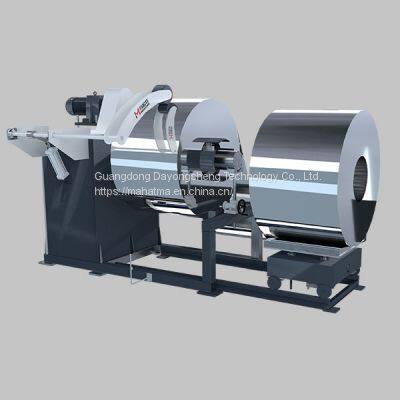

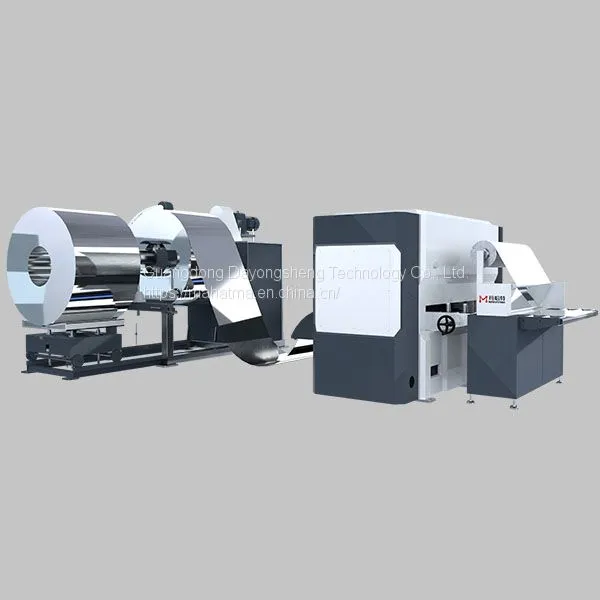

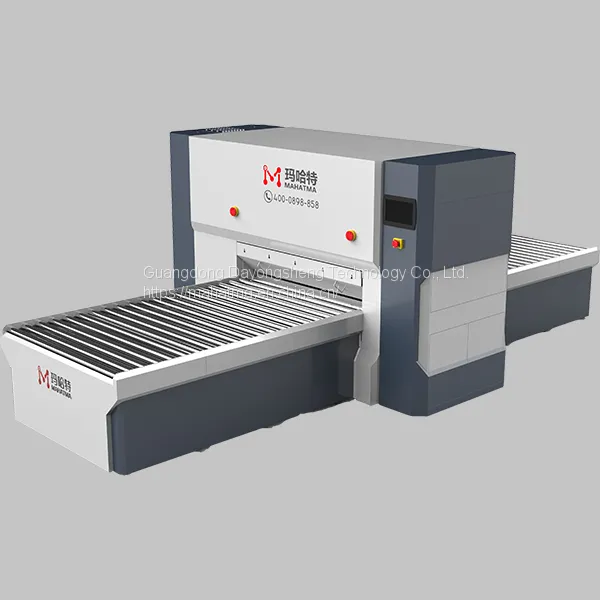

MAHATMA Shear Line for Steel Coiling Materials
US$ 30000 - 200000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
MAHATMA
Place of Origin:
China
Model Number:
MHTS-1300H
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
45 days
Related Products
-
MAHATMA Shear Line for Steel Sheet MaterialsUS$ 30000 - 200000MOQ: 1 Piece -
MAHATMA Laser Cutting Machine for Steel Coiling MaterialUS$ 30000 - 200000MOQ: 1 Piece
-
MAHATMA Laser Cutting Machine for Steel Sheet MaterialUS$ 30000 - 200000MOQ: 1 Piece
-
MAHATMA Laser Cutting Machine for Metal Sheets or PlatesUS$ 30000 - 200000MOQ: 1 Piece
-
MAHATMA Laser Cutting Machine for Metal Sheets or Plates With Feeder LineUS$ 30000 - 200000MOQ: 1 Piece
Brand Name
MAHATMA
Place of Origin
China
Model Number
MHTS-1300H
Certification
CE
After-sales Service Provided
Overseas service center available
Condition
New
Graphic Format Supported
PLT
Cooling Mode
Water Cooling
CNC or Not
Yes
Cutting Speed
15m/min
Cutting Area
0-2500m
Cutting Thickness
0-30mm
Applicable Material
Metal
Laser Type
Fiber Laser
| Shear Line Technical features | ||||
| Model | MHTS-1300H | MHTS-1500H | MHTS-2000H | MHTS-2500H |
| Maximum Width(mm) | 1300 | 1500 | 2000 | 2500 |
| Maximum Thickness(mm) | 3/6/10 | 3/6/10 | 3/6/10 | 3/6/10 |
| Roller Diameter(mm) | 60/80/120 | 60/80/120 | 60/80/120 | 60/80/120 |
| Leveling Accuracy(mm/m2) | 0.2 | 0.2 | 0.2 | 0.2 |
| Maximum Weight(t) | 5/10/15/20 | 5/10/15/20 | 5/10/15/20 | 5/10/15/20 |
| Automatic Hydraulic Feeding Trolley | Yes | Yes | Yes | Yes |
| Speed(m/min) | 0-20 | 0-20 | 0-20 | 0-20 |
| Inner Diameter(mm) | ∮508- ∮610 | ∮508- ∮610 | ∮508- ∮610 | ∮508- ∮610 |
| Maximum Outer Diameter(mm) | Φ1500 | Φ1500 | Φ1500 | Φ1500 |
| Numbers of Roller | 19 | 19 | 19 | 19 |
| Controller | CNC | CNC | CNC | CNC |
| Feeding Accuracy(mm) | ±0.2 | ±0.2 | ±0.2 | ±0.2 |
| Air Pressure(kg/cm²) | 5 | 5 | 5 | 5 |
| Rack expansion mode | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
| Servo Motor | Servo + Reducer | Servo + Reducer | Servo + Reducer | Servo + Reducer |
| Rack motor(kw) | 5 | 5 | 5 | 5 |
| Feeding direction | left→right | left→right | left→right | left→right |
| Feed line height(mm) | 850±50 | 850±50 | 850±50 | 850±50 |
| Voltage(v) | AC380v | AC380v | AC380v | AC380v |

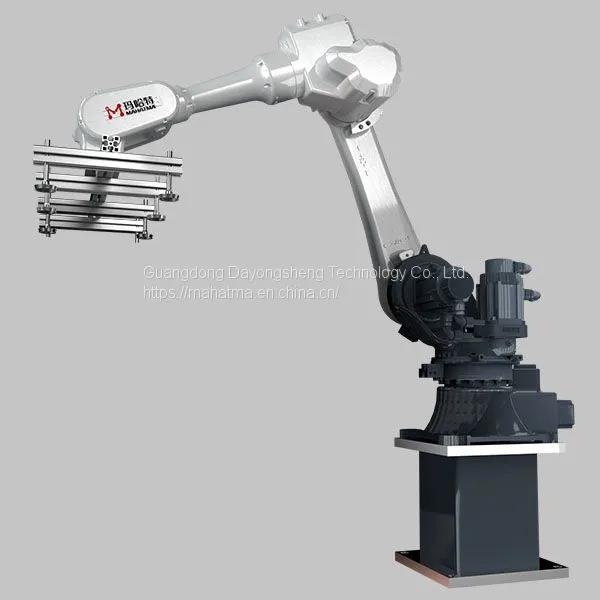

| Optional | 1. Blanking manipulator 2. Blanking joint robot 3. Automatic film laminating machine 4. Automatic stacking lifting table 5. Blanking platform | |||
