II. Performance parameters of the machine
01 Product type: YZR5250TFCSX6
02 Chassis type: Delong SX1259MC4C1 (National 6)
03 Spreading width: ≤4200mm
04 Asphalt spreading volume: 0.3-3.0L/m3
05 Heating method: imported diesel double burner (200,000 calories/hour)
06 Full load mass: 45t
07 Empty vehicle mass: 18.38t
08 spraying medium: hot asphalt, hot modified asphalt, diluted asphalt, emulsified asphalt rubber modified asphalt (should meet the following two conditions: 1 rubber modified asphalt viscosity Haake190 ℃ 1500 ~ 2200Pa.s; 2 rubber modified asphalt spraying temperature 200 ~ 210 ℃; 3. rubber modified asphalt spraying width 4000mm)
09 Spreader size: S5 to S25mm
10 Spreading accuracy: ±2%
11 Asphalt tank capacity: 8 cubic metres
12 Bin capacity: 12 cubic metres
13 Stone chip spreading volume: adjustable
14 Hydraulic system pressure: 20MPa
15 Asphalt insulation method: Heat transfer oil insulation
16 Cleaning method: High-pressure air cleaning
17 External dimensions: 10500 x 2550 x 385
Main configurations of the gravel synchronous sealer
Serial number |
Name |
Models, specifications |
Number |
1 |
Engines |
WP9H350E62(350hp) |
1 |
2 |
Burners |
Lialu, Italy /G20 |
2 |
3 |
Asphalt pumps |
US-Belgium Josen original import |
1 |
4 |
Variable displacement piston pumps |
A11V060EP2D/10R Rexroth Germany |
1 |
5 |
Hydraulic drive motors for asphalt pumps |
Rexroth Germany |
1 |
6 |
Duplex gear pumps |
gpc4-25-25-b6f4-30-r usa |
1 |
7 |
Control systems |
CLW-32-01 (STW, Germany) |
1 |
8 |
Generators |
Honda 6KW Petrol Generator |
1 |
9 |
Tacho sensors |
Germany Ni5-G12-AP6X |
3 |
10 |
Thermostat |
Japan E5AZ |
2 |
11 |
Spreading stick motors |
Domestic Zhenjiang |
1 |
12 |
Heat transfer oil pumps |
Domestic |
1 |
13 |
Power take-offs |
Original full power |
1 |
14 |
Rear monitor |
7", colour screen physical image |
1 |
15 |
Nozzle |
34 national |
1 group |
16 |
Mixer motors |
USA Eaton |
1 |
III. Equipment composition and structural features
The synchronous gravel truck mainly consists of asphalt spreading system, stone spreading system, electrical operating system and auxiliary system.
Asphalt sprinkling system The sprinkling system consists of an asphalt tank, heating section, hydraulic section, control section and spraying section.
1、Asphalt tank The outer wall of the tank body is made of stainless steel frosted plate, with insulation filler in the middle, and the inner part is composed of heating boiler and heat-conducting oil coil, with a neat and generous appearance. The additional gas control valve set outside the tank body realizes the size of the asphalt circulation in the pipeline, avoiding the asphalt local overheating and aging.
2、Heating part The heating device uses imported burners and matching high-efficiency boilers, which have high combustion efficiency, good atomization effect, low oil consumption, fast heating speed, safe and stable operation, etc. No artificial supervision is needed to ensure that all the asphalt in the pipeline can get an effective heating temperature.
3、Hydraulic part Adopt international famous brand components (hydraulic pump, hydraulic motor) to ensure reliable transmission performance.
4、Control part The encoder is used to accurately detect the vehicle speed and asphalt pump speed respectively to ensure the sprinkling accuracy, where the radar, encoder and main circuit switching components are all imported components. After setting the sprinkling amount, PLC automatically calculates the vehicle speed and pump speed, realising the automatic control of sprinkling and can recommend a reasonable vehicle speed for the driver.
5、Spraying part The opening and closing of each nozzle is individually controlled by an air valve. The special piping design ensures even pressure and good spraying effect.
Stone spreading systems
The stone spreading system consists of a silo, a material door control mechanism and a spreader.
The silo is fitted with an internal shadow hidden centre top turning shaft using a through shaft to ensure the smoothness of the silo raising; the material door is controlled by 16 ways, with an angle screw angle controller, to make the material door reach a certain opening degree, the material door opening angle can be set on the angle controller, very convenient and accurate. Effective adjustment of the spreading uniformity, changing the situation of uneven spreading of traditional stone materials; wide range of adjustment of the dividing and lowering plates, suitable for different sizes (S5 to S25mm) of stone materials.
Electrical operating systems
1. Provide the operator with accurate sprinkling parameters according to the different work requirements.
By setting the parameters on the display on the rear console, the actual measurement parameters are constantly changed to give an accurate picture of the machine's operation.
2、Simple manual operation and the ability to switch between manual/automatic improves work efficiency.
3、It can adjust the width of spraying asphalt and spreading stone at will according to the width of the road.
4、Limit switch device is used to control the nozzle rack and silo lift to avoid over-range injury to man and machine.
5、Configuration of thermal oil automatic alarm device, with the upper and lower limit of the material level alarm, asphalt lower limit alarm indication function.
Equipment Benefits
01 The fully hydraulic drive mode makes operation easier and more convenient without the need for any additional auxiliary power.
02 The use of highly efficient heat-conducting oil boilers to raise the temperature has greatly increased the speed of the temperature rise, breaking the traditional flue heating method.
03 The machine can be used to spread stone chips by using an internal lifting hopper, making it easier to work in culverts, under bridges and on curves.
04 The equipment is fully electrically controlled, highly automated, and can accurately calculate the amount of asphalt sprayed and stone chips spread during the construction process.
05 The use of an angle gauge for the control of the material door to ensure the accuracy of the machine's discharging.
06 Reduces the labour intensity of construction, saves human resources, reduces construction costs and improves efficiency and quality of work.
07 Stable operation of the machine, even spreading, free adjustment of the sprinkled asphalt spreading width.
08 Good insulation ensuring an insulation performance index of ≤ 20°C/8h and corrosion resistance and durability.
09 The possibility of spraying various asphalt media and spreading stones from S5 to S25 mm.
10 The equipment uses nozzles with high machining accuracy, so that the consistency of spraying and the spraying effect of each nozzle are fully guaranteed.
11 A more user-friendly overall operation, with remote control and also on-site operation, which brings great convenience to the operator.
12 zero-start spraying through a perfect combination of electrical control and a constant pressure device for the hydraulic system.
13 The whole machine has been improved through many engineering works, with reliable working performance, easy operation and maintenance, and high cost performance.

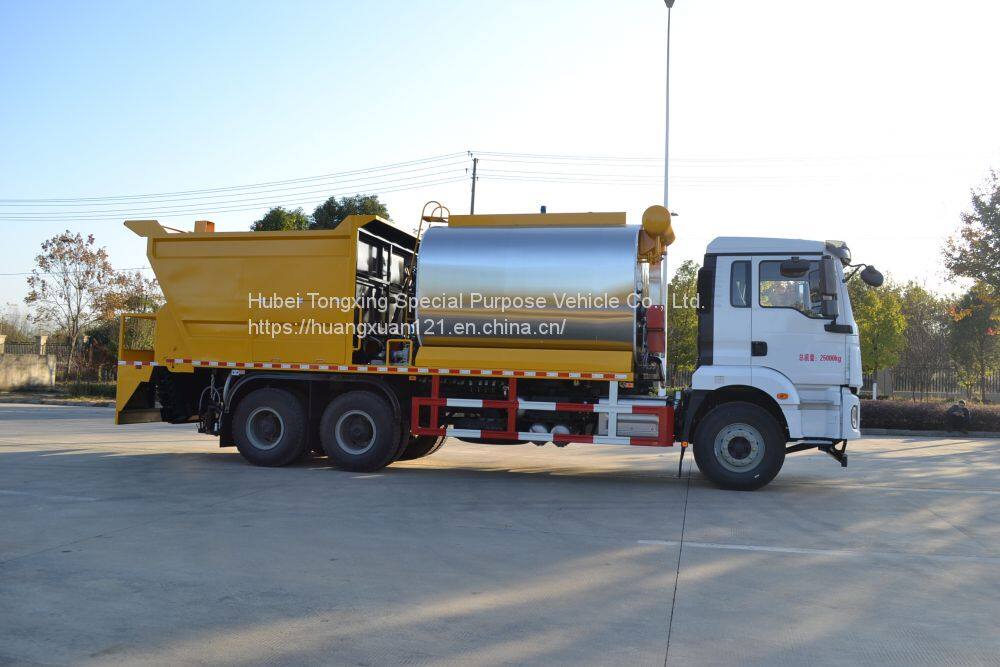

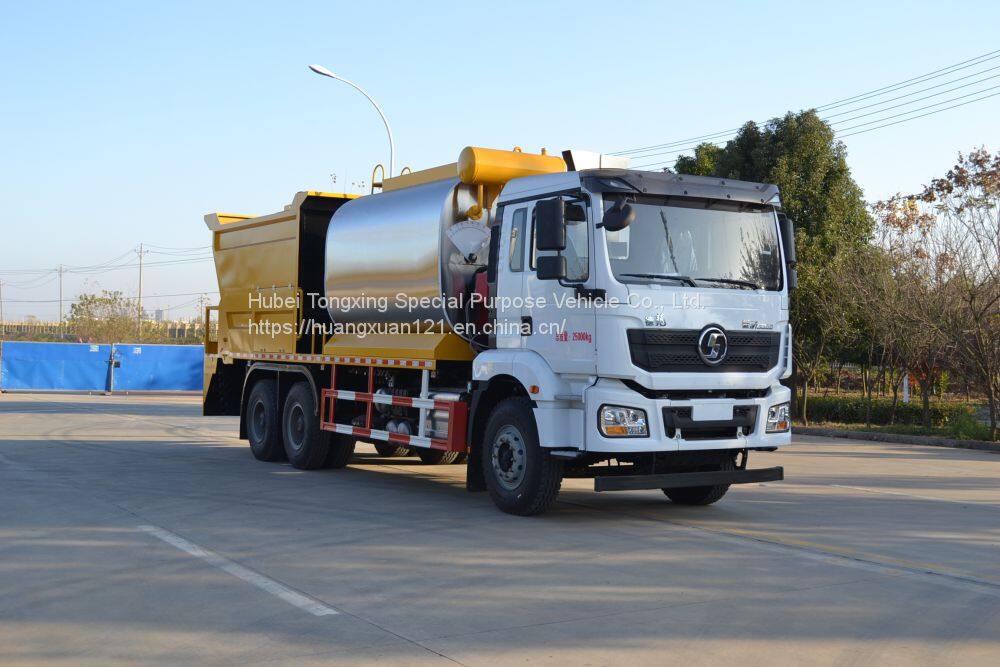

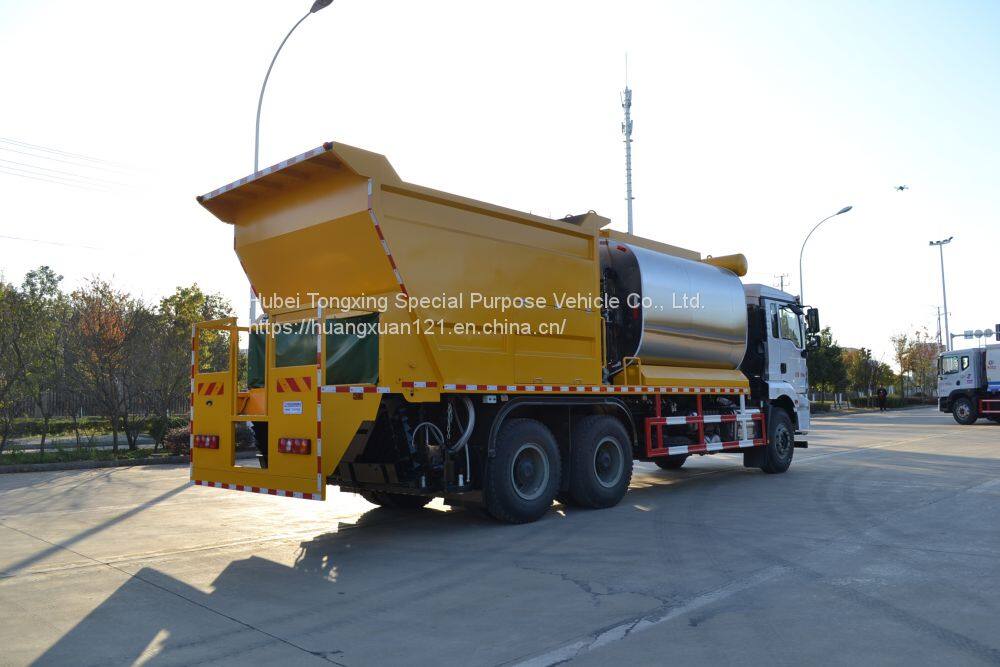

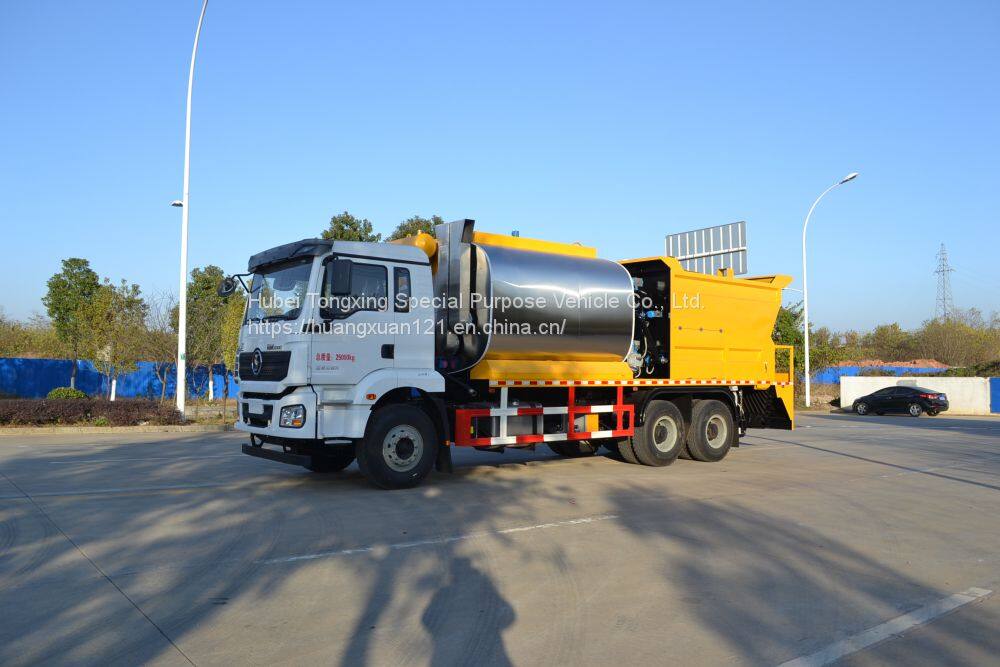

Product photos
