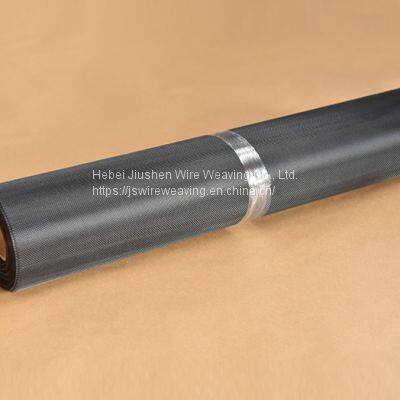

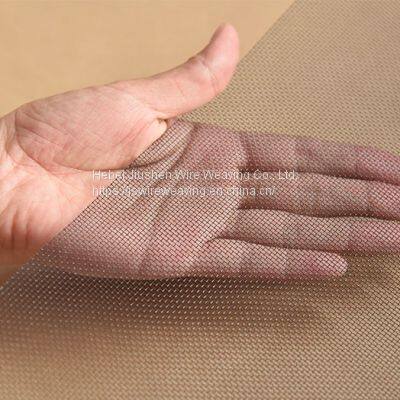

Epoxy Coated Wire Mesh

Product Brief Introduction:

Epoxy coated wire mesh is referred to epoxy mesh.

The manufacturing process of epoxy mesh is to use the principle of electrostatic spraying to absorb eco-friendly epoxy resin powder on the surface of the wire mesh woven from different metal wires. After a certain period of high temperature curing, the epoxy resin powder is melted and covered on the substrate. A dense protective layer is formed on the surface of the mesh.

Epoxy powder is divided into indoor and outdoor types, and special powders can be customized and developed according to customer requirements.

The substrate mesh usually includes low carbon steel mesh, aluminum alloy mesh and stainless steel mesh.

Epoxy mesh manufacturing standard: GB/T 17492-2019

Woven pattern: Plain wave rough edge / selvaged edge

Features of Epoxy Coated Wire Mesh:

After epoxy coating, the interweaving point of the metal mesh is fixed, the warp and weft are vertical, the mesh holes is uniform, not easy to loose and deform, the support for the filter paper is strengthened, the mesh surface is soft, easy to fold and form; the coating thickness is uniform with even and consistent color.

Application and Categories of Epoxy Coated Wire Mesh:

According to different Application, epoxy mesh can be divided into industrial epoxy mesh and civil epoxy mesh.

Industrial epoxy mesh mainly refers to aluminum alloy epoxy mesh and low-carbon steel epoxy mesh, which are mainly used as the filter element support mesh of the filter, also known as hydraulic filter element protection mesh, hydraulic filter element metal mesh.

Civil epoxy mesh mainly refers to stainless steel epoxy mesh, which is mainly used in high-end residential and commercial building as security window screens.

Advantages of Jiushen Epoxy Coated Wire Mesh:

After coating, the mesh is square without deformation and the surface is flat with the maximum undulating height on the platform ≤10mm. The powder coating amount is controlled at 20-35g/㎡, with moderate interleaving points. The width of finished product can reach 1,600mm.

The surface treatment powder adopts low temperature fast curing oil-resistant matting resin paint (160℃/90s) and low temperature curing weather-resistant matting polyester paint (160℃/90s). The powder has obtained RoHS and REACH certification.

It is resistant to oil immersion and corrosion. It can pass the detection of various brands of hydraulic oil media around the world at different temperatures and times. The coating surface has no change. It is suitable for special hydraulic filter products of high temperature and high pressure.

Weather corrosion resistance, according to ASTM B117-09 salt spray test standard, continuous test 96H coating surface unchanged, suitable for use in harsh environment air filter and outdoor environment.

.
