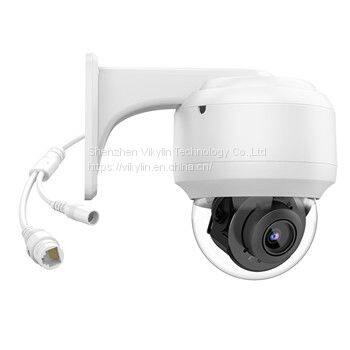

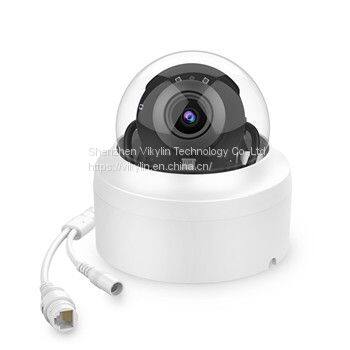

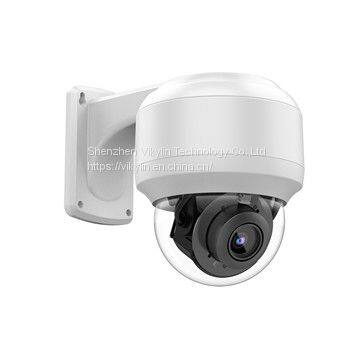

PTZ-2504X-I2 5MP 4X Controller Remote Control IR PTZ Network Camera 5mp Poe Ip Camera

Min. Illumination

Color: 0.01 Lux @(F2.0, AGC ON)
B/W:0.004 Lux @(F2.0, AGC ON)
0 Lux with IR

White Balance

Auto/Manual

Shutter Speed

1/10 s to 1/10,000 s

Day & Night

IR Cut Filter

Digital Noise Reduction

2D/3D DNR

WDR

Support

Privacy Mask

4 programmable privacy masks

Lens

Focal Length

2.8-12mm  lens,4 × optical zoom

Field of View

Horizontal field of view: 96.7° to 31.6° (Wide-Tele)
Vertical field of view: 51.1° to 17.7° (Wide-Tele)

PTZ

Movement Range (Pan)

0° to 355°

Movement Range (Tilt)

0° to 90°

Pan Speed

Configurable, from 0.1°/s to 40°/s. Preset speed: 40°/s

Tilt Speed

Configurable, from 0.1°/s to 40°/s. Preset speed: 40°/s

Proportional Zoom

Yes

Power-off Memory

Yes

Compression Standard

Video Compression

Main stream: H.265+,H.265,H.264,MJPEG
Sub-stream: H.265+,H.265,H.264,MJPEG

H.265 Type

Baseline profile/Main profile/High profile

H.265+

Yes

Event

Basic Event

Motion Detection

Intelligent detection

Human Detection

IR

IR Distance

30 m

IR LED

2PCS


Max. Resolution

2592 x 1944

Main Stream

25fps @2592 × 1944/2560 × 1440/1080P/720P

Sub-Stream

25fps @D1/VGA/640x360/480 x360 /CIF

Image Enhancement

BLC/3D DNR/HLC/WDR

Network

Network Storage

Support Local storage and NFS,NVR,APP Cloud Storage

Protocols

TCP/IP/IPv4/IPv6/HTTP/RTSP/NFS/DHCP/NTP/SMTP/FTP/SSL

General Fuction

Built-in Mic,Privacy Masks,  Horizon/Vertical Flip,Password Reset,Upgrade

API

ONVIF (Profile S, Profile G, Profile T)

Simultaneous Live View

Up to 20 channels

User/Host

3 levels: Administrators, Operators and Users

Client

AjDevTool,SADP, Danale App,LMS,iVMS-4200

Web Browser

IE 8+ ,Chrome 57.0+, Firefox 52.0+

Interface

Network Interface

1 RJ45 10 M/100 M Ethernet, PoE

Power

12V DC

Audio IN

Built-in Mic

Audio Out

N/A

RS485

N/A

SD Card slot

N/A

General

Web Client Language

7 languages:
Chinese, English, Russian,  German, Italian, , Turkish, 한국어

Power

12V DC, 1.5 A (Max. 10.9 W, including Max. 4.2 W for IR)
PoE (802.3af), 36 to 57V DC, 0.35 A (Max. 12.2 W, including max. 4.2 W for IR)

Working Environment

Temperature: -20°C to 60°C (-4°F to 140°F), humidity: ≤ 90%

Protection Level

IP66

Material

Metal

Dimension

Package: 220 x 200 x 145 mm (8.7'' x 7.9'' x 5.7'')

Weight

With Package : Approx. 1.22 kg (2.7 lb.)
