AUSO Aluminum Auto Parts Master Cylinder Support Brace Brake Stiffness Bracket Fit For Subaru WRX/STi/IMPREZ RS LHD
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
AOSU Universal 1L Capacity Square Aluminum Gas Recycling Pot Oil Breathable Tank Fit For Most Car Vehicle Accessories
-
AUSO Polished Aluminium Alloy Custom Universal 2l Square Fuel Tank Oil Catch Can
-
AUSO 330ml Racing Universal Auto Parts Billet Oil Catch Can Aluminum Tank For vw jetta 1.8t mk4
-
AUSO Aluminum Auto Parts AN10 Twin Port Tank Can Filter Oil Catch Tank Reservoir Breather
-
AUSO 4L Universal Aluminum Auto Parts 6AN Port Sturdy Lightweight Oil Catch Can Fuel Surge Tank
-
AUSO Universal Applicable Aluminum Oil Catch Can Reservoir Fuel Tank With Filter 9mm / 15mm Fittings Car Accessories
Product Description
Specification
Product Name： | Cylinder block |
Type: | Master Cylinder Support Brace |
Material： | High Quality 6061-T6 Billet Aluminum |
Color： | Black |
Weight: | 0.22kg |
MOQ: | 5set |
Product Description
Fitment:
For 02-07 Subaru Impreza.
For 02-07 Subaru Impreza RS.
For 02-07 Subaru Impreza WRX.
For 04-07 Subaru Impreza WRX STI.
!!! Fit Left Hand Drive Models Only !!!
Vehicle compatibility charts are for REFERENCE ONLY. Check product type and size to match your needs.
Features:
100% quality assurance tested, more responsive, less expensive, easier to install.
Stiffen brake pedal feel.
One piece design, good rigidity.
CNC machined black anodized finish.
Include necessary hardware and tool for installation.
Mount handily to 3 pre-existing threaded holes in the engine bay.
Add more reinforcement to firewall to reduce flexing while hard braking.
Adjustable screw that allows tension to be preloaded on the master cylinder.

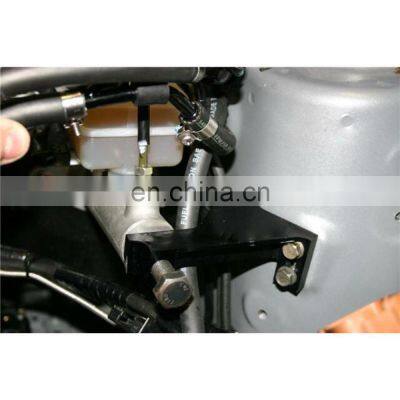

Bolts from the brake master cylinder to the driver-side shock tower as a brace.
Installation Steps:
1. 02-05 WRX and STis remove window washer bottle from drivers side shock tower. Disconnect pump connectors and hoses making sure not to dump all remaining fluid onto car. 06+ cars can skip this step.
2. 02-04 WRXs remove fuel filter from bracket on passenger side shock tower. Carefully move fuel filter out of the way, and remove bracket from shock tower.
Package Included:
1 x Master Cylinder Brace w/ Accessories.
Note:
1.We provide clear pictures, measurements where possible. Please check as much as possible to make sure the item is the one that you need.
2.Please allow 1-3mm difference due to manual measurement.
3.The color of the actual items may slightly different from the listing images due to different computer screen, thanks for your understanding.
For 02-07 Subaru Impreza.
For 02-07 Subaru Impreza RS.
For 02-07 Subaru Impreza WRX.
For 04-07 Subaru Impreza WRX STI.
!!! Fit Left Hand Drive Models Only !!!
Vehicle compatibility charts are for REFERENCE ONLY. Check product type and size to match your needs.
Features:
100% quality assurance tested, more responsive, less expensive, easier to install.
Stiffen brake pedal feel.
One piece design, good rigidity.
CNC machined black anodized finish.
Include necessary hardware and tool for installation.
Mount handily to 3 pre-existing threaded holes in the engine bay.
Add more reinforcement to firewall to reduce flexing while hard braking.
Adjustable screw that allows tension to be preloaded on the master cylinder.
Bolts from the brake master cylinder to the driver-side shock tower as a brace.
Installation Steps:
1. 02-05 WRX and STis remove window washer bottle from drivers side shock tower. Disconnect pump connectors and hoses making sure not to dump all remaining fluid onto car. 06+ cars can skip this step.
2. 02-04 WRXs remove fuel filter from bracket on passenger side shock tower. Carefully move fuel filter out of the way, and remove bracket from shock tower.
The 2 threaded holes will be used to mount the master cylinder support bracket.
05+ WRX and STis can skip this step.
3. 05-07 WRX and STis need to remove fuel line holder bracket from shock tower. This will not be reused.
4. Locate small hose and find clip that passes through shock tower into wheel well. This hose and clip is roughly 2-3”back from 2 threaded holes where fuel line/filter holder bolted to. Remove hose and connector from hole, as this will be used to mount 3rd point on master cylinder support.
5. 06-07 WRXs have a secondary air injection pump that needs to be moved out of way to access bolt for fuel holder. Remove 2 bolts on shock tower, one bolt toward battery, hose on top of pump, and electrical connection, to remove from car. This will be reinstalled later.
6. Install master cylinder brace loosely onto 2 threaded holes on shock tower using supplied M6 bolts and washers.
7. Using supplied M6 bolt, place bolt with M6 washer through master cylinder brace, into hole on shock tower.
8. Jack up car on drivers side and support with jack stand. Locate M6 bolt where it passed through shock tower. Install supplied fender washer and nut onto bolt protruding through wheel well.
9. Snug all 3 nut/bolts, then tighten 2 bolts in engine bay to 15ft-lbs, then bolt in wheel well to 15ft-lbs. Once this is done, raise car and remove jack stands and drop car to ground.
10. Install supplied set screw into brace, making sure to put socket head portion away from master cylinder. Install supplied nut loosely to socket head bolt. Tighten socket set screw until it touches master cylinder. Tighten set screw half to one full turn. Lock down set screw by tightening lock nut to master cylinder brace, using a 19mm wrench.
11. 02-04 WRXs install fuel filter back onto shock tower. The OEM bracket will not be reused and fuel filter will not fit securely to chassis. An aftermarket inline fuel filter can be purchased and mounted in a new location.
12. 05+WRX and STis will not reinstall fuel line bracket to shock tower. Make sure fuel lines are secured out of way of sharp corners on master cylinder brace.
13. 02-05 WRXs install washer bottle back onto shock tower, making sure to hookup water pump electrical connection, and washer hose connection.
14. 06-07 WRXs install secondary air injection system back to car. Make sure all electrical connections are plugged back in.
Note:
Cars with OEM fuel filter in engine bay will have to secure filter using other methods. Not simply rest filter on top of master
cylinder support, or cause damage after working a period of time.
3. 05-07 WRX and STis need to remove fuel line holder bracket from shock tower. This will not be reused.
4. Locate small hose and find clip that passes through shock tower into wheel well. This hose and clip is roughly 2-3”back from 2 threaded holes where fuel line/filter holder bolted to. Remove hose and connector from hole, as this will be used to mount 3rd point on master cylinder support.
5. 06-07 WRXs have a secondary air injection pump that needs to be moved out of way to access bolt for fuel holder. Remove 2 bolts on shock tower, one bolt toward battery, hose on top of pump, and electrical connection, to remove from car. This will be reinstalled later.
6. Install master cylinder brace loosely onto 2 threaded holes on shock tower using supplied M6 bolts and washers.
7. Using supplied M6 bolt, place bolt with M6 washer through master cylinder brace, into hole on shock tower.
8. Jack up car on drivers side and support with jack stand. Locate M6 bolt where it passed through shock tower. Install supplied fender washer and nut onto bolt protruding through wheel well.
9. Snug all 3 nut/bolts, then tighten 2 bolts in engine bay to 15ft-lbs, then bolt in wheel well to 15ft-lbs. Once this is done, raise car and remove jack stands and drop car to ground.
10. Install supplied set screw into brace, making sure to put socket head portion away from master cylinder. Install supplied nut loosely to socket head bolt. Tighten socket set screw until it touches master cylinder. Tighten set screw half to one full turn. Lock down set screw by tightening lock nut to master cylinder brace, using a 19mm wrench.
11. 02-04 WRXs install fuel filter back onto shock tower. The OEM bracket will not be reused and fuel filter will not fit securely to chassis. An aftermarket inline fuel filter can be purchased and mounted in a new location.
12. 05+WRX and STis will not reinstall fuel line bracket to shock tower. Make sure fuel lines are secured out of way of sharp corners on master cylinder brace.
13. 02-05 WRXs install washer bottle back onto shock tower, making sure to hookup water pump electrical connection, and washer hose connection.
14. 06-07 WRXs install secondary air injection system back to car. Make sure all electrical connections are plugged back in.
Note:
Cars with OEM fuel filter in engine bay will have to secure filter using other methods. Not simply rest filter on top of master
cylinder support, or cause damage after working a period of time.
Package Included:
1 x Master Cylinder Brace w/ Accessories.
Note:
1.We provide clear pictures, measurements where possible. Please check as much as possible to make sure the item is the one that you need.
2.Please allow 1-3mm difference due to manual measurement.
3.The color of the actual items may slightly different from the listing images due to different computer screen, thanks for your understanding.
