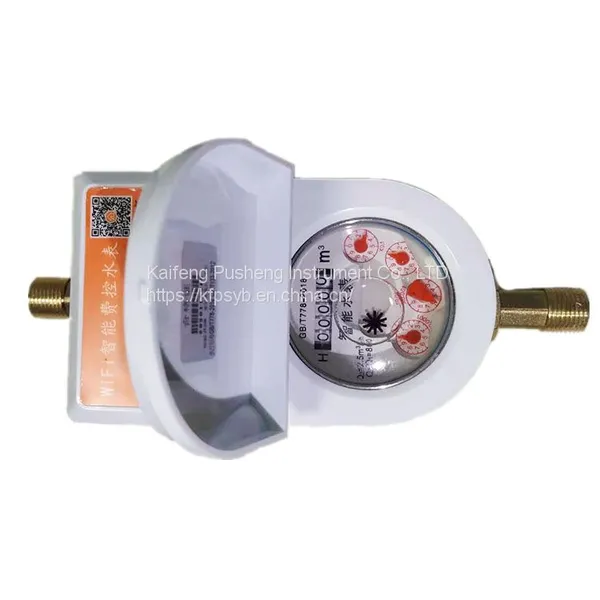

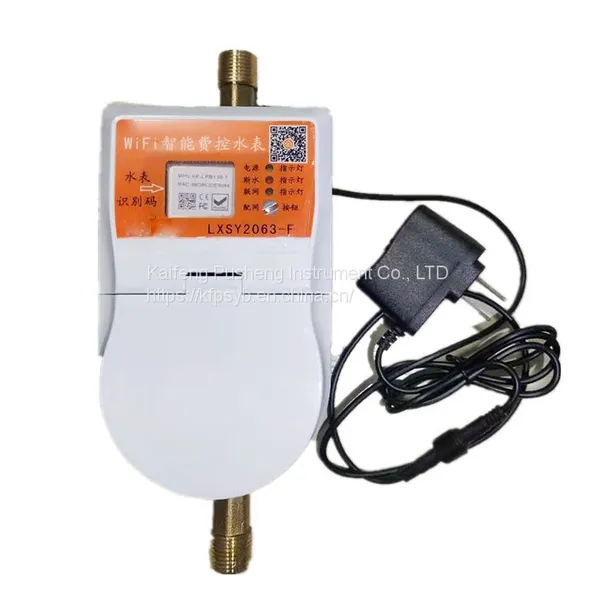

Help CenterRent House Special WiFi Intelligent Fee Control Water Meter
Related Products
-
NB-IOT Water Meter DN20 for Residential Building Water Professionally Produced by PushengUS$ 25.8 - 46MOQ: 1 Set -
3/4 Inch Intelligent RF IC Card Water Meter is Exported to Overseas Countries Wireless Connection Intelligent ManagementUS$ 25.8 - 46MOQ: 1 Set
-
DN20 Gas Flowmeter Vortex Flowmeter Metering AccuracyUS$ 126 - 200MOQ: 1 Set
-
Photoelectric Direct Reading Water Meter Intelligently Transmits DataUS$ 21.42 - 46MOQ: 1 Set
-
DN15DN20DN25All-copper Water Case IC Card Smart RF Water Meter Pre-paid Water Meter Professional SupplyUS$ 25.8 - 46MOQ: 10 Sets
Water meter installation guide
1. Before installing the water meter, please remove the impurities in
the water pipe and then close the water valve.
2. Pay attention to whether the direction of the water flow corresponds
to the direction of the arrow on the base of the water meter. Please
install the water meter horizontally and face up.
3. Install the copper joint and water meter as shown in Figure 2.
4. After installation, please slowly open the water valve to prevent
high-speed water from damaging the water meter, and check whether
there is water leakage.
Before connecting to the Internet, please turn off the 5G channel of the
router, and it is recommended to use a device with a wireless bandwidth
of 32 and above.
Choose one of the following two network distribution methods.
Mini program distribution network (slow flashing) one at a time
1. After the water meter is powered on, touch the button and press once
for 5 seconds, the green light will flash quickly
2. Touch the button and press it once for 5 seconds, the green light will
flash slowly.
3. After the phone is connected to WiFi, open the "Device Network
Configuration" interface of the applet, enter the WiFi password and
click Connect.
4. The steady green light of the water meter means that the distribution
network is successful.
APP distribution network (flash) can be equipped with multiple
1. After the water meter is powered on, touch the button once for 5
seconds and the green light will flash quickly.
2. Download Zubao APP, which can be downloaded in major application
stores for Android users.
3. After the phone is connected to WiFi, open the "Device Network
Configuration" interface of the APP, enter the WiFi password and click
Connect.
4. The steady green light of the water meter means that the distribution
network is successful.
Frequently Asked Questions
FA01: What should I do if it prompts that it cannot join the network
"hiflying--_ softap" or that the configuration is timed out?
Answer: Please confirm whether the network distribution mode
corresponds to the corresponding flashing frequency.
FAQ2: What if it prompts that there is a configuration task in progress?
Answer: Please close the program background, and then open the
program for configuration operations.
FAQ3: What if the green light goes out after the configuration is complete?
Answer: Please check whether the router has closed the 5G channel.
FAQ4: What should I do if the green light never flashes after the touch
button is pressed?
Answer: Please observe carefully that the yellow light will flash irregularly
after the button is touched. Please release your finger immediately after
the irregular flashing, or release it immediately after a silent count of 5
seconds.
Description of indicator light and water meter dial reading
Remote opening and closing valve
1. How to cut off the water: Click the "off" button on the management
interface of the water meter.
2. How to get water: Click the "on'" button on the management interface
of the water meter.
Timing opening and closing valve setting
1. Click the "time switch" button on the water meter management interface.
2. Click Add, set the time, repeat, and switch and click Submit.
3. Click the switch on the right side of the scheduled task to make the task
in running state.
Software Operation Guide
Water meter dial reading
1. It can be read directly, and the method is the same as that of ordinary
water meters.
2. It is normal that the error between the number read on the water
meter dial and the number displayed in the software is less than 1m³
The reason for the error: the flow rate of the water meter base meter calibration.
Kaifeng PuSheng instrument co., LTD., mainly producing all kinds of rotor meter, the level of spiral meter, vertical spiral water meter, water meter, prepaid intelligent water meter, IC card intelligent water meter, bluetooth intelligent water meter, nb intelligent water meter intelligent water meter and valve control meter, such as photoelectric read-only meter, ultrasonic heat meter, ultrasonic water meter, electromagnetic flowmeter, the throttle device, the vortex street flowmeter, Turbine flowmeter, and related software and hardware development, the company has intelligent circuit board and software research and development capabilities, through the ISO9000 certification system is a collection of research and development, production, sales, after-sales service, technical training as one of the high-tech production and development enterprises.
With decades of experience in the production and service of water meters, electricity meters and other meters and calibration devices, we have the best quality control experts and scientific research and production team in China. Company measurement experts get the measurers through certificate issued by the state in 1982, the quality control experts in 1968 (the original 983 factory), now known as artisans power of the luoyang bearing factory equipment factory work, presided over many products to participate in the national competition for weighing apparatus in China the national front row, computer industry core expert team with 20 years of experience, double card master, And scientific research institutes, universities, as well as a number of master's doctor cooperation to set up a RESEARCH and development service team, with various aspects of the system of research and development and production capacity, flow meter by decades of experience in the flow meter technical experts carefully built supervision. We service clients with unit of former five machine department, Beijing, Shanghai, ningbo and other places, shanxi, shandong, hebei, etc all kinds of users throughout the country, dozens of tap water company, we have training of luoyang, zhengzhou city tap water company check personnel, we have decades of instrument technical service and technical support capabilities.
