Home > Construction & Decoration > Prefabricated Building > Prefabricated Hotel > China Prefabricated Q345b Economic Plant Steel Structure Workshop Prefab Warehouse

China Prefabricated Q345b Economic Plant Steel Structure Workshop Prefab Warehouse

China Prefabricated Q345b Economic Plant Steel Structure Workshop Prefab Warehouse thumbnail-3

China Prefabricated Q345b Economic Plant Steel Structure Workshop Prefab Warehouse thumbnail-4

China Prefabricated Q345b Economic Plant Steel Structure Workshop Prefab Warehouse thumbnail-5

China Prefabricated Q345b Economic Plant Steel Structure Workshop Prefab Warehouse photo-1

China Prefabricated Q345b Economic Plant Steel Structure Workshop Prefab Warehouse photo-2

China Prefabricated Q345b Economic Plant Steel Structure Workshop Prefab Warehouse photo-3

China Prefabricated Q345b Economic Plant Steel Structure Workshop Prefab Warehouse photo-4

China Prefabricated Q345b Economic Plant Steel Structure Workshop Prefab Warehouse photo-5

US$ 30 - 50 MOQ: 500 Square Meters

Key Specifications

Get Latest Price

Brand Name:

STL

Place of Origin:

China

Contact Supplier Request Quote Chat Now

Qingdao Steel Building Co., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

30 days

Product Details
Company Profile
Contact Us

Brand Name STL

Place of Origin China

China Prefabricated Q345b Economic Plant Steel Structure Workshop Prefab Warehouse

Your steel structure building will be supplied as following:

1)All Steel Frame parts with prefabricated. (hole,weld,surface treatment etc)
2)All the Roof and Wall Panels already cut to size for your size structure.
3)Completely window and door with hinge,handle etc hardware
4)Bolts, Screws and pop-rivets needed to secure your structure.
5)flashing and Silicone to further help insulate your structure.
6)Other Accessories you have choose: gutter,water spout,ventilation fitting,stairs etc
7)Other internal simple equipment:LED light,shelf racks etc

Item	Popular size	Popular height	Coverage	Gate size
steel warehouse	20x30m	5m	signle corrugated steel sheet	4x4.5m
steel workshop	20x50m	6m	insulation roof with single steel sheet wall	4.5x5m
Farm storage	16x36m	4m	single steel sheet or only roof	4x3.5m

Generally configuration for a steel structure building:

Application:	steel warehouse, steel structure building, steel structure warehouse, steel workshop, steel structure workshop,hangar, sport hall, steel hall,shopping mall, cow shed, chicken building etc
Clear span:(width)	6~50m without middle column
Height	2~20m
Length	as your requirement
Material Grade	Q345(S355JR)or Q235(S235JR) steel or as request
Column & Rafter	Welded or Hot rolled H beam
Tie beam	round pipe or square tube or as request
X brace	round steel bar, angle steel or as request
Purlin	C purlin, Z purlin,thickness 2.0mm,2.2mm,2.5mm,3.0mm
sag rod	steel round bar, angle, C purlin etc
Wall & Roof coverage	single corrugated steel sheet (0.12~1.2mm) EPS, Rock wool, glass fiber ,PU core foam sandwich Panel (Thickness:50mm,75mm,100mm,150mm,200mm)
Gate	Electric roller shutter door/Sliding door
Exit Door	Plastic steel/Aluminum alloy swing door/ steel swing door
Window	Plastic steel or Aluminum alloy frame sliding window/ vent/top Hung window
Surface	Shot blasting with anti rust paint rich-zinc epoxy paint etc hot dip galvanize
Certificate	ISO90001,CE EN1090 EXC2 ,IWE etc
Quality Control	The third party ,SGS, QIMA, BV all accept
Crane	5MT, 10MT, 15MT, etc.
Other accessories	gutter, flashing trimming cover, down spout, ventilation fitting, skylight belt, bolt, anchor bolt, self tapping screw etc
Package	main steel frame etc load in 40'OT,roof and wall panel load in 40'HQ!

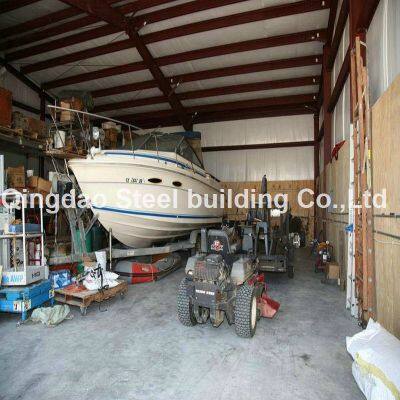

Steel structure show case we have done before

We have export abroad China more than 15 years ,the steel structure can be design below standard:

1.Europe standard: EN1090 EXC2 -CE approved
---already to Norway, Iceland, France, Spain, Romania, Czech Republic, Croatia...

2.Africa Standard:EN1090 BS5950-2 GB etc- CE BV SGS approved
---already to Mauritania, Senegal, Côte d'Ivoire, Ghana, Nigeria, Cameroon, Congo, Angola, Zambia, South Africa, Malawi...

3.Middle Asia Standard:EN1090 BS5950-2 GB etc- CE BV SGS approved
---already to Saudi Arabia, Oman, Qatar, Israel, Lebanon, Jordan...

4.South east Asia:BS5950-2 GB etc- BV SGS approved-
--already to Myanmar, Vietnam, Malaysia, Brunei, Philippines, Cambodia, etc.

5.Australia Standard:AS-4100-1998- SGS approved-
--already to Austalia--Melbourne, Sydney, Adelaide, Queensland ,New Zeland

6.America:AISC 360-16 EN1090 BS5950-2 GB etc- BV SGS approved-
--already to United States, Mexico, Dominica, Paraguay, Colombia, Chile, Brazil, Argentina...

How to order a steel structure from us?
1.Project location?
2.What will be your building usage?
3.Load of your building:(if you really do not know, we will design according experience from the client your place )
Wind speed(KM/H) / Snow load (KG/M2) if have / Earthquake load if have
4.Size: Width x Length x Eave height ? (Accept internal column or not if your building more than 30m width)
5.Roof and wall coverage material?
6.Any window and door ?
7.Surface treatment : Paint or hot dip galvanize
8.Any mezzanine? Any crane? or Other special demand?

Product Tags: Steel Structure , Steel Structure Warehouse , Prefabricated Building , Prefabricated Steel Building , Steel Building , Steel Structure Building , Steel Structure Workshop , Storage shed , Industrial warehouse
