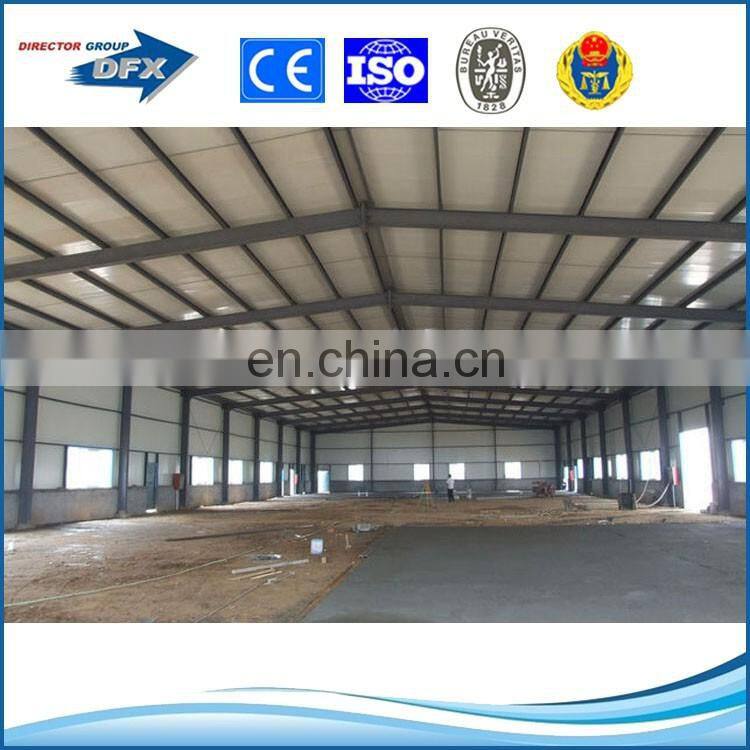

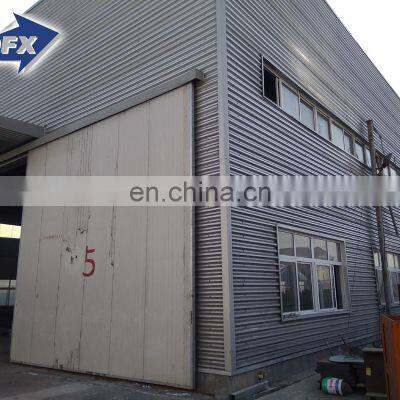

Metal Building Construction Gable Frame Prefabricated Galvanized Steel Roof Structure Shed

Gable frame steel structure building is a typical construction system. Its upper structure consists of steel of parapet, gutter, roof purlin, steel frame, and wall purlin, etc. This kind of building offers a series of advantages and features.
1. This product is light weight and its steel volume of bearing structure is in the range of 20 kg to 50kg per square meter. Its dead weight ranges from 1/20 to 1/3 of reinforced concrete structure. Therefore, this structure greatly reduces damages from earthquake and lessens its foundation costs.
2. It comes with short construction period and high economic benefits.
3. The arrangement of columns is quite flexible..

Mechanical Principle
This product uses lateral bracing consisting of columns and beams as its main stressed structure. To improve its longitudinal stability, column bracing and roof bracing are available.

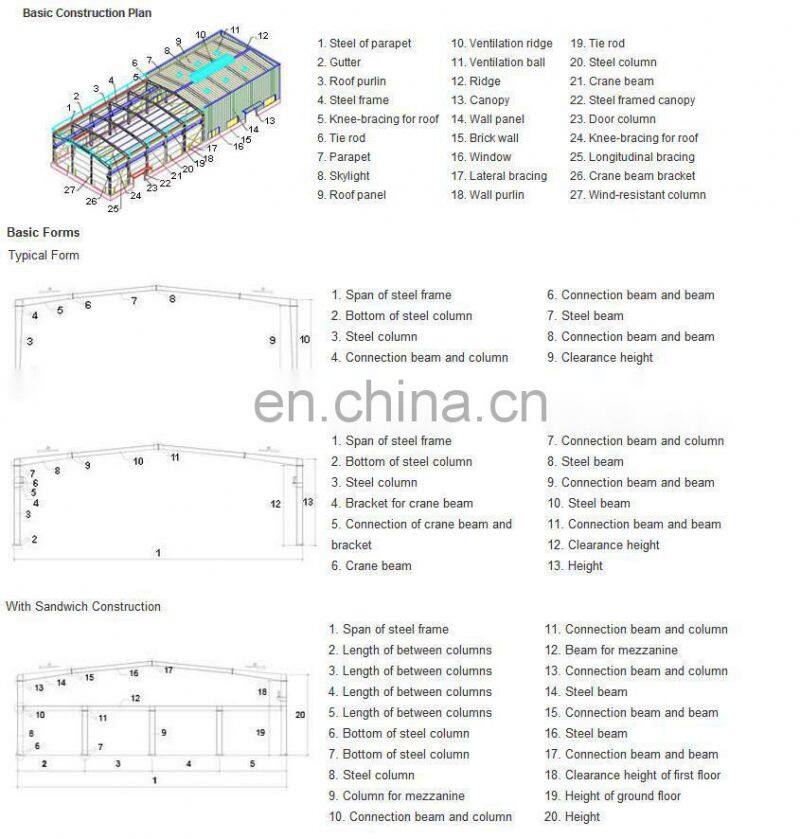

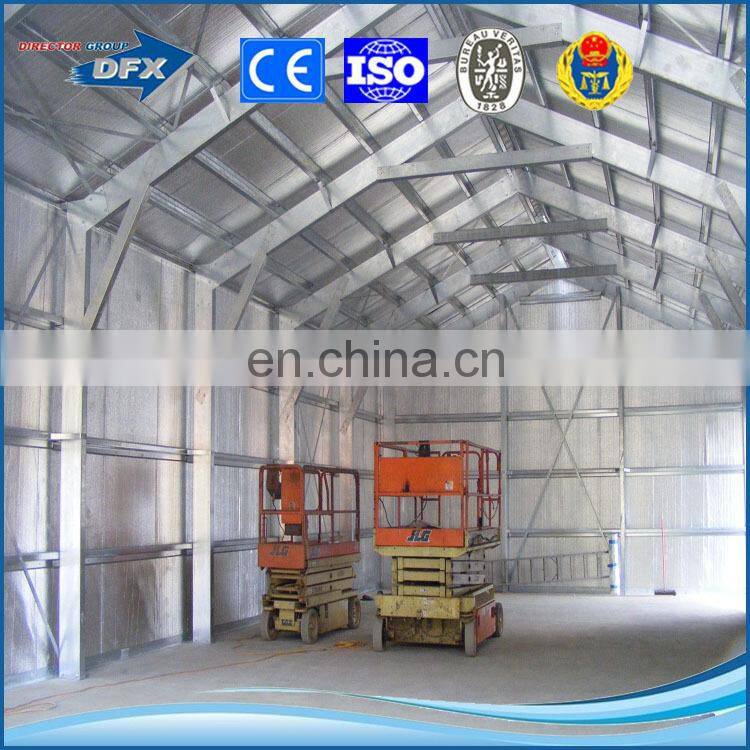

Constituent Parts
1. The main bearing frame is gable frame. Steel frame columns and beams are machined from H beam steel. All kinds of loads are passed to the house base by columns and beams.
2. Purline and wall beam are thin-walled, cold-formed steel sections usually C section steel and Z section steel. The steel section bears the pressure of roof and wall panels and passes to columns and beams.
3. Roof and wall cladding are pressed metal panel or color-steel sandwich panel.
4. Thermal insulation materials for roof and wall include polystyrene foam, polyurethane, rock wool, glass wool, etc.
5. All the braces including column bracing and roof bracing can be divided into two categories and they are rigid support and flexible support. The former is produced from hot rolled steel sections as angle steel. And the latter is round steel bar. The tie rod is circular steel tube.

Structure and properties
1. Purline is used to ensure the integrity of this steel structure building, reducing the number of roof bracing. Most braces are made from round steel and are lightweight.
2. Columns and beams use rods with variable cross-sections, saving building materials. But these rods are thin, having a high demand for manufacturing, transporting and installing.
3. Frame member has smaller bending and torsional stiffness.

Applications
Our gable frame steel structure building is manufactured according to the domestic design standard CECS 102:2002 Technical Specification for Steel Structure of Light-weight Buildings with Gabled Frames. It is widely used in logistics center, hypermarkets, gymnasium, exhibition gallery, mobile homes, as well as lightweight factory or factory with lightweight crane or medium weight crane, and more.

1. Q235B, Q355B H section steel structure for columns and beam

2. Pre-embedding anchor bolts for connection columns to foundation

3. Intensive bolts for connection tween columns and beams.

4. Wall/roof panel: one layer corrugated stee plate or sandwich panels

5. Windows/door: PVC, aluminium alloy, steel etc.

6. Color steel plate or galvanized steel gutters and pvs tubes for rain water

1. Steel Design Code (GB50017-2003)

2. Cold-formed steel structure technical specifications (GB50018-2002)

3. Construction Quality Acceptance of Steel (GB50205-2001)

4. Technical Specification for welded steelstructure (JGJ81-2002, J218-2002)

5. Technical Specification for Steel Structures of Tall Buildings (JGJ99-98)

1. Data for design

Wind speed(KM/H)
Snow load (KG/M2)

Rain load (KG/M2)
Earthquake load if have
Demands for doors and windows
Crane (if have), crane span, crane lift height, max lift capacity, max wheel pressure

and min wheel pressure!

2. Material quality

Windows and doors quantity,size and location

Roof and wall material ,sandwich panel or corrugated steel sheet (steel sheet can not heat insulation)

3.Type

Size--width,length,eaveheight and roofslope

Single slope or double slope

Single floor,double floor or multi floor

1. How to buy your idea products?

A: TT and L/C are acceptable and TT will be more appreciated. 50% deposit before producing, balance before loading by TT.

2.What is the delivery time?

A: It depends on order quantities. Generally speaking, the delivery time will be within 15 to 40 days.

3. How to pack the products?

A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.

4.How to install after the goods arriving destination?

A: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.

For more detailed information or quotation, welcome to contact us!
