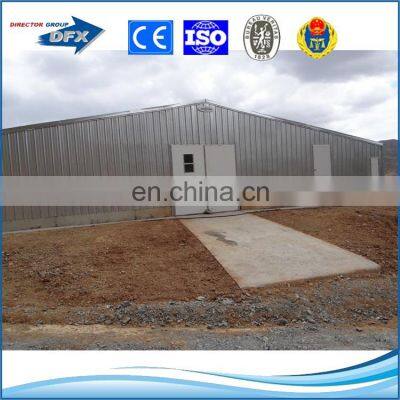

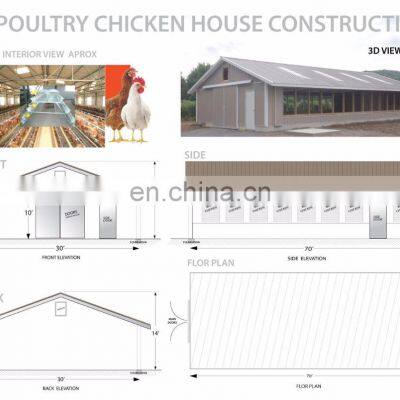

Commercial used steel trusses chicken broiler poultry shed design
| 1. Base: | Concrete and steel foundation bolts |
| 2. Column and beam: | material Q345(S355JR)or Q235(S235JR) steel, all bolts connection ,straight cross-section or Variable cross-section |
| 3. Bracing: | X or V or other type bracing made from angle , round pipe etc. |
| 4. Galvanized C or Z purlin: | size from C100~C320,Z160~Z300 |
| 5. Roof and Wall Panel: |
(a) Single colorful corrugated steel sheet --Thickness:0.12-1.2mm; Width: 310-1150mm, etc. (b) Sandwich panel with EPS, rock wool, glass wool , PU etc. insulation -- Thickness around 50mm~150mm; Width 970mm or 950mm |
| 6. Accessories: | semi-transparent skylight belts, Ventilators, down pipe, out gutter etc |
| 7. Surfrace: | Paint or hot dip galvanized |

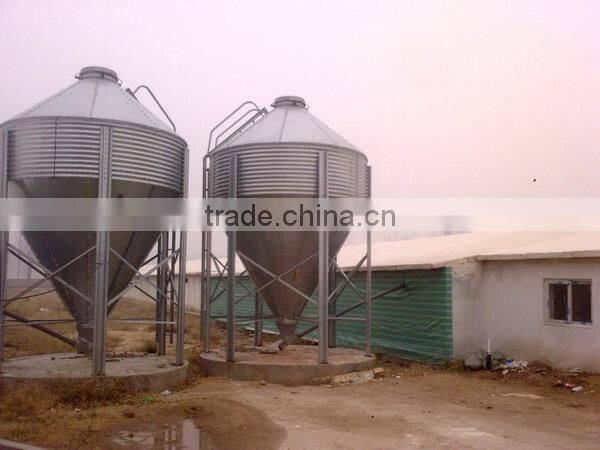

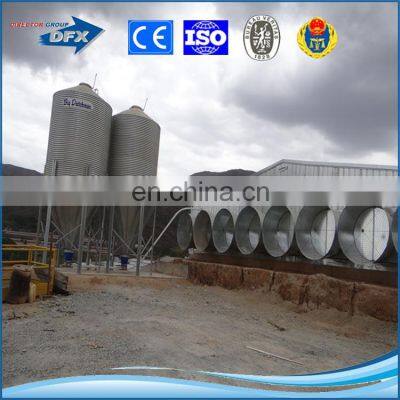

1.Main feeding system
This system delivers feed from the silo to the hopper in the poultry house. There is one feed sensor at the end of main feed line which control the motor on and off automatical to release automatic delivery.

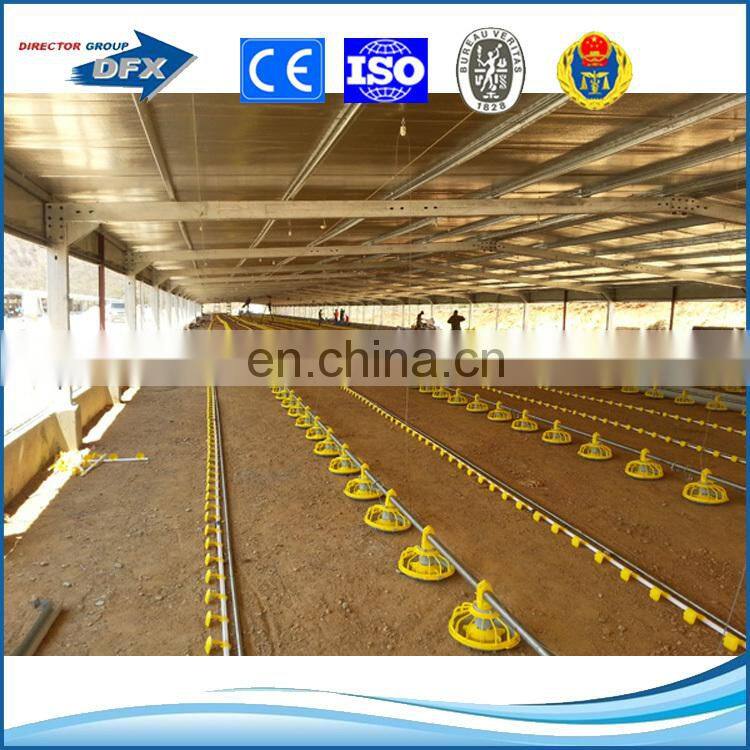

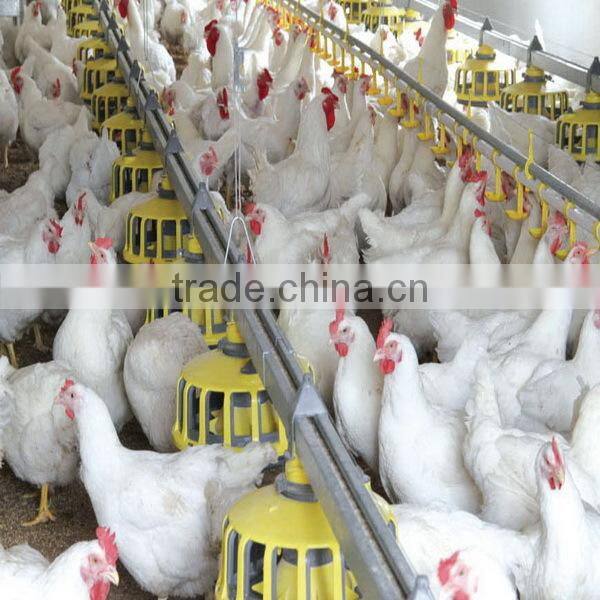

2.Feed pan system
This system deliver feed automatically through motor under the control of feed sensor,which ensure birds feeding during whole growing period.

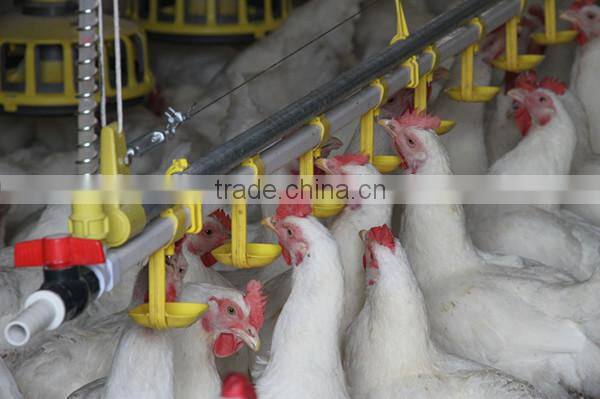

3.Nipple drinking system
This system can provide fresh and clean water for poultry which is crucial for the growth of poultry.The drinkers can be triggered from 360 degree which helps young birds start well and makes drinking easier.
4.Ventilation system
This system controls climate conditions,fresh air,humidity and temperature in poultry shed,it is vital for growing birds.This system include Poultry house fan, Cooling pad,Air inlet window.

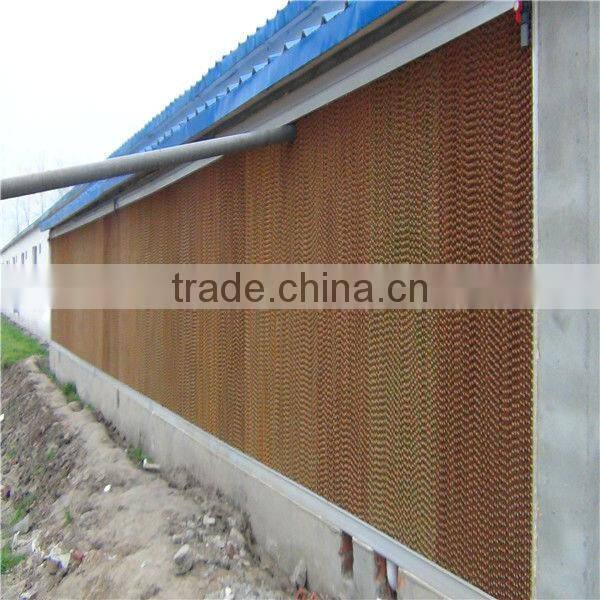

5.Curtain for cooling pad

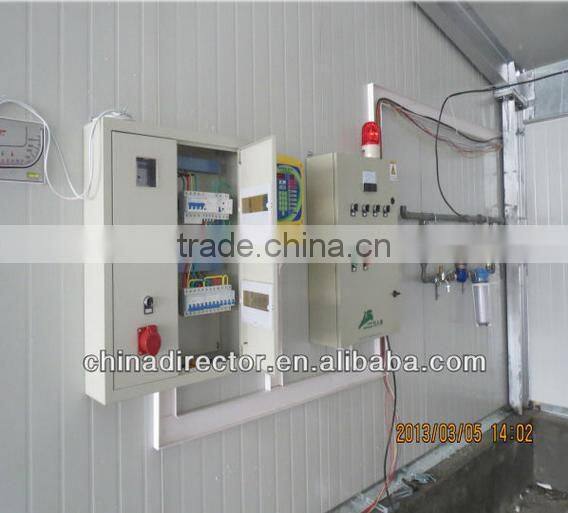

6.Environmental control system
This system saves the labor and the resources under the condition of assuring the optimum growth environment of the chickens. It is imported from Israel can set an optimum working mode according to the local climate and raising environment.
7.Spraying system
This system effectively cools,humidifies,dedusts and disinfects the henhouse(the temperature is quickly reduced by 3-8 degrees centigrade within a few minutes).

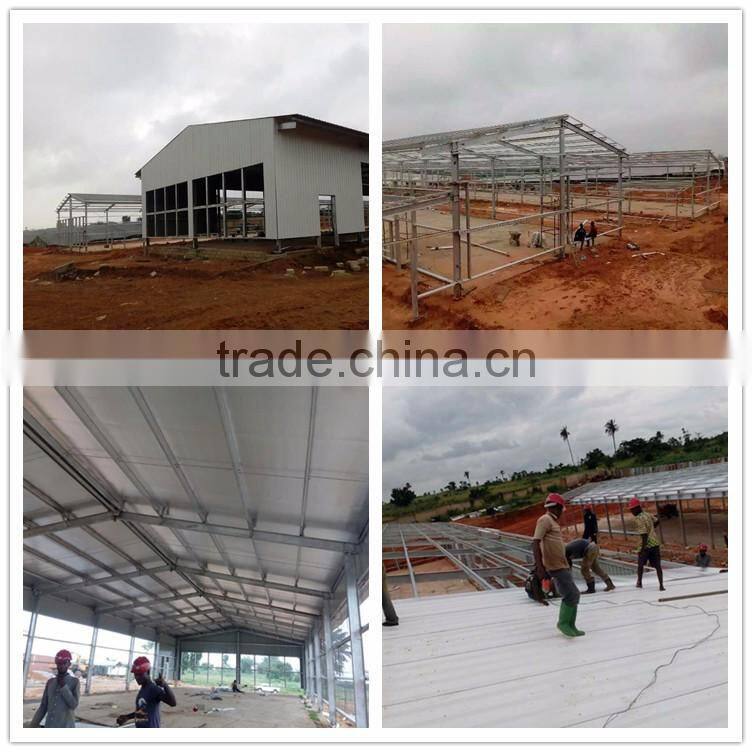

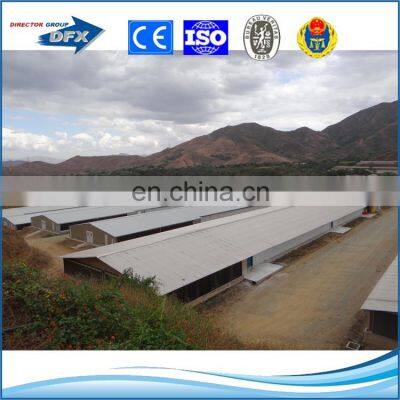

The chicken house project is in Venezuela
The chicken house project is in Ghana
Produce:
1. Production job based on steel building confirmed drawing.
2. We also can make the products with materials and drawing from customer.
3. Quality control work goes through every step during production.
4. Third Party Quality Check , customer on-site quality inspection and any other reasonable inspection way is ok.
After-sale service:
1.After production, we will supply steel building installation drawing
2.Send techinican to guide installation on site if customer request.
3. After years, building cladding need to be moved away. We will offer materials that need re-new.
4. If you have a building, not made by us, we can help check the strength of the steel structure.
Additional service:
1.If you have something need to be sent together. We can arrange loading container.
2. if need us help to buy other products, we can help source and buy for you.
3. if need us check the other factory, or need us inspect the container loading , we can help free.
4. when you to come to China for short travel, you need the language, hotel booking service. we would like help.
