Home > Products > Steel Warehouse > China Used Waterproof Metal Storage Shed Steel Buildings For Sale
China Used Waterproof Metal Storage Shed Steel Buildings For Sale
- 1000 per Month
- T/T Credit Card
You May Like
-
Light Gauge Structural Steel Prefabricated Selling Steel Structure Sheds
-
Metal Frame Building Quick Install Custom Design Prefab Steel Logistics Warehouse
-
Complete Design Steel Structure Shed Hen Cattle Sheep Farm House For Sale
-
Steel Structure Fabric Building in Samoa,Fiji,Nauru and Puppa New Guinea
-
Low Cost Industrial Shed Designs Prefabricated Steel Structure Large Shed
-
China Prefabricated large span steel roof trusses price
Product Description

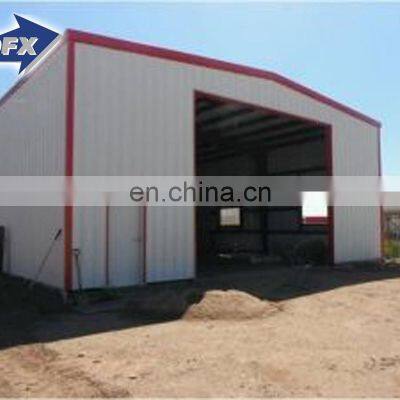

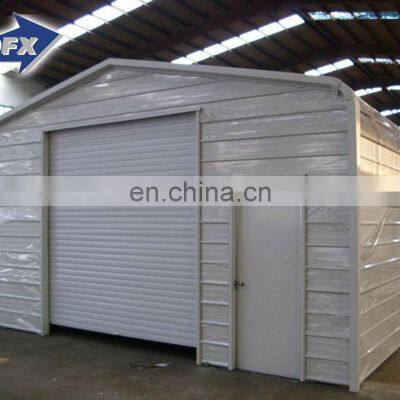

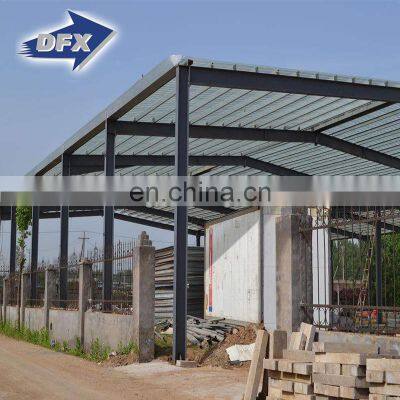

China Used Waterproof Metal Storage Steel Buildings For Sale
2. Specification
Items |
Specification | |
Main Steel Frame | Column | Q235, Q345 Welded H Section Steel,galvanized or painted |
Beam | Q235, Q345 Welded H Section Steel,galvanized or painted | |
Secondary Frame | Purlin | Q235 C and Z purlin,galvanized |
Knee brace | Q235 Angle Steel,galvanized | |
Tie Rod | Q235 Circular Steel Pipe,galvanized | |
Brace | Q235 Round Bar,galvanized | |
Vertical and Horizontal Support | Q235 Angle Steel, Round Bar or Steel Pipe,galvanized | |
Maintenance system | Roof Panel | EPS /Glass Fiber / Rock Wool / Pu Sandwich Panel /Steel Sheet |
Wall Panel | Sandwich Panel / Steel Sheet | |
Accessories | Window | Aluminiumn Alloy / PVC Window |
Door | Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door | |
Rainspout | PVC | |
Wind Resistance Grade | 12 Grades | |
Earthquake-resistance | 8 Grades | |
Structure Usage | Up to 50 years | |
Temperature | Suitable temperature.-50°C~+50°C | |
Certification | ,ISO9001:2008,ISO14001:2004 | |
Paint Options | Alkyd paiting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized. |
EPS Sandwich panel |
|
EPS sandwich panel(50mm,75mm,100mm) | |
Width of panels | 950mm/1150mm |
Lengths of panels | customized |
Thickness of color steel plate | 0.3-0.5mm |
Specific gravities | 8-16Kg/ |
Resistances of heat-transfer process | 0.035-0.05w/m.k |
Sound deadening | |
Limits of fire resistance | None |
Rock wool sandwich panel | |
Rockwool sandwich panel(50mm,75mm,100mm) | |
Width of panels | 950mm/1150mm |
Lengths of panels | customized |
Thickness of color steel plate | 0.3-0.5mm |
Specific gravities | 10.2-17.7Kg/ |
Resistances of heat-transfer process | ≤0.044w/m.k |
Sound deadening | 21.5db |
Limits of fire resistance | Grade A incombustible |
PU sandwich panel | |
PU sandwich panel (50mm,75mm,100mm) | |
Width of panels | 950mm/1150mm |
Lengths of panels | customized |
Thickness of color steel plate | 0.3-0.5mm |
density | ≥30Kg/m3 |
Water absorption for 24 hours | ≤1 |
thermal conductivity | ≤0.023w/m·k |
compressive strength | ≥200kpa |
fire proof rate | B1 |
1.Common type of the industrial building?
Reply:Portal frame is the usual type in the industrial workshop and warehouse shed.Other types also could be designed and manufacturer as per clients' request.
2.What's the quality grade of the steel structure components?
Reply:Q345 is used for main steel structure,Q235 is used for secondary steel structure.
3.How about the delivery time?
Reply:Usually,within 25-60 days after the order confirmed,also depends on the fabrication quantity.
4.How about the derust grade?
Reply:Ball blasting Sa2.5 on main steel structure manual derust St2.0 on secondary steel structure.
5.What kind panel used for the roof and wall?
Reply: Color corrugated steel sheet and sandwich panel could be used.Sandwich panel
performs well on the heat insulation,sound insulation.Common sandwich materials are EPS,glass wool and PU.
6.How to install it?
Reply: We will furnish you the detailed construction drawing and the construction
manual which could help you to erect and install the building step by step.We also could send the engineer your local to help you if needed.
7.Maintenance:
Reply:Finish paint need be done after the frame installed,and do it again after 6-8 months.So the surface will stay m ore time.
