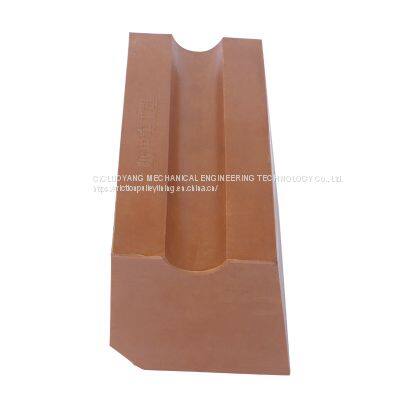

OEM High Friction Coefficient Shaft Hoists Friction Insert

OEM High Friction Coefficient Shaft Hoists Friction Insert thumbnail-1
OEM High Friction Coefficient Shaft Hoists Friction Insert thumbnail-2
OEM High Friction Coefficient Shaft Hoists Friction Insert thumbnail-3
OEM High Friction Coefficient Shaft Hoists Friction Insert thumbnail-4
OEM High Friction Coefficient Shaft Hoists Friction Insert thumbnail-5
OEM High Friction Coefficient Shaft Hoists Friction Insert photo-1
OEM High Friction Coefficient Shaft Hoists Friction Insert photo-2
OEM High Friction Coefficient Shaft Hoists Friction Insert photo-3
OEM High Friction Coefficient Shaft Hoists Friction Insert photo-4
OEM High Friction Coefficient Shaft Hoists Friction Insert photo-5
US$ 5 - 15 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
CIC
Place of Origin:
China
Model Number:
GDM326
Contact Supplier Request Quote Chat Now
CICLUOYANG MECHANICAL ENGINEERING TECHNOLOGY Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai, qingdao,tianjing
Delivery Detail:
10 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CIC
Place of Origin China
Model Number GDM326
After-sales Service Provided Engineers available to service machinery overseas
Condition New

In order to meet the domestic new demand on large-scale, ultra-large multi-rope friction hoist, our plant introduced raw materials from Germany to produce GDM326 high-performance friction pad, for supporting import and domestic large-scale, ultra-large hoists and for meeting the needs of different users.


Densityg/cm3
Hardness
Impact strength KJ/M2
Tensile strength Mpa
Bending Strength Mpa
Flexural modulus Mpa
Elongation at break %
Compression strength Mpa
1.40
58-65
15
17
13
920
62.3
33


Compared with other pads, GDM326 high performance friction pad with imported material has greater increases mainly in the friction coefficient, compression resistance, wear resistance and stability, so it can be trusted. It has been widely used and achieved very good economic benefits. GDM326 high performance friction pad with imported materials can be applied to other machineries that take use of friction transmission, and also be used as leading wheel friction pad for cable car.

The friction coefficient in different stiuation:
Surface pressure
Situation
8 KJ/cm2
12 KJ/cm2
16 KJ/cm2
20 KJ/cm2
25 KJ/cm2
30 KJ/cm2
Dry
0.55
0.55
0.51
0.51
0.49
0.49
Wet
0.60
0.60
0.60
0.61
0.62
0.62
Lubricated with turex604
0.36
0.34
0.34
0.33
0.30
0.30
Product Feature:
1.Under various working conditions, the friction coefficient of GDM326 friction liner is greater than 0.28, which fully meets the requirements of multi-rope friction hoist. 2.It has high mechanical properties, no harmful material to damage the wire rope, and it is easy to process the rope groove on site.





Product Tags: Shaft Hoists Friction Insert , rope tread liner
