Foundry Shell Sand Molding Machine Automatic Foundry Clay Sand Molding Line
US$ 1000 - 79999
/ Set
1 Set(Min. Order)
- Qingdao port or as customer's requirement
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 7 days
You May Like
-
Automatic Flaskless Green Sand Molding Machine Manufacturer
-
Automatic Hydraulic Sand Moulding Machine Foundry
-
Automatic Green Sand Molding Machine for Motor Shell
-
Green Sand Molding Machine for Casting Plumbing Valve Production
-
Pipe Fitting Production Automatic Sand Moulding Machine Horizontal
-
SINTO Technology Automatic Green Sand Moulding Equipment
Product Details
| Brand Name | bestech | Place of Origin | China | |
| Model Number | Z417 | Certification | new | |
| After-sales Service Provided | Engineers available to service machinery overseas | Warranty | 1 year | |
| Weight | 6500 | Dimension(L*W*H) | 3200*2200*2350 | |
| Condition | New | Voltage | customized | |
| Power(W) | 18.5 |
Product Description

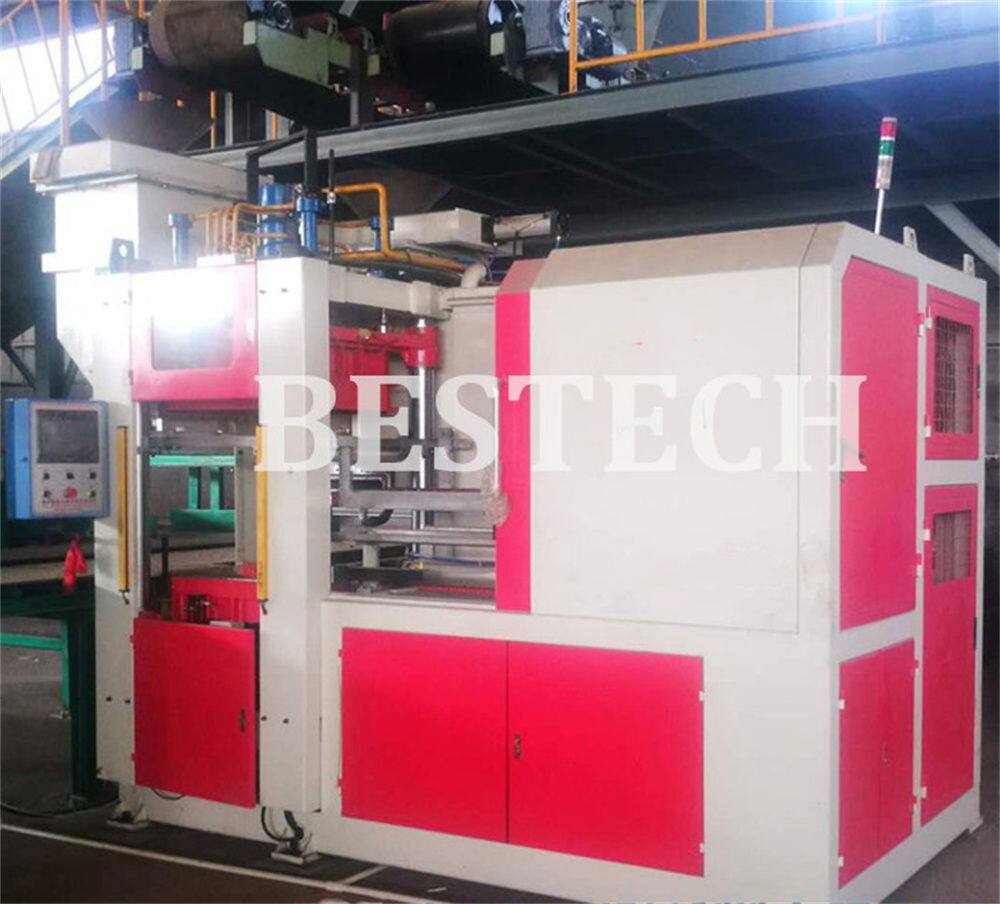

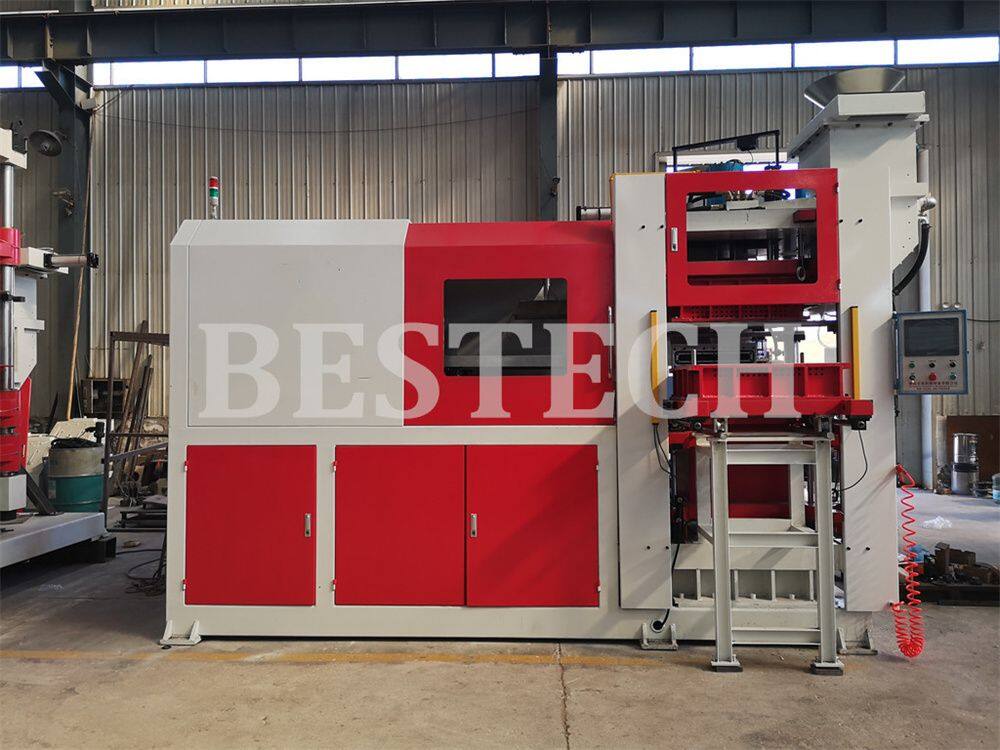

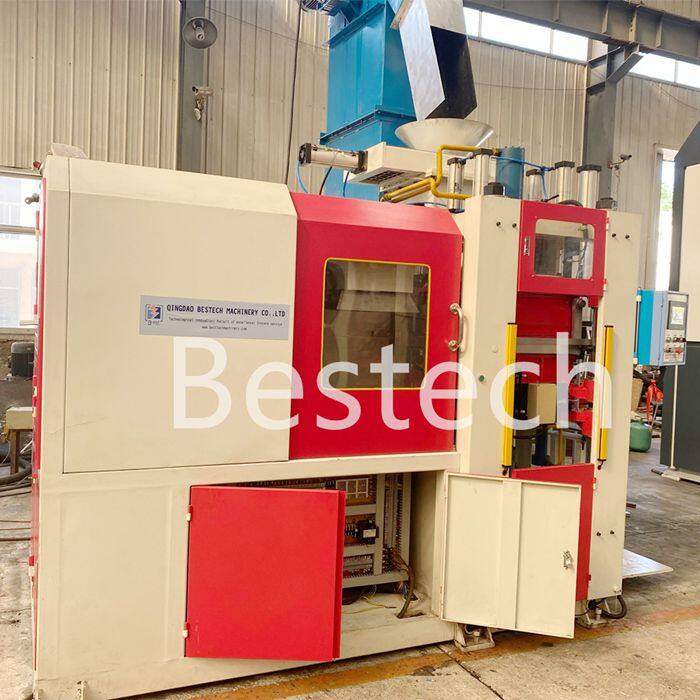

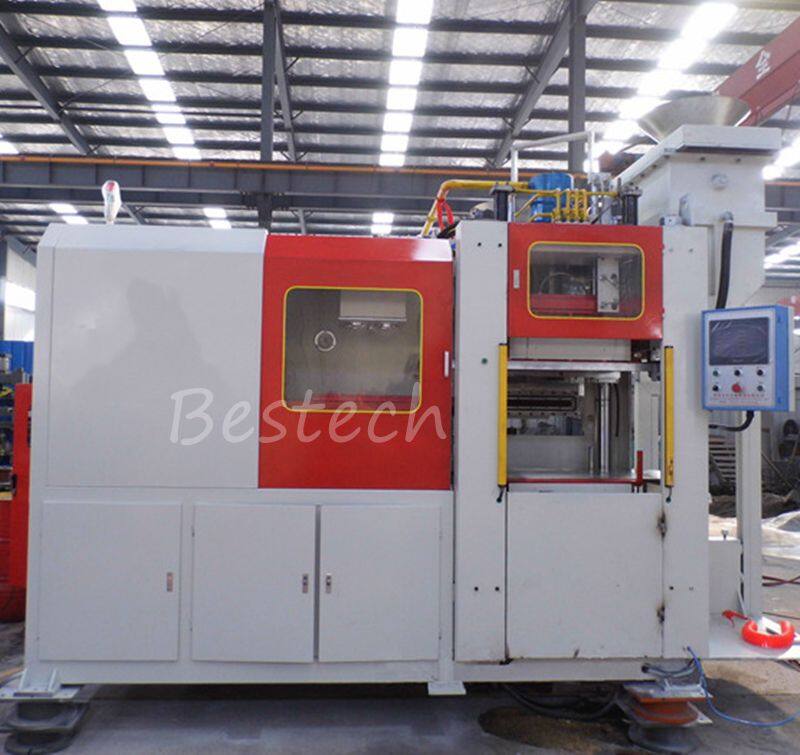

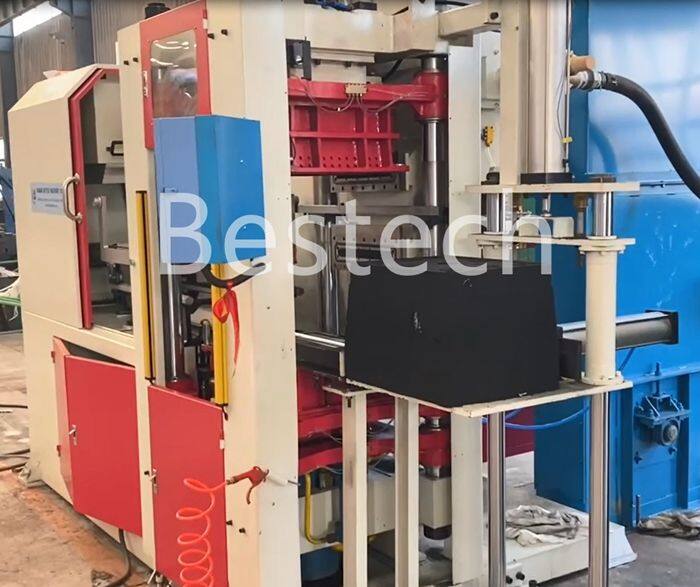

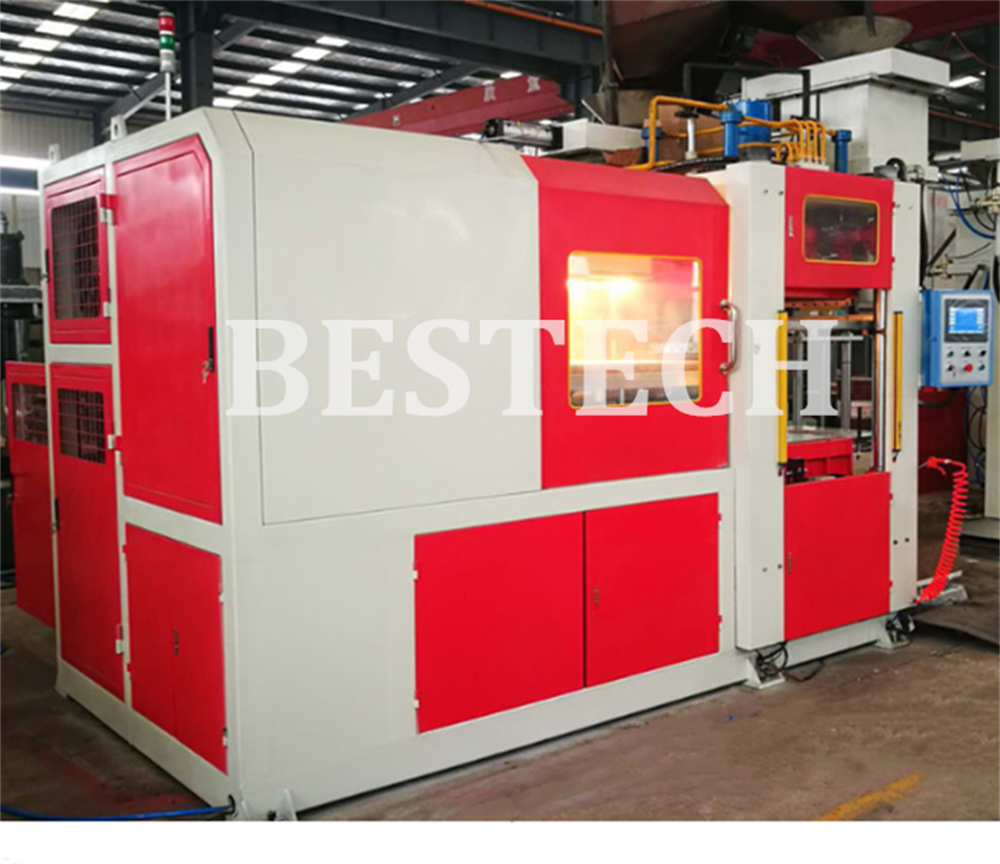

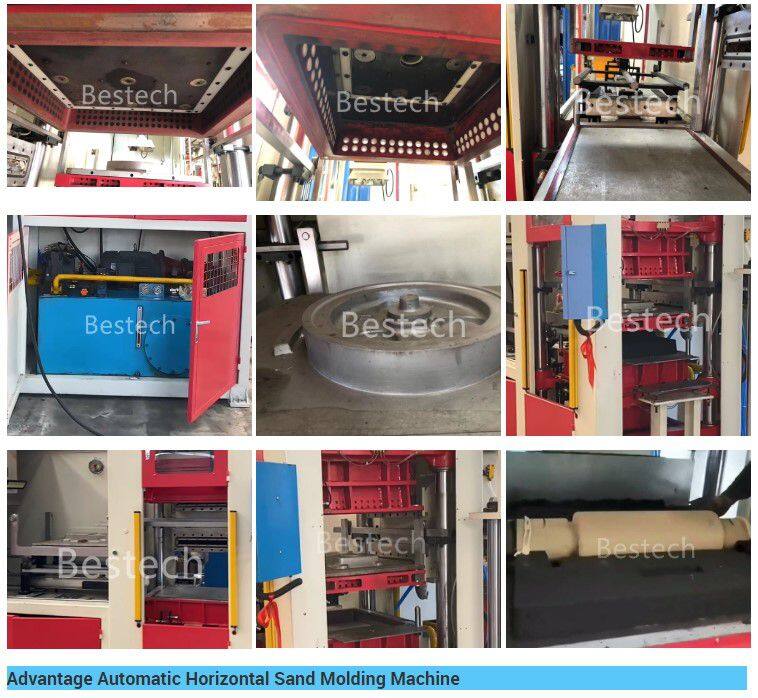

Green Sand Automatic Flaskless Moulding Line
Full Automatic Horizontal Flaskless Molding Line is mainly suitable for moulding production of valves, mechanical parts, automobile parts, hydraulic parts, pipe fittings and fastening these parts, also suitable for ductile iron,gray iron, malleable cast iron and non-ferrous metails these materials,with advantages of high production efficiency, low investment, quick effect, energy-saving and environmental protection. This moulding line mainly consists of moulding machine, pouring line, cooling line, castings conveying system, and electric control, hydraulic control and pneunatic control system, which can realize full automatic control of sand feeding, moulding, pouring, cooling and castings movement.
Main characteristics as follows:
1. Horizontal parting, suspended shot sand, horizontal casting.
Pneumatically feeds moulding sand in vertical direction, has the best filling performance and completely improve the shadow defect caused by horizontal shooting sand. Simple process,convenient moulds and pouring gate, high product rate and strong applicability.
Pneumatically feeds moulding sand in vertical direction, has the best filling performance and completely improve the shadow defect caused by horizontal shooting sand. Simple process,convenient moulds and pouring gate, high product rate and strong applicability.
2. Adjustable castings height and compaction pressure
The user can choose the casting height and compaction pressure under different castings flexibly to ensure the reasonable use of moulding sand.
The user can choose the casting height and compaction pressure under different castings flexibly to ensure the reasonable use of moulding sand.
3. Convenient template replacement.
Template installation: fixedy by four screws, the replacement is completed within five minutes, and the mold is changed frequently.
Template installation: fixedy by four screws, the replacement is completed within five minutes, and the mold is changed frequently.
4. Failure display
The fault is displayed on the touch screen, and the fault reason is displayed on the touch screen. The user can easily find the fault and take measures.
The fault is displayed on the touch screen, and the fault reason is displayed on the touch screen. The user can easily find the fault and take measures.
5. High reliability of hydraulic, pneumatic and electrical system.
The hydraulic, pneumatic and electrical components all adopt imported components to ensure the stable and reliable operation of the equipment and the service life.
The hydraulic, pneumatic and electrical components all adopt imported components to ensure the stable and reliable operation of the equipment and the service life.
6. Easier, more convenient and safer for core setting
All types of equipment manufactured by the company adopt a stable and reliable safety defense system.
All types of equipment manufactured by the company adopt a stable and reliable safety defense system.
7. Adopt servo hydraulic system to save energy.
With servo hydraulic system, the supply pressure of the system can be adjusted automatically according to the various stages of the equipment operation, reducing the loss of energy.
With servo hydraulic system, the supply pressure of the system can be adjusted automatically according to the various stages of the equipment operation, reducing the loss of energy.
technical parameter:
Parameter | XGA-01 | XGA-02 | XGA-03 |
Sand Mould Size (LxWxH) | 500x400x(120~150)
| 610x508x(130~180) | 700*600(120-150) |
Mould Way | Injection and Compaction | Injection and Compaction | Injection and Compaction |
Compaction specific pressure | ~1.0Mpa | ~1.0Mpa | ~1.0 Mpa |
Power Mode | Hydraulic pressure | Hydraulic pressure | Hydraulic pressure |
Max productivity | 40s/mould(Excluding core setting time) | 40s/mould(Excluding core setting time) | 40s/mould(Excluding core setting time) |
Company Information

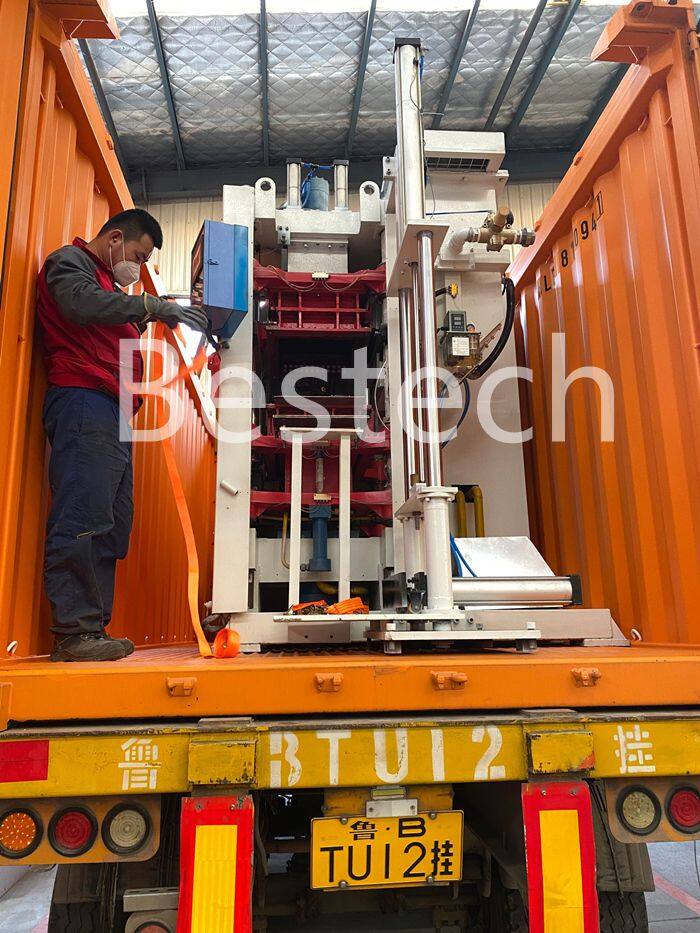

Packaging & Shipping
