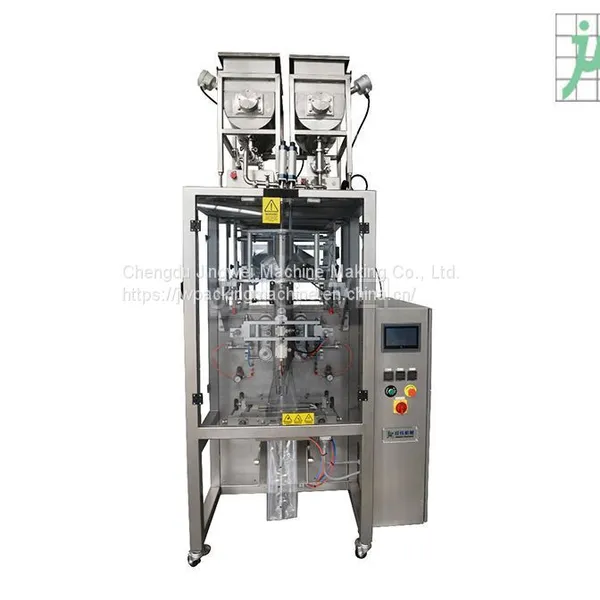

JW-SL720 Automatic Pillow Type Filling and Packing Machine
This back sealing VFFS packing machine is one of the models in the “medium bag machine “series. It is suitable for various material packing more than 100 gram.It is mainly for the packaging of various materials with a bag capacity of more than 100g.It can equipped with a variety of metering feeding structure such as volumetric type ,auger filling type,piston pump type ,drawer type and multi-header weighing type.In terms of bag forming ,there are also diversified packaging forms available: such as pillow bag ,three side bag ,hanging hole bag,triangle bag and etc.
Advantage & Features
1. Easy Operation, PLC control, HMI operation system, simple maintenance.
2. Filling: multi-header filling for solid material; auger filling for powder material; And Pneumatic metering pump filling for sauce and liquid material.
3. It can be Nitrogen filled packaging such as potato chips packing.
4. Machine material: SUS304
5. Saw Teeth cutting &Flat cutting.
6. Bag Length setting to achieve different size packing.
Packing Application
Suitable for packing snack foods like pop corn, shrimp chips and etc; nuts such as peanut, walnuts and etc. Chinese herbal pieces or strips; Hot pot sauce, flavor sauce, seasoning oil and etc.
Technical Parameters
Packing Speed |
5-30 bags/minute (depending on filling and bag material ) |
Filling capacity |
500-5000ml |
Pouch length |
100-600mm |
Pouch width |
250-350mm |
Sealing type |
back sealing |
Sealing steps |
three steps |
Film width |
520-720mm |
Max.rolling diameter of film |
≤400mm |
Dia of film inner Rolling |
¢75mm |
Power |
3.5KW, three-phase five line, 50Hz |
Compressed air |
0.4-0.6Mpa, 350NL/Min |
Machine dimensions |
(L)1400mm x(W)1300mm x(H)2100mm(Exclude the hopper) |
Machine weight |
700 kg |
