Description:

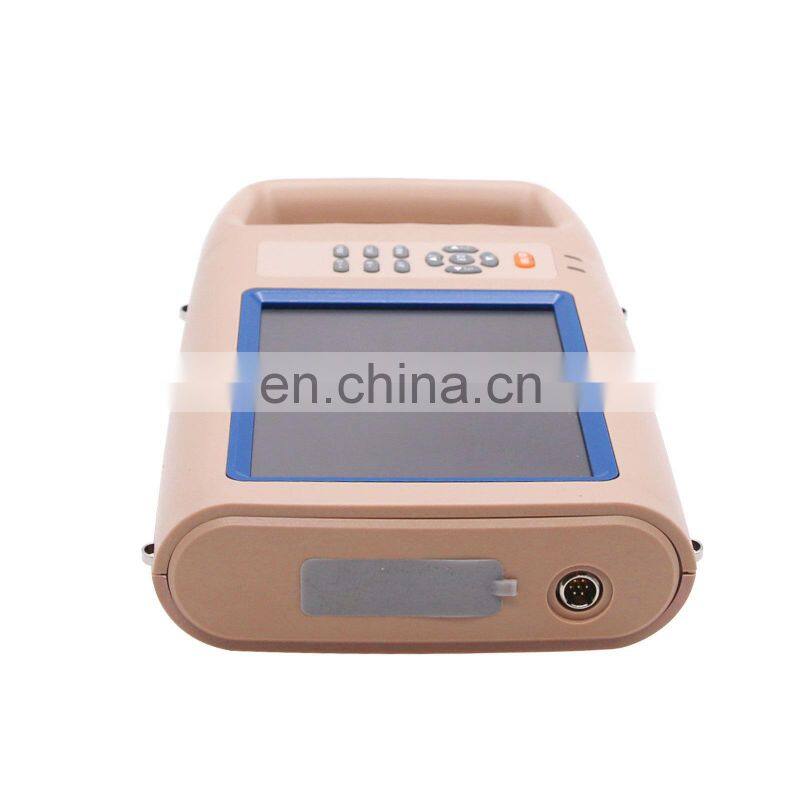

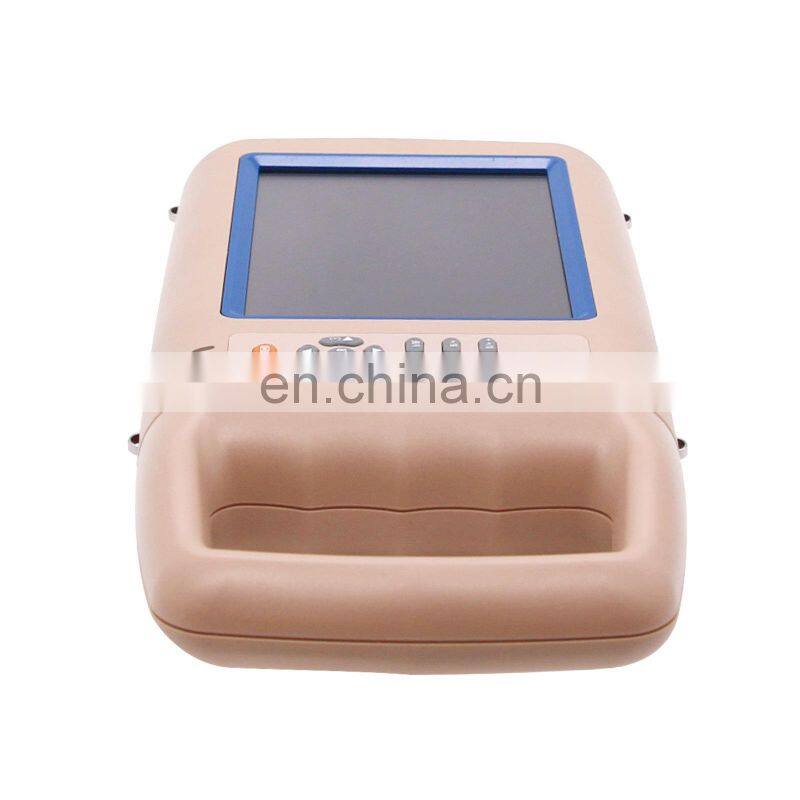

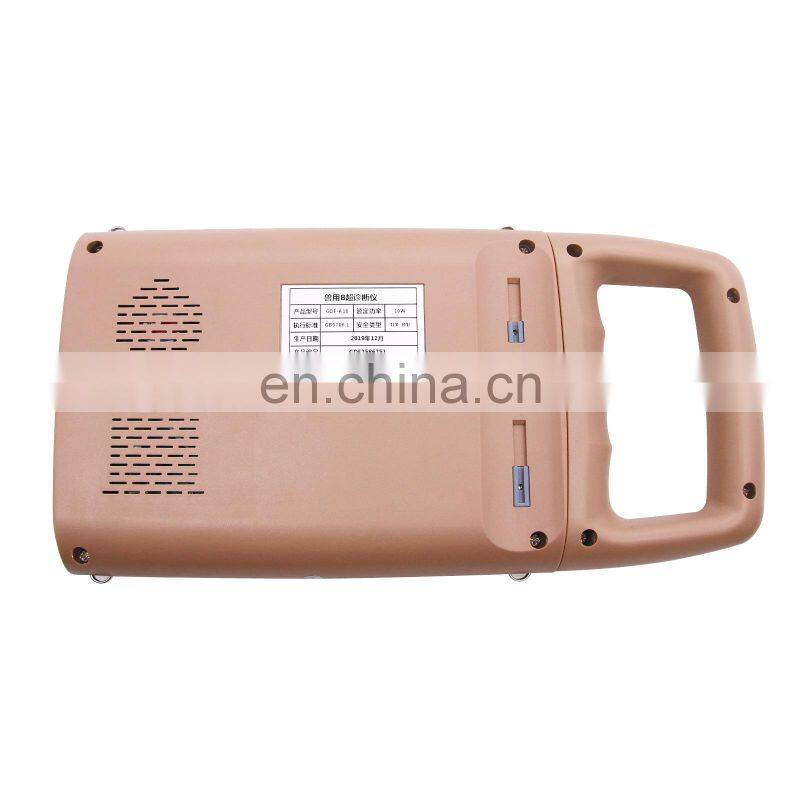

GDF-A10 is a 5.6-inch full digital high-definition display with 7 kinds of pseudo-color display, which can store 108 photos, and measure back fat thickness with one button.
It is portable and durable for it weighs 0.85kg.

Main Functions:
- For pregnant animals
- Master postpartum uterus recovery
- Diagnosis of uterine diseases
- Observing embryo development
- Measuring fetal heart rate
- Estimate the number of babies

Specifications:
- Model No.: GDF-A10
- Standard Probe: 3.5MHz Waterproof Fan-shaped Probe
- Display: 5.6 Inch LCD
- Resolution 640 * 480
- Display Depth: 60-190 mm
- Image Gain: 0-30 Adjustable
- Image Brightness: 0-15 Adjustable
- Image Contrast: 0-15 Adjustable
- Gray Scale: 256 Levels
- Blind Area: 8mm
- Image Display Angle: 90°
- Pseudo-color Processing: 7-color Pseudo-color Processing (Red, yellow, blue, green, purple, cyan, black and white)
- Measurement Functions: Perimeter, Area, Distance, Volume and Others
- Detecting Back Fat Thickness: ≤45 mm±1mm
- Picture Storage: 108pcs
- Character Setting: Tri-color Display
- Language: Chinese/English
- Power Adapter: DC 14V / 3A

Package Included:
- 1 x HD Display
- 1 x Waterproof Probe
- 1 x Power Adapter
- 1 x Carry Case

Package: Normally we use the standard exporting packaging. We also can according to clients' request .

 Shipping :

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier  we are co-operating at present.

2. By Air: Delivery from the Shanghai airport to customers’ destination city air port.

3. By Sea: Delivery from the Shanghai sea port .

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A: Samples arrived often need 3-5 days.

Q3. Do you have any MOQ (minimum order quality)limit?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed an order?

A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.

Q6. Is it acceptable to print my logo on the product?

A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer one-year warranty for our products.

Q8: How to deal with the flaw?

A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%
