ZB-M08 Set-top Reflection Incident Light Metering Film Photography Luminometer Camera Light Meter

ZB-M08 Set-top Reflection Incident Light Metering Film Photography Luminometer Camera Light Meter

Specification:
Metering angle: 45° average metering (default reflected light, can also be set to incident light)
Display screen: 0.96 inch 0LED
Battery capacity: 300mAh
Charging specification: 5V/450mA
ISO range: ISO6~ISO6400
Aperture range: F1.0~F64
Shutter range: 30S~1/8000S
Endurance: continuous metering for 26 hours
Working current: 8mA~10mA
Standby current: 3.5μA
Reflected EV range: -2.0~19.0
Incident EV range: -4.5~15.5
Exposure compensation range: -5.0~+5.0

Instructions:
1. After receiving the goods, it is recommended to fully charge it before using
2. Metering: continuous metering starts when it is turned on, and stops metering when turned off.
3. The operation dial on the right rear side of the machine has three operation modes, press forward, press backward, and press inward (leftward).
4. Selection of priority mode: operate the dial to go in (left) and press to modify the priority mode.
5. When the screen arrow points to the aperture value, it indicates the aperture priority mode. Press the dial forward or backward to increase or decrease the value. Long press the dial forward or backward to quickly adjust the value.
6. The arrow on the screen points to the shutter time, indicating the shutter priority mode, the same dial can adjust the value.
7. Long press the dial in (left) for more than 1 second to set the sensitivity. At this time, the screen arrow points to ISO. Press again to exit the sensitivity setting. When the sensitivity is set, the machine can also measure light continuously.

Features:
-Long standby, continuous metering for 26 hours
-Ultra high precision, 0.1~100,000 Lux
-32-bit MCU + high-precision sensing

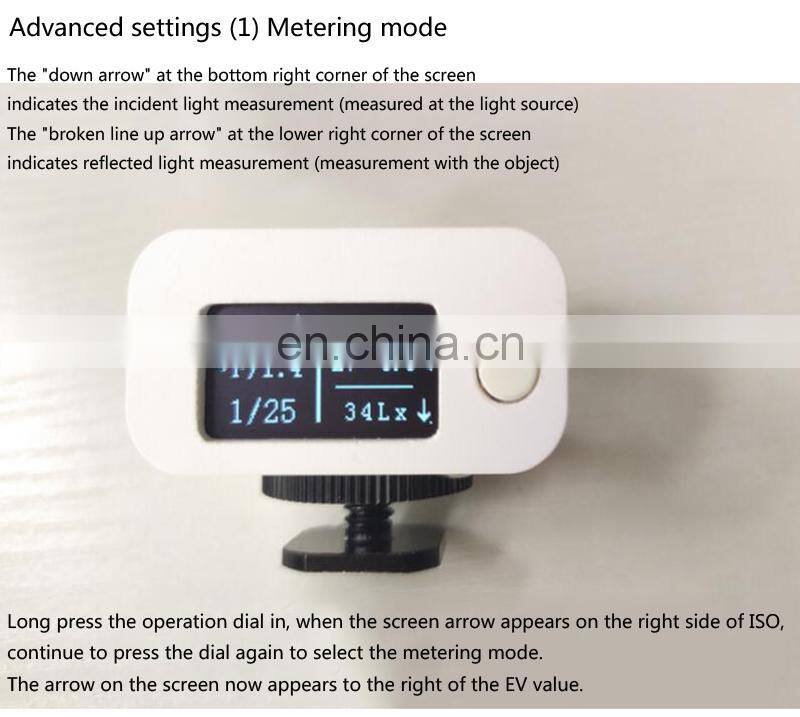

-Support reflection metering, incident metering
-Support multiple charging ports
-Parameter memory function

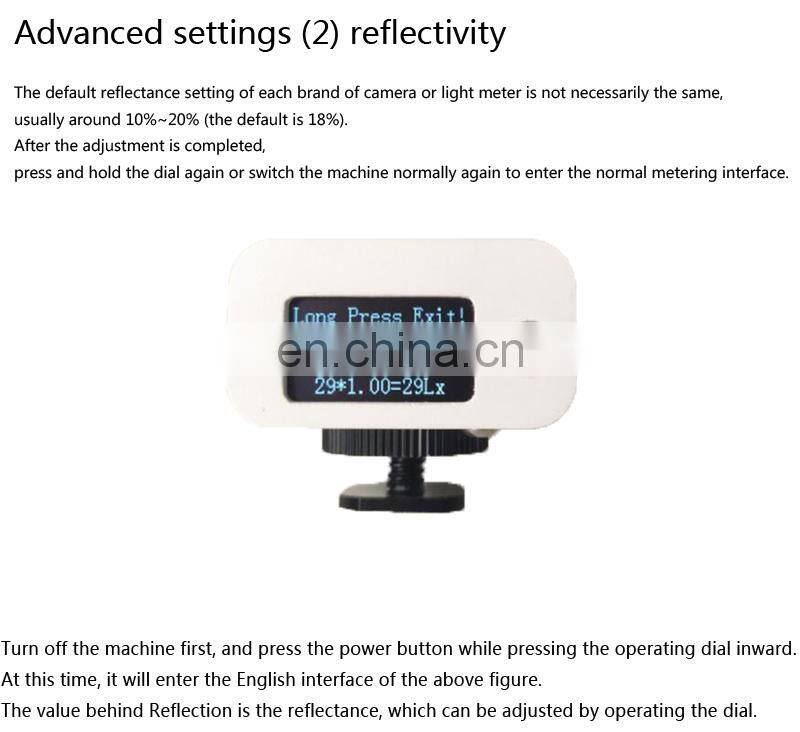

-Adjustable reflectivity

Three elements of exposure (gear description):
Aperture F, the range of gear can be set as follows:
F/1.0, 1.2, 1.4, 1.8, 2.0, 2.5, 2.8, 3.2, 3.6, 4.0, 4.5, 5.0, 5.6, 6.3, 6.7, 7.1, 8.0, 9.0, 9.5, 10, 11, 13, 14, 16, 18, 19, 20, 22, 25, 29, 32, 45, 64

Shutter T, the range of gear can be set as follows:
30s, 15, 8, 4, 3, 2, 1.6, 1.3, 1, 1/2, 1/3, 1/4, 1/5, 1/6, 1/8, 1/10, 1/13, 1/15, 1/20, 1/25, 1/30, 1/40, 1/50,1 /60, 1/80, 1/100, 1/125, 1/160, 1/200, 1/250,1 /320, 1/400, 1/500, 1/640, 1/800, 1/1000, 1/1250, 1/1600, 1/2000, 1/4000, 1/8000s

Sensitivity IS0, the range of gear can be set as follows:
6, 8, 10, 12, 16, 20, 25, 32, 40, 50, 64, 80, 100, 125, 160, 200, 250, 320, 400, 500, 640, 800, 1000, 1600, 3200, 6400, 8000

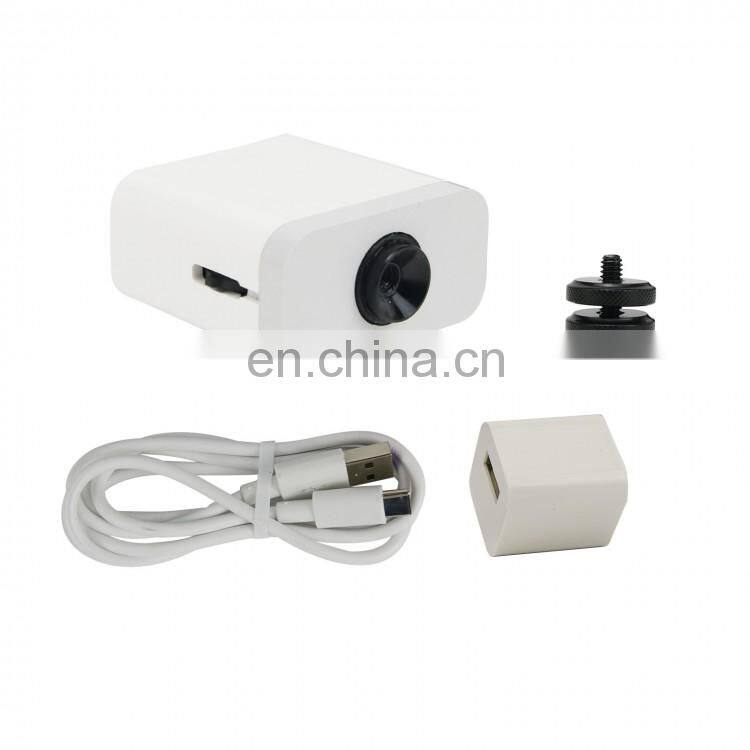

Package List:
-1 x Camera Light Meter
-1 x 5V 1A Charger
-1 x USB-A to Type-C Charging Cable

Detail photo
