10MHz-6GHz RF DC Block Bias Tee Feed With N Connectors

10MHz-6GHz RF DC Block Bias Tee Feed with N Connectors

Product Applications:
A) Broadband amplifier:
- Some broadband amplifiers do not have DC blocking capacitors inside, and the output needs to be powered and requires a bias tee.
- Some amplifiers have integrated blocking capacitors, so no additional bias is needed.

B) Fiber optic communication, laser drive:
- The driving current required by laser diode is injected through the DC terminal of the bias device;
- Communication data is injected through RF terminal.

Product Principle:
- In a broadband amplifier feed circuit, the high frequency is affected by parasitic capacitance parameters and the performance drops sharply, so the feed needs to use Bias Tee.
- Bias Tee consists of ultra-wideband, near-ideal, high-frequency inductors and capacitors without resonance points.
- DC blocking capacitor: DC blocking to prevent DC voltage leakage to subsequent circuits or test instruments;
- High-frequency inductance: isolates AC information to prevent high-frequency signals from leaking to power supply system.

Technical Parameters:
1. Using Frequency: 10MHZ-6GHz
2. Loss: 0.5dB@3GHz; 1.2dB@6GHz
3. Withstand Voltage: DC 50V
4. Limit Current: 200MA

Package Included:
- 1 x Bias Tee

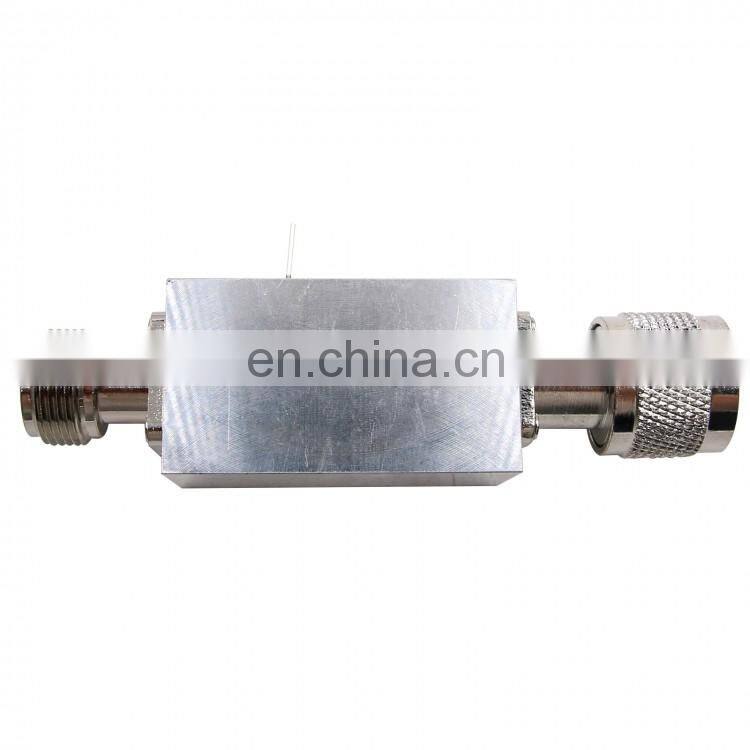

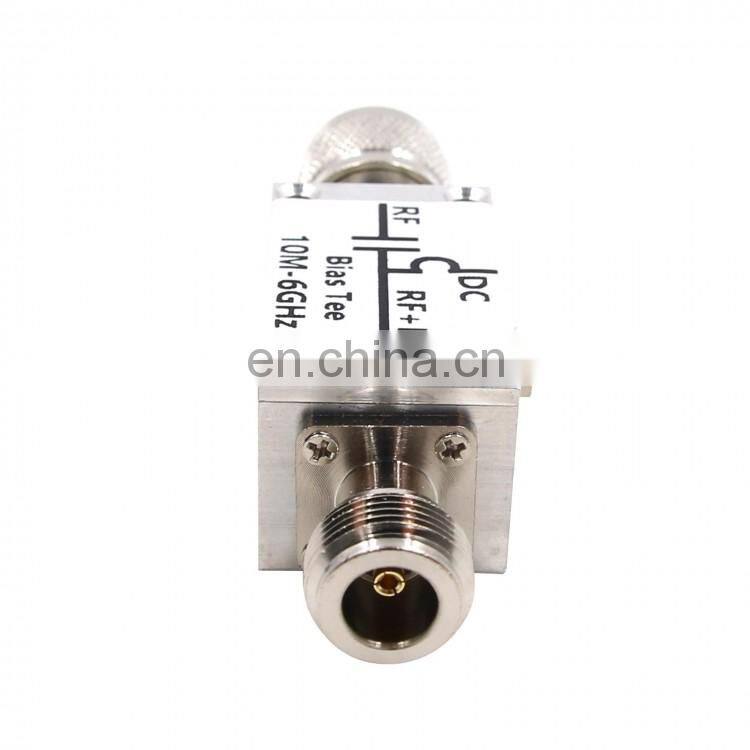

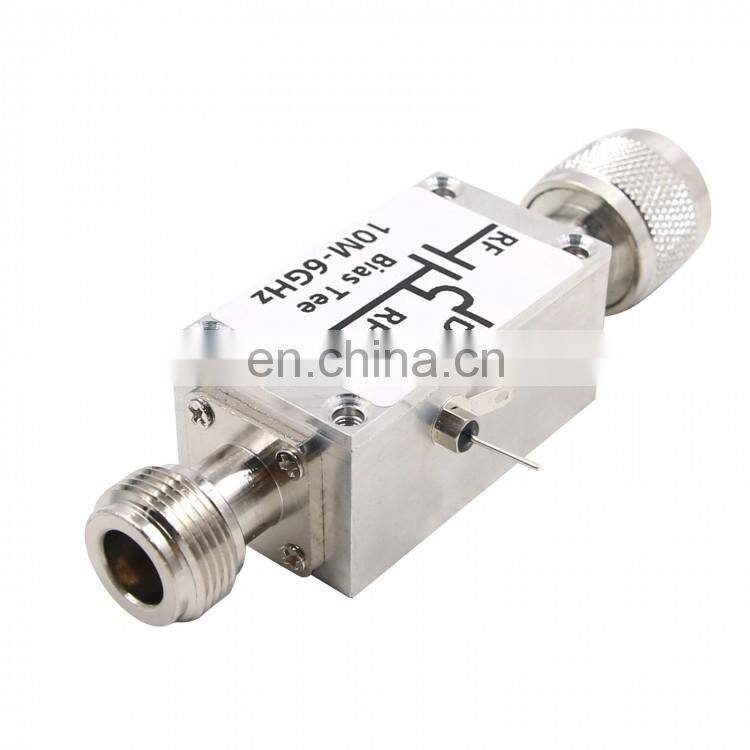

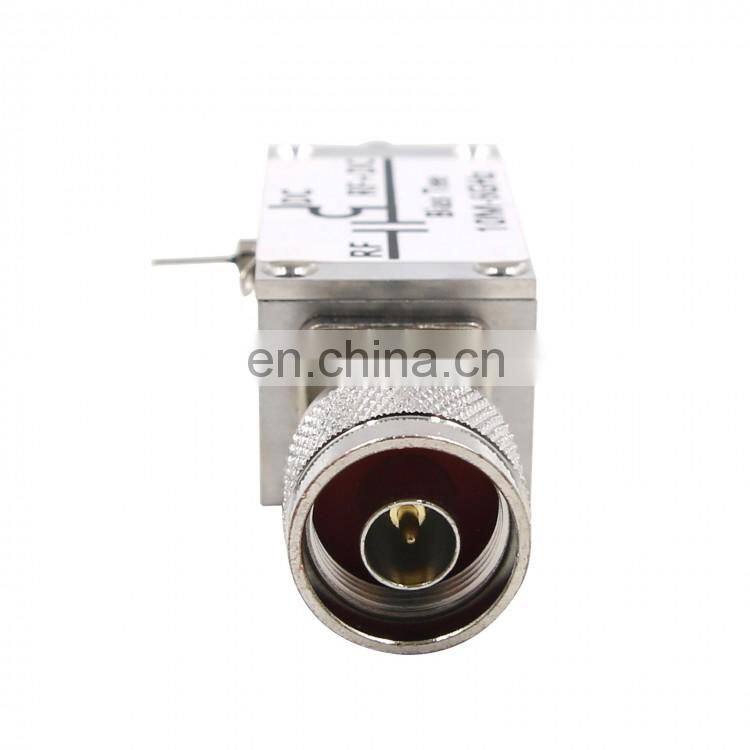

Detail photo

FAQ

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A: Sample ususally take within 3 working days.

Q3. Do you have any MOQ (minimum order quality)limit?

A: For standard product, usually 1pcs/item. For the OEM order, MOQ at least 50pcs/item.

Q4. How to proceed an order?

A: After buyer confirm the product&price is ok and ready to buy, order will be please tell us your delivery address, phone number, sometimes need email. Then we can draft the order and it will have a alibaba paying link.

Q5. After paid, what info of the supplier provided?

A: Tracking number

Q6: Do you offer guarantee and after-service for the products?

A: Yes, 6- 12 months warranty for our products. Note: We will do not take the responsibility for Man-made damage or improper operation. Delivery demage will be negotiate.

Packing and Shipping

Package: Normally we use the standard paper package to export worldwide.

Shipping :

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier  we are co-operating at present.

2. By chinese small parcel, usually for the customer to save the cost. But Chinese small parcel have the risk for lost parcel. Note: If we got the parcel back, we only can refund the item cost. If we didn't get the parcel,then sorry we can't refund any.

3. By Air: Delivery from the Shenzhen airport to customers’ destination city air port.

4. By Sea: Delivery from the Shenzhen sea port .
