Fully compatible with USRP B210 high performance SDR

Description:
- On the basis of the original design, improved USB3.0 performance, an increase of T / R switching signal output, LED panel signal output interface, etc., for high-performance 150,000 logic gate LX150 FPGA, PCB basic use of radio, effective control Line impedance and RF performance.
- While maintaining the original performance under the premise of the development of a dedicated up converter, so B210 can work in the shortwave band, extending the B210 operating frequency, with the inverter after the operating frequency of 1.8M-6GB. And can be followed by upgrading the down converter module to support shortwave transmission. Please refer to the product connection for the inverter
Measured, the product, receiving CW modulation signal, 6DB signal to noise ratio, 2G within the frequency of receiving sensitivity of-120dbm. The reception sensitivity threshold of the 204G frequency is -115dbm. 4G above the receiving threshold of -110dbm
Measured, the product, launch CW modulation signal, 3G or less, the maximum transmit power is greater than 10DBM, 1GHz typical value of 18dbm, 2GHz typical value of 15dbm. 4GHz or more than 8dbm, 4.5GHz typical value of 8.5dbm.

Features:
- First fully integrated, two-channel USRP device with continuous RF coverage from 70 MHz – 6 GHz , can do 1.8MHz to 6GHz with the up converter
-  Full duplex, MIMO (2 Tx & 2 Rx) operation with up to 56 MHz of real-time bandwidth (61.44MS/s quadrature)
-  Fast and convenient SuperSpeed USB 3.0 connectivity
- GNURadio and OpenBTS support through the open-source USRP Hardware Driver™ (UHD)
-  Open and reconfigurable Spartan 6 XC6SLX150 FPGA (for advanced users)
-  Early access prototyping platform for the Analog Devices AD9361 RFIC, a fully integrated direct conversion transceiver with mixed signal baseband

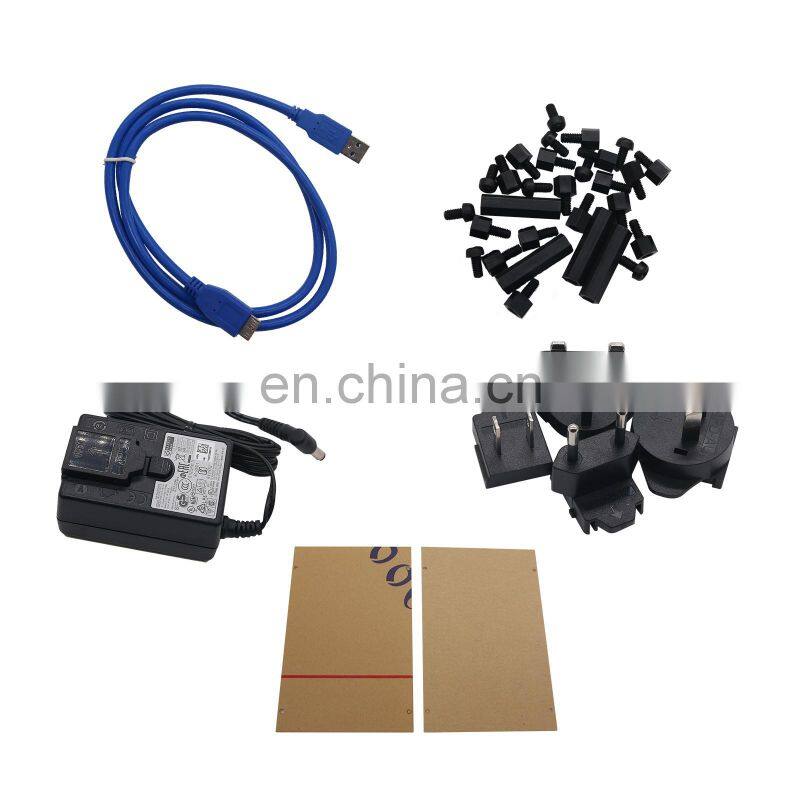

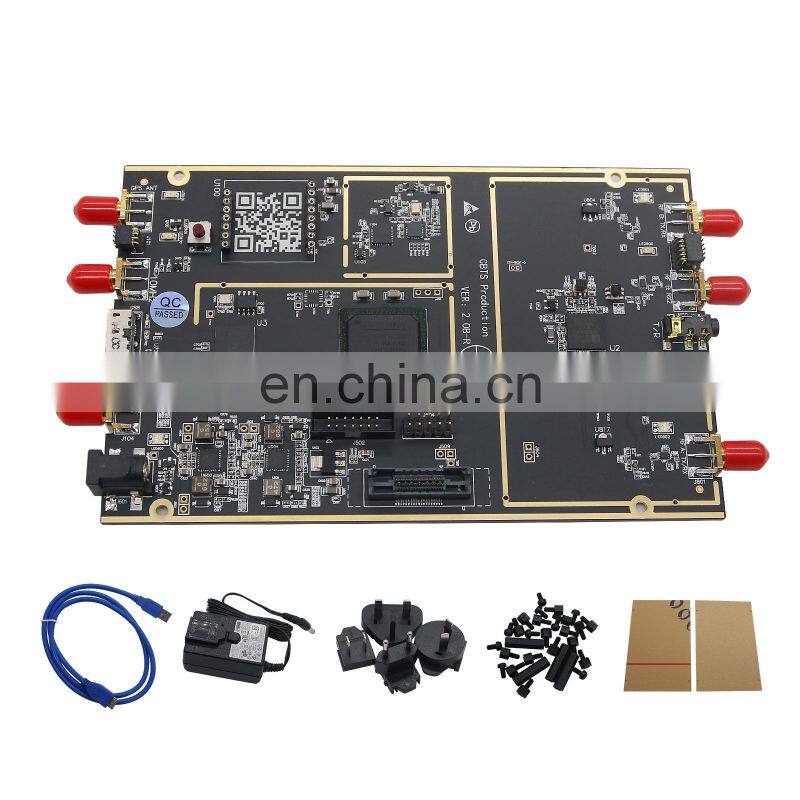

Package:
- 1 x sdr board
-  1x up converter

Package: Normally we use the standard exporting packaging. We also can according to clients' request .

 Shipping :

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier  we are co-operating at present.

2. By Air: Delivery from the Shanghai airport to customers’ destination city air port.

3. By Sea: Delivery from the Shanghai sea port .

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?

A: Samples arrived often need 3-5 days.

Q3. Do you have any MOQ (minimum order quality)limit?

A: Low MOQ, 1pc for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed an order?

A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.

Q6. Is it acceptable to print my logo on the product?

A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer one-year warranty for our products.

Q8: How to deal with the flaw?

A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%
