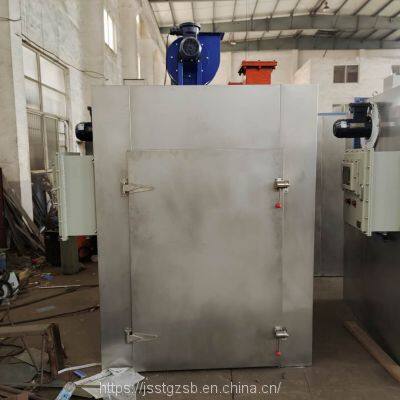

Help CenterCT-C Series Hot Air Drying Oven
Related Products
-
CT-C-0 Special Stainless Steel Oven for Pharmaceutical FactoryUS$ 3900 - 5000MOQ: 1 Set -
CT-C-0 Special Oven for Chemical PlantUS$ 3900 - 5000MOQ: 1 Set
-
CT-C-0 Medicine DryerUS$ 3900 - 5000MOQ: 1 Set
-
CT-C-0 Chinese Herbal Medicine DryerUS$ 3900 - 5000MOQ: 1 Set
-
CT-C-0 Electric Heated Industrial OvenUS$ 3900 - 5000MOQ: 1 Set
Overview:
CT-C series hot air circulation oven is equipped with low noise and high temperature resistant axial flow fan and automatic temperature control system. The whole circulation system is completely closed, so that the thermal efficiency of the oven is increased from 3-7% of the traditional oven to the current 35-45% , the highest thermal efficiency can reach 50%. The successful design of CT-C type hot air circulation oven has made our country's hot air circulation oven reach the advanced level at home and abroad. It saves a lot of energy for our country and improves the economic benefits of enterprises. In 1990, the industry standard was issued by the State Medical Administration, and the unified model was RXH.
Application range:
It is widely used in the heating, curing, drying and dehydration of materials and products in the pharmaceutical, chemical, food, light industry, heavy industry and other industries. Such as: raw materials, crude drugs, Chinese herbal decoction pieces, powders, granules, granules, packaging bottles of large and small honey pills, pigments, dyes, dehydrated vegetables, dried fruits, sausages, plastic resins, electrical components, baking paint, etc.
Features:
1. Most of the hot air circulates in the box, with high thermal efficiency and energy saving.
2. Using forced ventilation, there is an adjustable air distribution board in the box, the material is evenly dried, and the heat source can be steam, heat transfer oil, electricity, hot water, far infrared, etc., with a wide range of choices.
3. The whole machine has low noise, balanced operation, automatic temperature control, and convenient installation and maintenance.
4. It has a wide range of applications and can dry various materials. It is a general drying equipment.
Equipment related instructions:
1. The heating source includes steam, electricity, far-infrared, and electric steam for users to choose. 2. Use temperature: steam heating 50-130°C, up to 140°C.
3. Electricity, far infrared temperature 50-300 ° C.
4. Equipped with automatic control system and computer control system for users to choose. 5. Commonly used steam pressure is 0.2-0.8Mpa (2-8kg/cm2).
6. Equipped with electric heating, 15KW according to L type, practical 5-8kw/h. 7. Special requirements will be explained when ordering.
8. The price of non-standard oven is negotiable.
9. If the operating temperature is greater than 140℃ or less than 60℃, please indicate it when ordering.
10. The size of the drying car and the drying plate in our factory is uniform and can be interchanged.
11. Baking tray size: 460×640×45mm.
