1253-8001 80V 600A DC Motor Speed Controller DC Programmable PMC Forklift Pump
- 1000 per Month
- T/T Credit Card
- 36V 48V 275A 1266A-5201 Golf Cart Motor Controller Replacement for 1510A-5251 Curtis Controller for Golf Cart
- CNC MACH3 Wireless Electronic Handwheel 6-Axis Manual Controller USB Handle MPG
- 40x40mm Crossed Guide Rail SEMXYZR-40 XYZR 4-Axis Micrometer Linear Stage Manual Linear Stage
- SEMY100-AC 100x100mm 2-Axis XY Micrometer Linear Stage Manual Linear Stage
- 60x60mm w/Crossed-Roller Bearing SEMY60-AC 2-Axis XY Micrometer Linear Stage Manual Linear Stage
- 40x40mm Crossed-Roller Bearing SEMY40-AC 2-Axis XY Micrometer Linear Stage Manual Linear Stage
Product Description

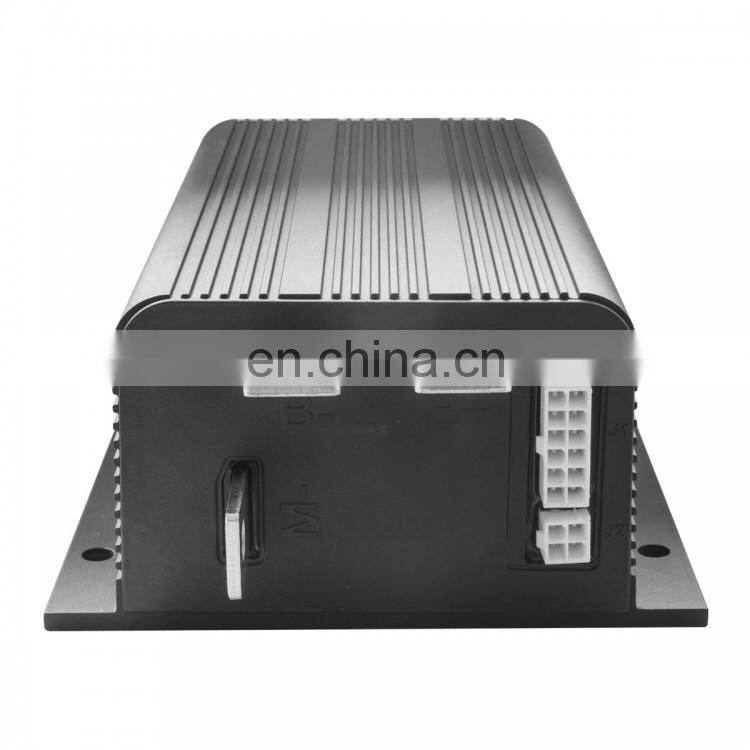

1253-8001 80V 600A DC Motor Speed Controller DC Programmable PMC Forklift Pump
Note:The buyer should confirm with the seller the throttle type (0-5kΩ, 5k-0Ω or 0-5V).
Product Description:
CURTIS 1253-8001 Controller
80V DC Series Motor Controller
Hydraulic Pump Motor Controller
Key Features:
- Curtis Model: 1253-8001 (HELI / HANGCHA Model: EVC255-8001)
- Norminal Battery Voltage (Volts): 80V DC
- The buyer should confirm with the seller the battery system voltage and the throttle type (0-5kΩ, 5k-0Ω or 0-5V).
- By defaut, we will the controller of setting of 80V / 600A / 0-5kΩ (2-Wire Potentiometer Throttle).
Notice: By default, we will deliver the controller with default setting of 80V / 600A / 0-5kΩ. For better applying the controller to your system, the buyer should confirm with the seller the throttle type (0-5kΩ, 5k-0Ω or 0 – 5V, etc.)
User Manual:Click here
Overview:
- The Curtis 1253 provides a cost-effective solution for control of high power DC series-wound hydraulic pump motors. Its system integration features are designed primarily for Class I and Class II material handling vehicles. Typical applications include the pump systems of material handling trucks (counterbalance trucks, reach trucks), aerial lift platforms (scissor lifts, articulating/telescoping booms), and other industrial vehicles.
- The 1253 accepts inputs from up to four Speed Select switches and also from an analog throttle. Its internal microprocessor-based logic controller provides maximum flexibility at minimum cost. Its performance characteristics can be tailored through an array of programmable parameters.
- The 1253 controller is fully programmable through a Curtis Model 1313-4431 Handhold Programmer or 1314-4402 PC Programming Station. The programming device provides diagnostic and test capability in addition to configuration flexibility.
Key Features:
- Curtis Model: 1253-8001
- Norminal Battery Voltage (Volts): 80V
- Amature Current Limit (amps): 600
- Programmable Undervoltage Cutback (Volts): 54-70
- Overvoltage Cutoff (Volts): 102
- PWM operating frequency: 15.6 kHz
- Electrical isolation to heatsink (min.): 500 VAC
- KSI input voltage: 28–60V DC
- KSI input current (no contactors engaged):
- 60 mA without programmer
- 130 mA with programmer
- Logic input current: < 1 mA
- Status LED output current (max.): < 2 mA
- Heatsink overtemperature cutback: linear cutback starts at 80°C; complete cutoff at 120°C
- Heatsink undertemperature cutback: 50% current below -25°C
- Throttle Type: 0-5K Ω (default setting), 5K-0 Ω, 0-5V or single-ended 3-wire potentiometer (1kΩ to 10kΩ range)
- Dimensions: L196xW146xH77 mm
- Net Weight: 2.6 kg
- Operating ambient temperature range: -40°C to 50°C
- Storage ambient temperature range: -40°C to 85°C
- Package environmental rating: IP54
Features include:
- Smooth and Quiet Control
Programmable acceleration rates provide smooth application of pump motor torque.
15.6 kHz PWM frequency for near-silent operation.
- Programmable Flexibility
Easily programmable through a Curtis programming device.
Four Speed Select inputs (SS1.SS4) with individually programmable top speeds.
Programmable throttle input for precise speed control with a variety of signal sources.
Programmable turn-off delay allows SS4 to be used for power steering.
Adjustable minimum speed setting to ensure pump lubrication and to maintain steering system pressure.
- Robust Safety and Reliability
Interlock feature disables the controller when operator is not present.
Programmable startup lockout prevents inadvertent operation.
Seamless integration with Curtis gauges (models 803, 841, 906, and enGage. IV) for lift lockout function.
Lift lockout disables the controller at low battery state of charge.
Redundant watchdog timer circuits ensure proper software operation.
External Status LED output for easy troubleshooting.
Short-circuit protection on main contactor driver.
Precharge control prevents pitting of contactor tips at startup.
Thermal cutback provides protection to the controller.
Rugged housing meets IP54 environmental ratings.
- Easily programmable through the Curtis Model Curtis Model 1313-4431 Handhold Programmer or 1314-4402 PC Programming Station.
CURTIS DC Series Motor Controller Parameter List:Click here
Package List:
- 1 x CURTIS 1253-8001 Motor Speed Controller

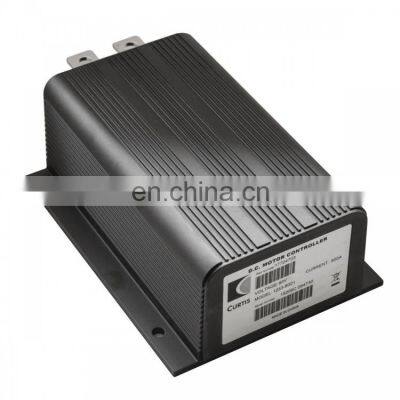

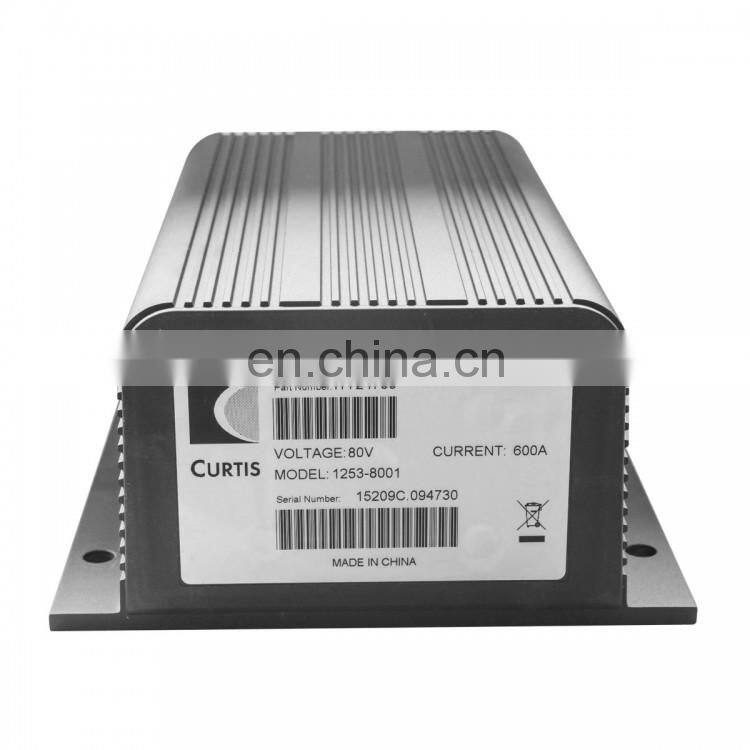

Detail photo
