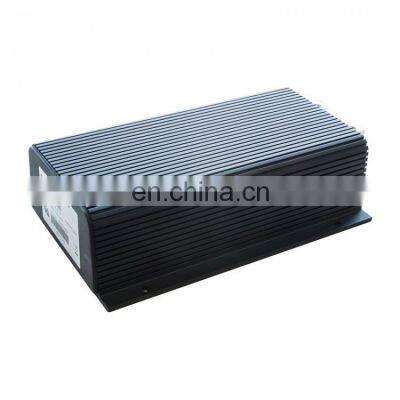

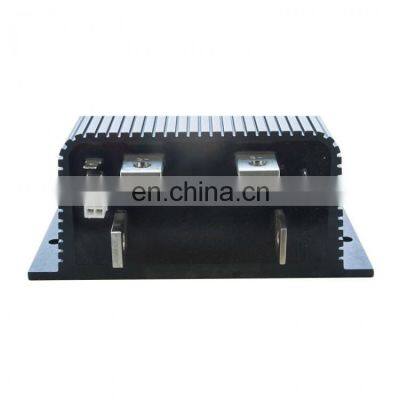

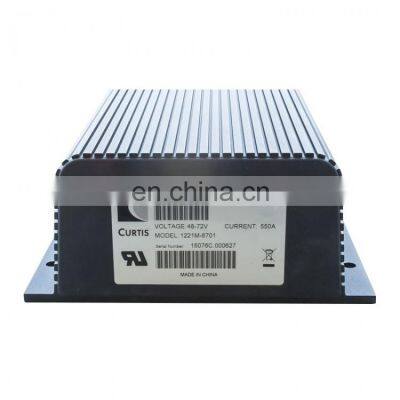

550A 48V 60V 72V Programmable DC Series 1221M-6701 Motor Controller
- T/T Credit Card
You May Like
-
60V 72V 1205M-6B403 PMC 400A DC Series Motor Controller 1205M-6401 6B401
-
1243-4322 24V 36V Electric Vehicle 300A DC CURTIS Excited Motor Controller SepEx
-
PMC 1219-8406 36/48V 600A EV DC Series HELI DQKC-025 Motor Controller
-
24V 300A 1207B-5101 DC Motor Controller - Upgraded for 1207 or 1207A
-
New P125M-6B403 DC Motor Controller 400A 60V 72V DC Replace 1205M-6B403 1205M-6B401
-
High Power 36V 48V 325A Electric PMC 1204M-5305 DC Motor Controller Upgraded 1204M-5301 for Curtis
Product Description
550A 48V 60V 72V Programmable DC Series 1221M-6701 Motor Controller
Note:The buyer should confirm with the seller the battery system voltage(48V/60V/72V) and the throttle type (0-5kΩ, 5k-0Ω or 0-5V).Please leave us a message about the one you need. Thank you!
Product Description:As a new upgraded 1221M series controller, 1221M-6701 provides new functions "reverse signal output / main contactor coil driver" through the 6.35 mm push-on terminal J5. For more details, please read carefully the CURTIS 1204M/05M/09M/21M Manual and CURTIS 1221M-6701 Controller Default Setting Parameter List.We may provide the complete set of controller assemblage of 1221M-6701. Please contact us for more details.
CURTIS 1204M/05M/09M/21M Manual:Click here
CURTIS 1221M-6701 Controller Default Setting Parameter List:Click here
Notice: For the buyer without CONTROLLER APPLYING EXPERIENCE, please consult your cart/motor dealer and read carefully the CURTIS 1204M/05M/09M/21M Manual and CURTIS 1221M-6701 Controller Default Setting Parameter List before making the purchase.
Overview:
- CURTIS 1221M programmable series motor controllers are designed to provide smooth, silent, cost-effective control of motor speed and torque. 1205M controllers are updated versions of the popular 1205 controllers, with the added functionality of being programmable—via the CURTIS Model 1313-4431 Handheld Programmer or 1314 PC Programming Station. This means the controllers can be tailored to the needs of specific applications. In addition to configuration flexibility, use of the programmer offers diagnostic and test capability.
- CURTIS 1221M controllers are the ideal solution for a variety of electric vehicle applications, including industrial trucks, personnel carriers, material handing vehicles, golf cars, etc.
Key Features:
- CURTIS Model: 1221M-6701
- Norminal Battery Voltage (Volts): 72V (default setting), 48V or 60V
- 2 Minute Current Rating (amps): 550
- 5 Minute Current Rating (amps): 375
- 1 Hour Current Rating (amps): 225
- Plug Braking (A2 Busbar): Yes
- PWM operating frequency: 15.6 kHz
- Electrical isolation to heatsink (min.): 500 VAC
- KSI input current (no contactors engaged):
- 70 mA without programmer
- 130 mA with programmer
- Logic input current: < 2 mA
- Status LED output current (max.): < 2 mA
- Throttle Type: 0-5K Ω (default setting), 5K-0 Ω or 0-5V. Multiple throttle types are supported, for more details, please read carefully the CURTIS 1204M/05M/09M/21M Manual
- Dimensions: L281xW180xH80 mm
- Net Weight: 4.9 kg
- Operating ambient temperature range: -40°C to 50°C
- Storage ambient temperature range: -40°C to 85°C
- Package environmental rating: ISTA 2A; electronics sealed to IP54
- Regulatory compliance: EN 12895 and EN 61000
Features Include:
- High-frequency switching and ultra-low voltage drops provide high efficiency and silent operation.
- Simple mounting and wiring with push-on connectors for control signals and plated solid copper buses for power connections.
- Compatible with either a two-wire potentiometer or a voltage throttle.
- Throttle fault protection circuitry disables controller if throttle wires become open.
- High pedal disable feature prevents controller operation if key is turned on while throttle is applied.
- Plug braking diode internal to controller.
- Thermal protection and compensation circuit provides constant current limit over operating range and during under/over temperature cutback; no sudden loss of power under any thermal conditions.
- Undervoltage cutback function protects against low battery voltage, including low voltage caused by external loads.
- Easily programmable through the CURTIS Model 1313-4431 Handheld Programmer or 1314 PC Programming Station.
- Rugged anodized aluminum extruded housing meets IP65 environmental sealing standards for use in harsh environments.
Package List:
- 1 x CURTIS 1221M-6701 Motor Controller

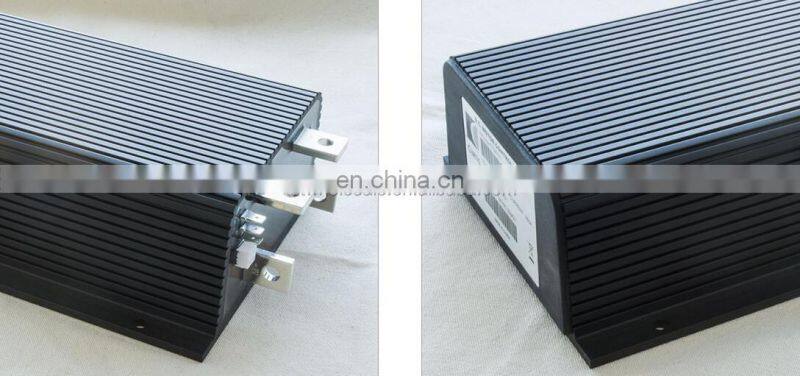

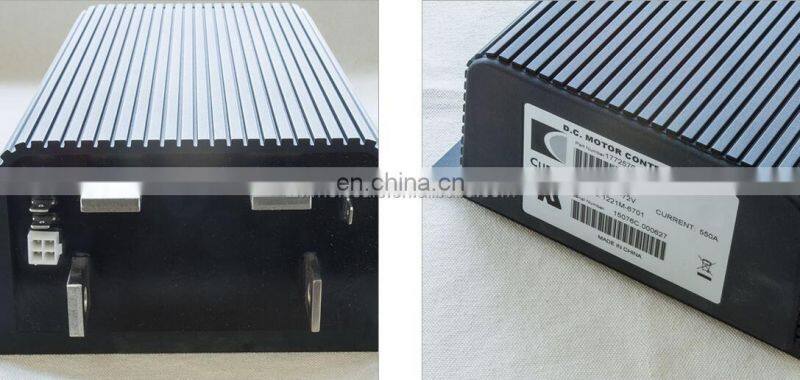

Detail photo
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Samples arrived often need 3-5 days.
Q3. Do you have any MOQ (minimum order quality)limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed an order?
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.
Q6. Is it acceptable to print my logo on the product?
A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer one-year warranty for our products.
Q8: How to deal with the flaw?
A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%
