MACH3 CNC 3 Axis Stepper Motor Driver Board TB6560 USB Port
Product Details:
- Motor type: Stepper Motor
- Model Number: MACH3 USB 3 axis
- Frequency: 100KHZ
Package Included:
- 1 x USB MACH3 3 Axis card
- 1 x USB cable
- 1 x CD
Features:
1. Support for 3-axis linkage, you can connect four stepper motor drives or servo drives.
2. Maximum step-pulse frequency is 100 KHz, which is suitable for the servo or stepping motor.
3. 3 general-purpose opto-couplers isolation input: can connect the limit switch, emergency stop switch, home switch etc.
5. Support for connecting electronic handwheel.
6. Have 0-10V signal output, you can use mach3 software to control the spindle motor speed.
7. 3 general-purpose isolated relay drive output interface, can drive three relays for controlling the spindle starts, forward rotating and reverse rotating, pumps or other device;
8. 1 status LED, indicate connection status on the board.
9. Resolution 1, 12, 18, 116 micro stepping output.
10. Four (or three) channels 3.5A adjustable output current for 2/4 phase bipolar stepper driver.
11. Build with 4 outputs and 5 inputs.

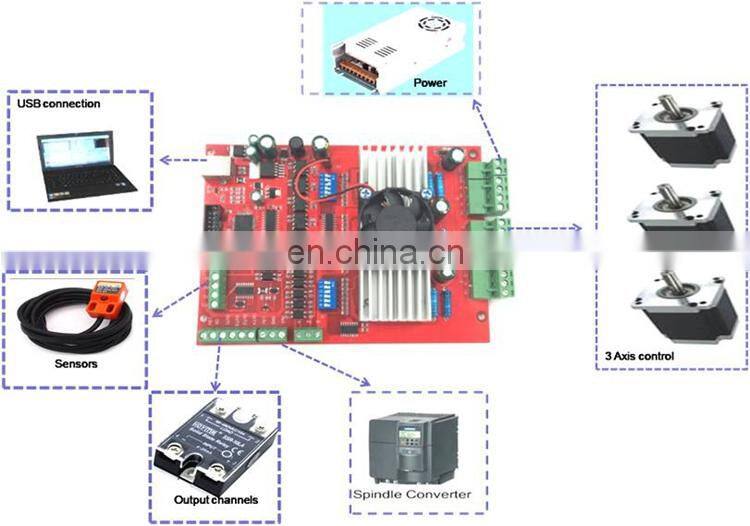

Basic Connection Diagram:

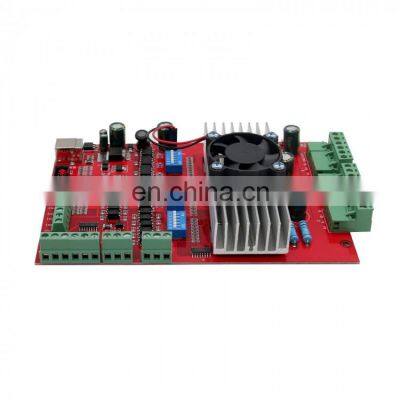

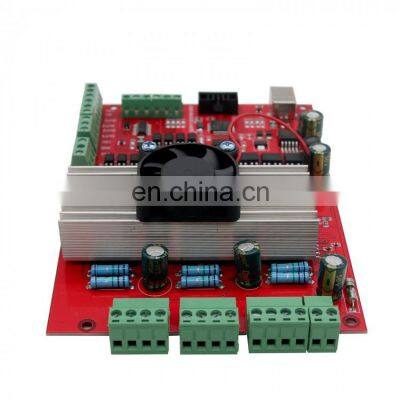

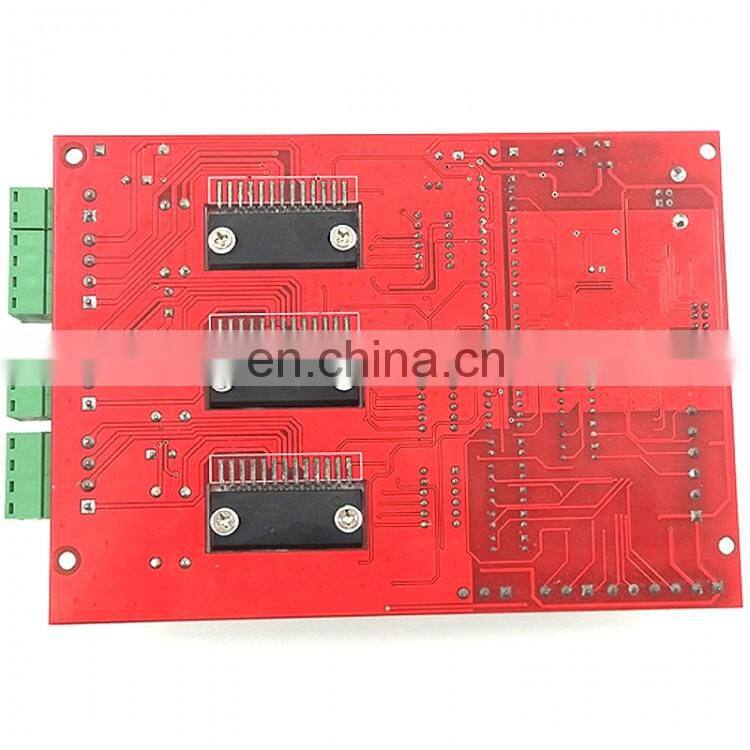

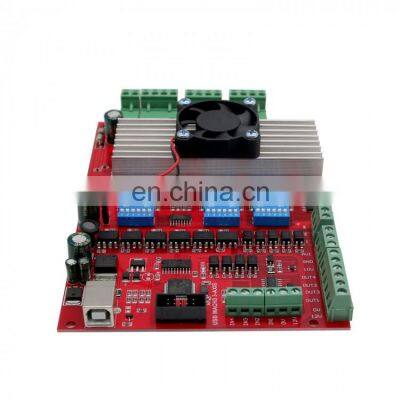

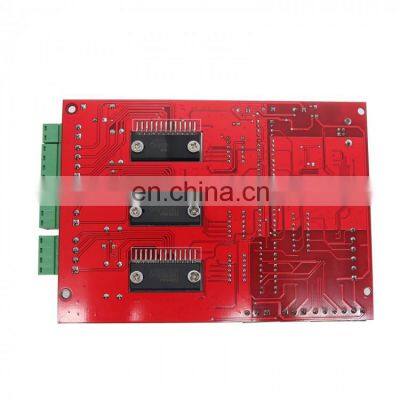

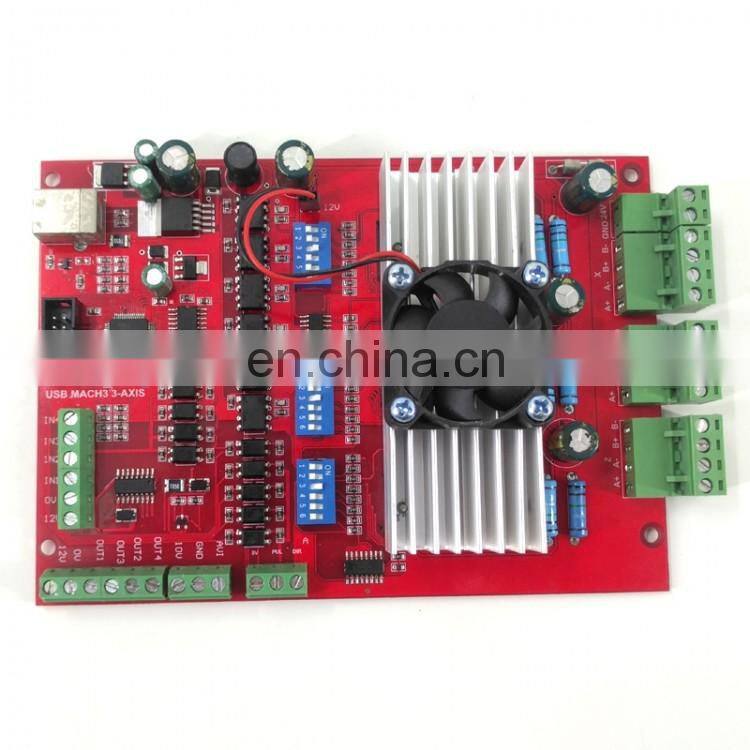

Detail Photo
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Samples arrived often need 3-5 days.
Q3. Do you have any MOQ (minimum order quality)limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
