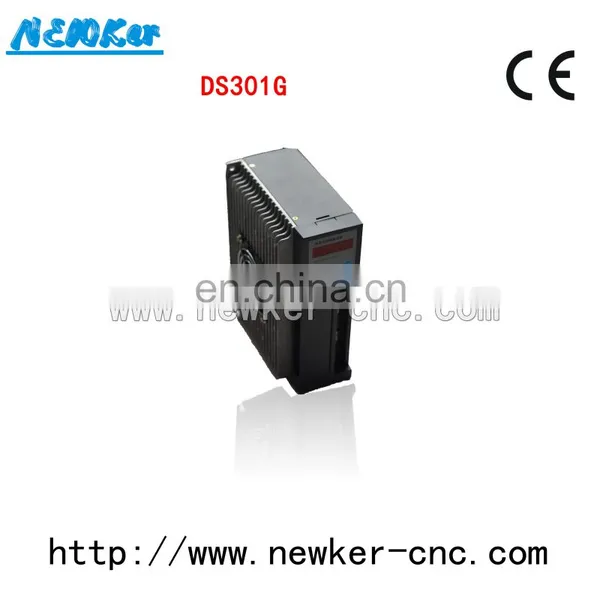

NEWKer CNC Machine Driver DS301 for 220V Servo Motor in CNC Machine
- T/T Credit Card
You May Like
-
NEWKer Eco-friendly CNC Servo Led ac Driver DS301 for Industrial Machine
-
NEWKer High-tech CNC Servo Led ac Driver NK301 for Industrial Machine
-
Hot Sales NEWKer CNC Manufactory Driver Kit Connect Cnc Controller in Market
-
Low Cost Advanced Technique Matching CNC ac Servo Driver for CNC Milling Machine Controller
-
NewKer-NEW302 Bichannel Servo Driver for Cnc Router Connect Lathe or Milling Cnc Controller
-
NEWKer Hot Sales 1000 Series 4 Axis Cnc Controller Driver for Lathe Used Cnc Control System Servo Motor
Product Description

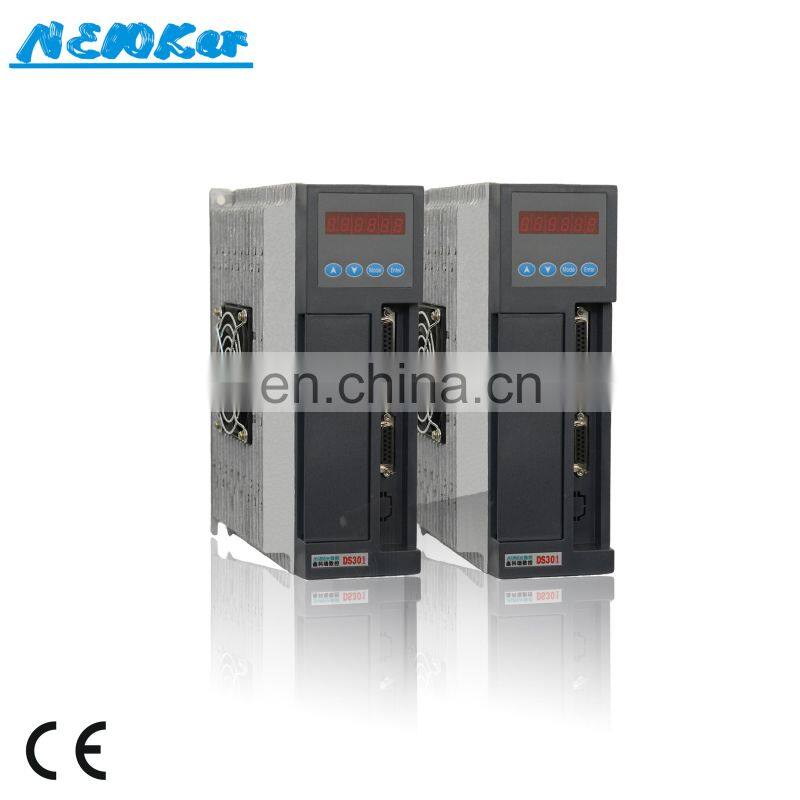

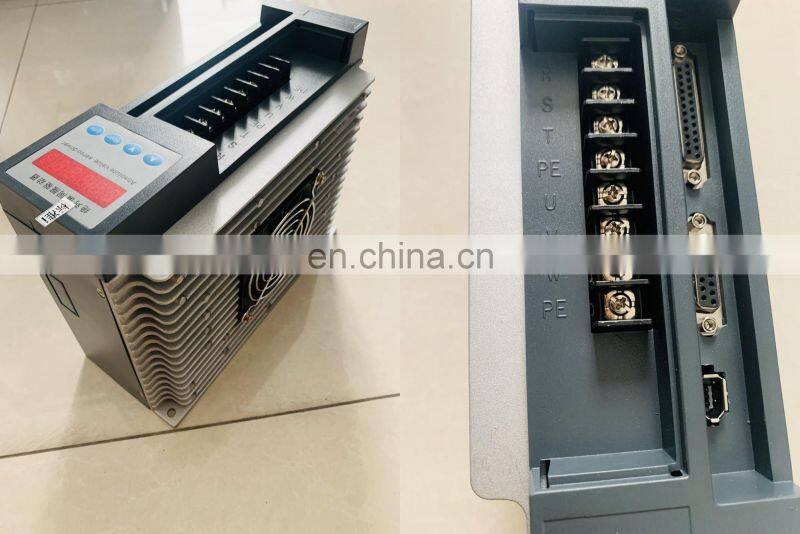

Product details:NEWKer CNC machine Driver DS301 for 220V Servo Motor in CNC Machine

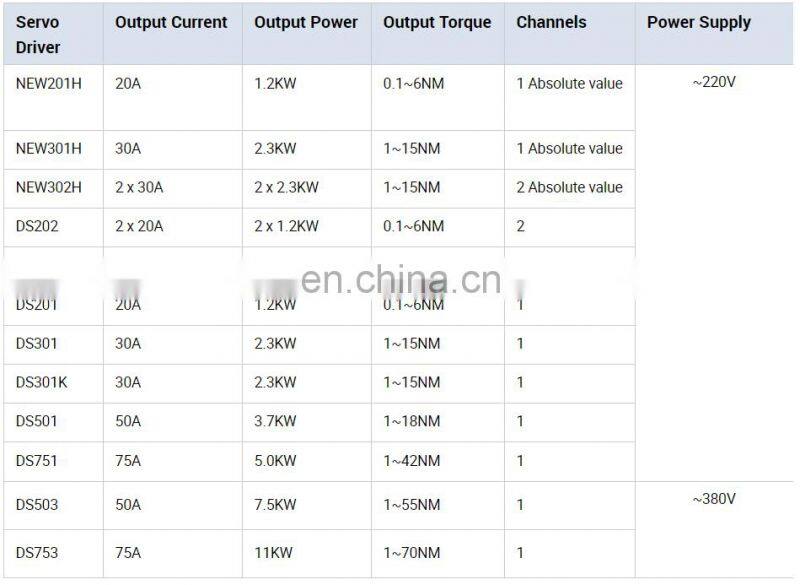

CNC driver type:
Product features:
The motor power adapt 100W-11KW
Single channel, two-channels AC servo motor driver controlling system
Switch to torque, speed, position, locate with point to point and mixed mode
Position control, speed control, servo electrical tool rest and JOG controlling mode
With bulit-in 4 segment locating postion could control point to point locate freely
Accuracy of locating ±0.01%
Input frequency of pulse is less than 500KHZ
Analog input: 0~10V or 0~±10V
Modified the space vector algorithm, the torque is bigger than the normal SPWM, the sound is lower
Overload capacity 300%
The power supply adapt ~220V±20% or ~380V±20%
Pefect protection: Overload current, overload voltage, overload heat, short circuit and fault of encoder
Many kinds of display:Rotating speed, current and offset position of motor, number of pulse, pulse frequency, straight line speed, diagnosis of input and output, history records of alarm and so on
