Home > Electrical & Electronics > Electric Motor > DC Motor > Accurate Waterproof Three-Phase TECO DC AC Servo Motor

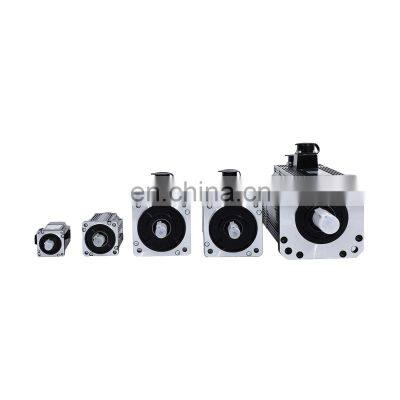

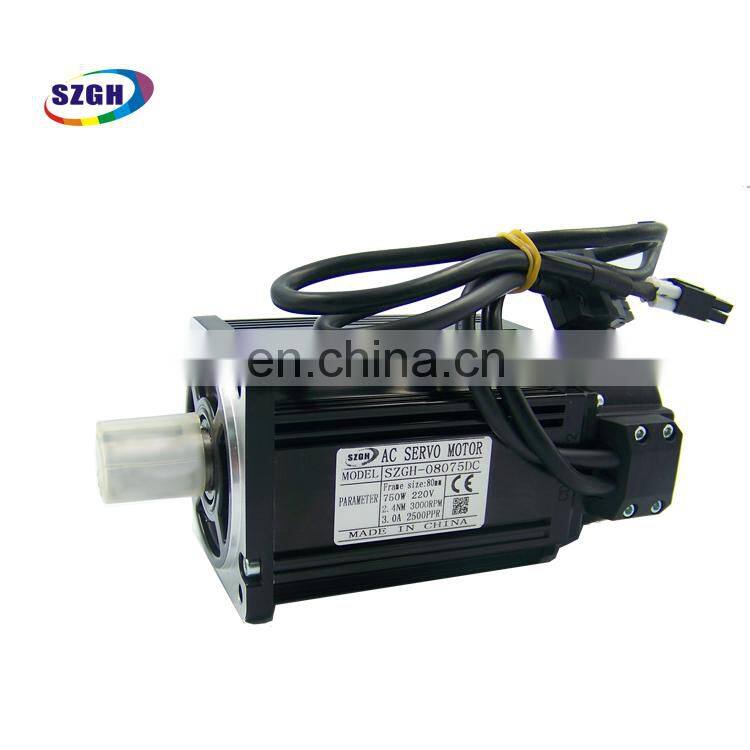

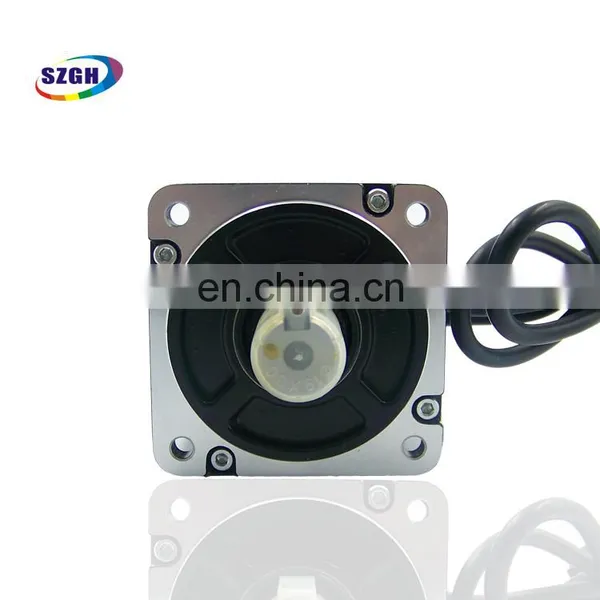

Accurate Waterproof Three-Phase TECO DC AC Servo Motor
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
1991
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High 3.7kw Air Cooled Cnc Spindle Motor for Cnc Wood RouterNegotiableMOQ: 1 -
Made in China High Torque Low Rpm Ac Electric Spindle Motor 1.5 kw Three Phase MotorNegotiableMOQ: 1
-
High Torque Planetary Gearbox Marine Engine GearboxNegotiableMOQ: 1
-
Close Loop Stepper Series Servo Motor Precision Planetary Gearbox Electric GearboxNegotiableMOQ: 1
-
Powerful High Torque Precision Planetary Gearbox Electric GearboxNegotiableMOQ: 1
Specifications:
| Specification/Servo Motor Series | Symbols | Unit | JSMA-TC08 |

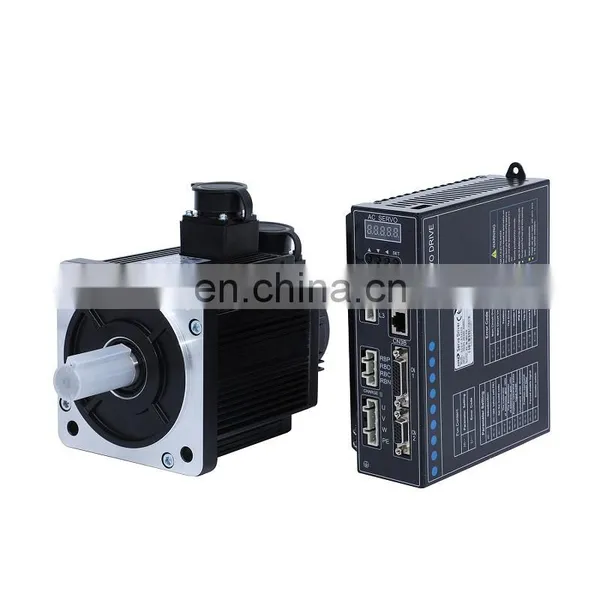

| Matched Driver | 30A | ||
| Rated Output Power | PR | W/KW | 750W |
| Rated line voltage | VT | V | 98.37 |
| Rated Torque | TR | N.M | 2.391 |
| Rated Armature Current | IR | A | 5.0 |
| Rated Rotation Speed | NR | rpm | 3000 |
| Peak Torque At Stall | Tmax | N.m | 7.164 |
| Peak Armature Current | Imax | A | 14.5 |
| Torque Constant | KT | N.m/A | 0.5 |
| Voltage Constant Per Phase | KE | V/k.rpm | 52.2 |
| Rotor Moment Of Inertia | JM | kg.cm2 | 1.06 |
| Anti-electric(@1800rpm) | VEMF | Volts | 54.25 |
| Phase Resistance | Ra | Ω | 0.87 |
| Inductive Impedance | La | mH | 4.2 |
| Mechanical Time Constant | Tm | ms | 0.9 |
| Electrical Time Constant | Te | ms | 4.8 |
| Weight | W | kgw | 2.66 |
| Insulation Grade | Class F(155°C) | ||
| Brake Rated Voltage | V | VDC 24±10% | |
| Brake Static Friction Torque | N.m | 2.39 | |
| Rotor Moment of Inertia(Brake) | kg.cm2 | ||
| Current Consumption | A | 0.33 | |
| Brake Weight | W | kgw | |
| Motor Operating Temperature | T | °C | 0~40 |
| Motor Operating Humidity | RH | % | <90 |
| Motor Reserve Temperature | T | °C | TRUE |
| Motor Reserve Humidity | RH | % | <90 |
