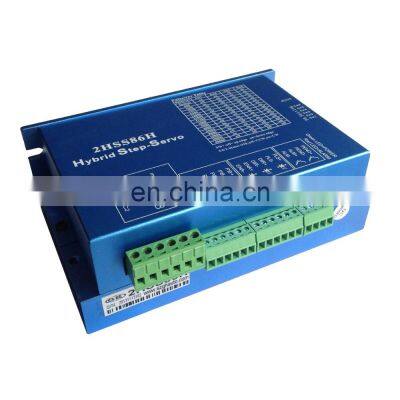

2 Phase Closed Loop Stepper Driver 2HSS86H Matching With Nema34 Stepper Motor photo-1

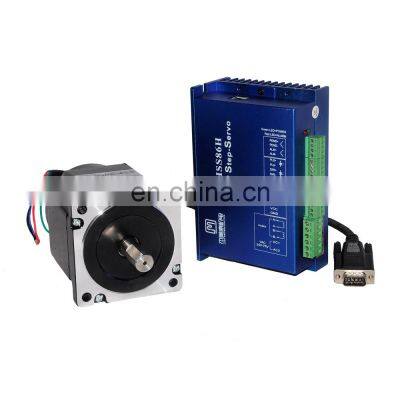

2 Phase Closed Loop Stepper Driver 2HSS86H Matching With Nema34 Stepper Motor photo-2
2 Phase Closed Loop Stepper Driver 2HSS86H Matching With Nema34 Stepper Motor photo-3
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Business Service (Transportation, finance, travel, Ads, etc)
Year Established:
1991
Annual Export Value:
US$1 Million - US$1.5 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us

Product Description



 Closed Loop Stepper Motor and Driver System (Easy Servo System) integrated servo control technology into the digital step driver. It adopts typical tricyclic control method which include current loop,speed loop and position loop.



Feature:

1) Full closed loop control
2) Encoder 1000PPR
3) Nearly 100% output torque
4) Fast response, high speed
5) Input under position control mode:
A. Pulse+ direction
B.  Pulse +negative direction
C. Dual pulse
D.  Communication
6) Optical isolation servo reset input interface ERC
7) Optical isolation alarm output interface ALM
8) Current loop width: (-3dB) 2KHz (typical value )
9) Velocity loop width:500Hz (typical value)
10) Position loop width:200Hz (typical value)
11) Encoder input interface: differential input (26LS32)
12) Can download parameter with RS232 cable or text display.
13) Protection for over current, over voltage, under voltage, over heat, over speed, over proof.
14) Green LED means on, red LED means protection or in fault status.


Product Dimension :


2 phase Closed loop stepper driver 2HSS86H matching with Nema34 stepper motor

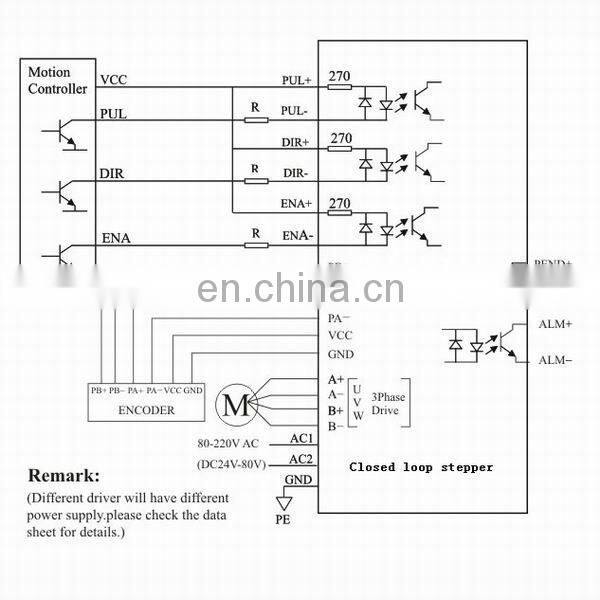

Wiring diagram:

2 phase Closed loop stepper driver 2HSS86H matching with Nema34 stepper motor





Closed Loop Stepper Driver (Easy Servo Driver)

Closed Loop Stepper Driver (Easy Servo Driver) inherit favored features of both open loop stepper and brushless servo drives,in much lower cost, no hunting, no overshooting, almost zero settling time,compatible with almost Closed Loop Stepper Motor for most applications.

Model  phase  Control Type Power Configuration Matching Motors
Voltage(V) Current(A) (NEMA)
AC
DC
Peak
2HSS86H
2 phase
 Step & Dir / Pulse &Pulse
50-80
24-110
7
RS232
34



Product picture:2 phase Closed loop stepper driver 2HSS86H matching with Nema34 stepper motor2 phase Closed loop stepper driver 2HSS86H matching with Nema34 stepper motor2 phase Closed loop stepper driver 2HSS86H matching with Nema34 stepper motor



Packaging & Shipping

1.Industrial packing: plastic bag +foam boxes+ carton +wooden pallets

2.Commercial packing: plastic bag+ foam boxes + carton

3.As the clients’ requirement

Delivery Detail: Normally ready goods and stock within 2-5days
