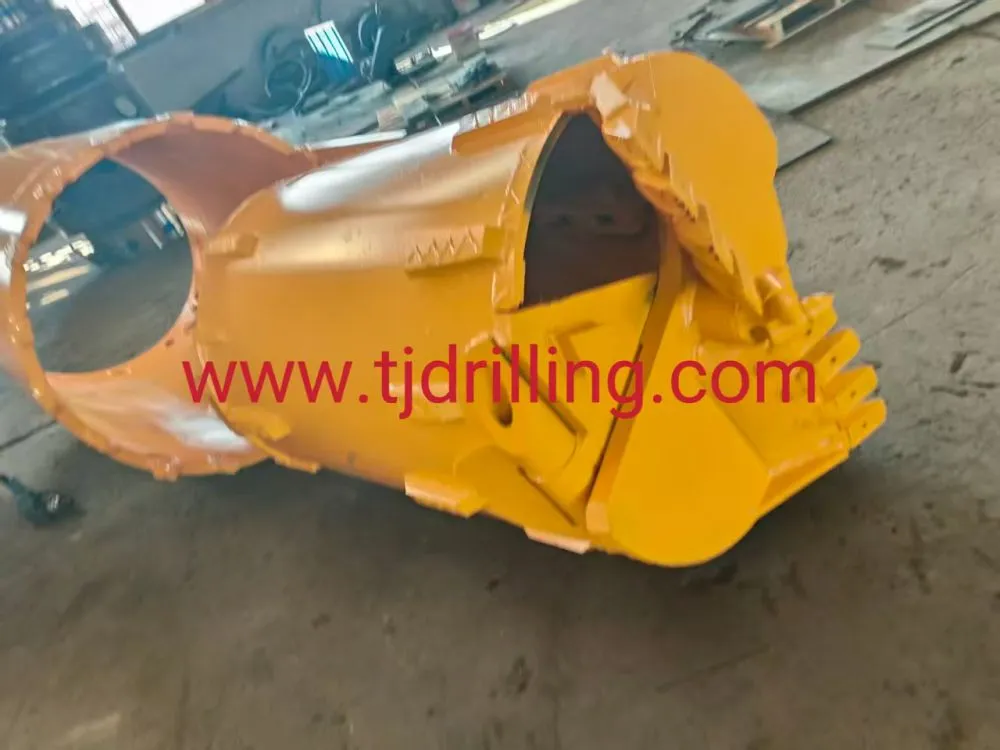

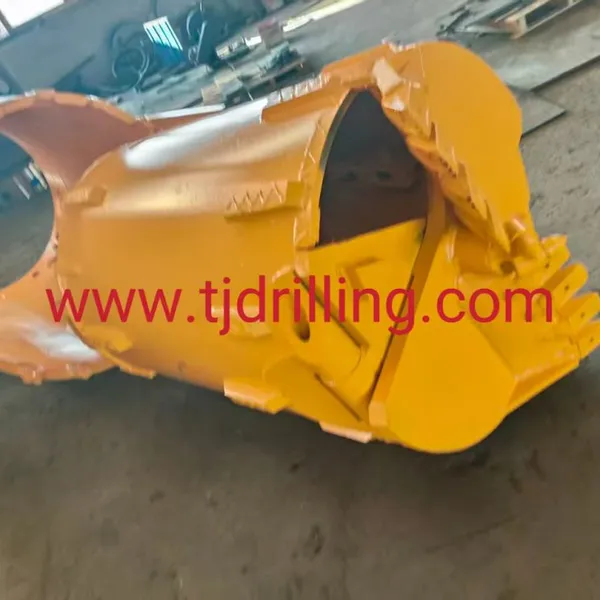

1200mm Double cut Hard Soil Bucket with fz72 flat teeth for bored pile foundation work match soilmec casagrande
1200mm double cut soil bucket with fz72 soil teeth for cutting soft to hard silt and clay, loose to dense sand, gravel up to coarse gravel.match soilmec casagrande
800mm Double cut Hard Soil Bucket with fz72 flat teeth for bored pile foundation work match soilmec casagrande
1000mm Double cut Hard Soil Bucket with fz72 flat teeth for bored pile foundation work
1500mm Double cut Hard Soil Bucket with fz72 flat teeth for bored pile foundation work
2000mm Double cut Hard Soil Bucket with fz72 flat teeth for bored pile foundation work
Main application:-
Double Hard Soil Bucket, used for cutting soft to hard silt and clay, loose to dense sand, gravel up to coarse gravel.
DCHSB is recommended in un uncased bores,
for bigger diameters and for secant pile walls.
Features:-
Kelly box: 130-150-200 – other available upon request
Teeth: hard soil teeth BFZ
Side cut collar plate with round shank bits
Round shank rock teeth pilot bit
Ventilation pipe system
Opening system: Automatic or manual
double system – available upon request
Wear protection: hard facing (standard)
or wear stripe (optional) – tungstuds (optional)
Conical clay bucket
Main application:-
Conical clay bucket used for drilling in clay and sticky clay with high plasticity.
Body provided with conical base shape for easy discharging of sticky clay.
Diameter |
Bucket D1 |
Height H |
Bucket height H1 |
Flat teeth N.O. |
Bullet teeth NO. |
600 |
540 |
2000 |
1200 |
2 |
10 |
800 |
700 |
2000 |
1200 |
4 |
14 |
1000 |
900 |
2000 |
1200 |
6 |
18 |
1200 |
1100 |
2000 |
1200 |
7 |
20 |
1500 |
1400 |
2000 |
1200 |
9 |
28 |
1800 |
1700 |
2000 |
1000 |
11 |
32 |
2000 |
1900 |
1600 |
800 |
13 |
34 |
2200 |
2100 |
1600 |
800 |
15 |
36 |
2500 |
2400 |
1500 |
700 |
17 |
40 |
3000 |
2900 |
1500 |
700 |
21 |
46 |
