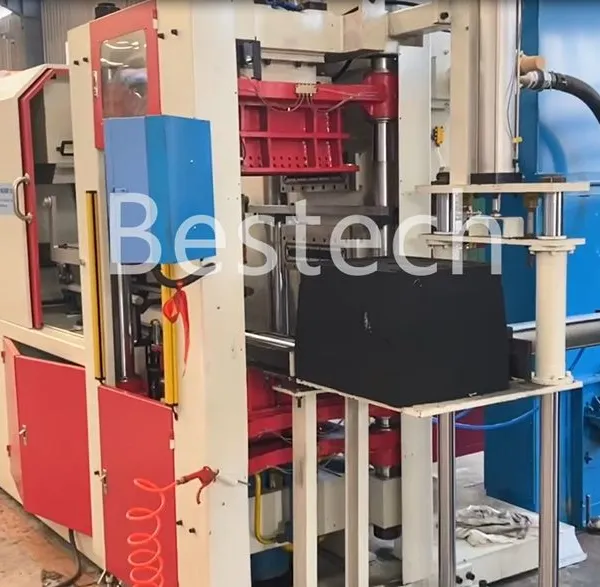

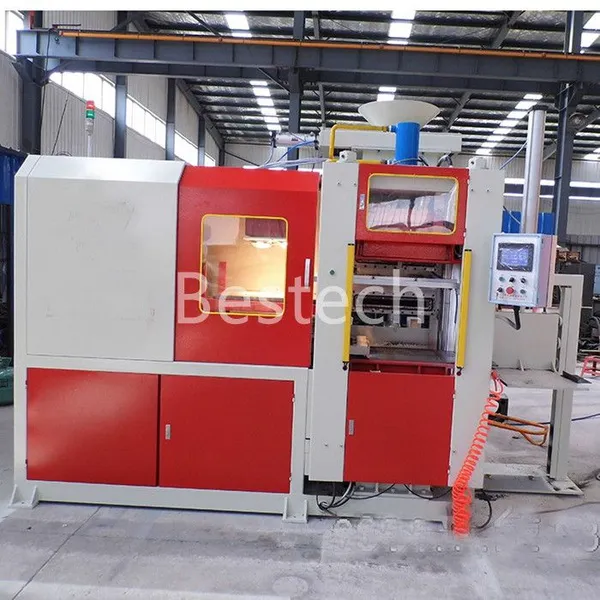

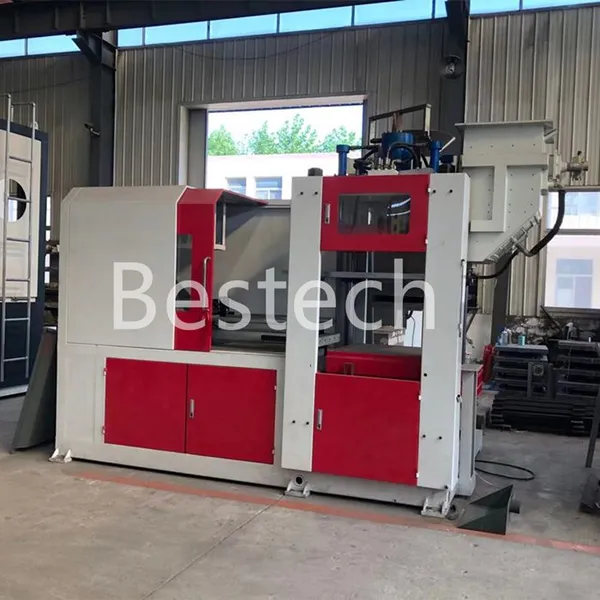

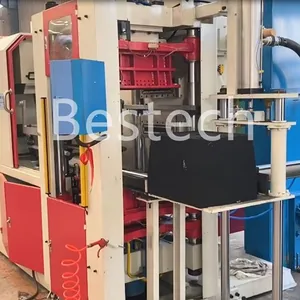

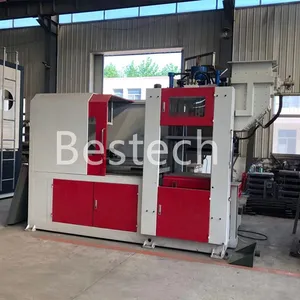

Automatic Sand Molding Machine for Brake Pad production
- 100 Set / Sets per Month
- Qingdao port or as customer's requirement
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 7 days
- Plumbing Pipe Fitting Production Automatic Molding Machine
- Automatic Sand Molding Machine for Casting Valve Production
- Foundry Automatic Sand Molding Machine
- Horizontal Automatic Green Sand Molding Equipment
- Automatic Sand Molding Machine for Casting Parts Production
- Automatic Green Sand molding Machine for Foundry Molding Plant
Product Details
Brand Name: | bestech | Place of Origin: | China | Model Number: | Z417 |
Certification: | new | After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | 1 year |
Weight: | 6500 | Dimension(L*W*H): | 3200*2200*2350 | Condition: | New |
Voltage: | customized | Power(W): | 18.5 |
Product Description
Green Sand Automatic Flaskless Moulding Line
Pneumatically feeds moulding sand in vertical direction, has the best filling performance and completely improve the shadow defect caused by horizontal shooting sand. Simple process,convenient moulds and pouring gate, high product rate and strong applicability.
The user can choose the casting height and compaction pressure under different castings flexibly to ensure the reasonable use of moulding sand.
Template installation: fixedy by four screws, the replacement is completed within five minutes, and the mold is changed frequently.
The fault is displayed on the touch screen, and the fault reason is displayed on the touch screen. The user can easily find the fault and take measures.
The hydraulic, pneumatic and electrical components all adopt imported components to ensure the stable and reliable operation of the equipment and the service life.
All types of equipment manufactured by the company adopt a stable and reliable safety defense system.
With servo hydraulic system, the supply pressure of the system can be adjusted automatically according to the various stages of the equipment operation, reducing the loss of energy.
technical parameter:
Parameter | XGA-01 | XGA-02 | XGA-03 |
Sand Mould Size (LxWxH) | 500x400x(120~150)
| 610x508x(130~180) | 700*600(120-150) |
Mould Way | Injection and Compaction | Injection and Compaction | Injection and Compaction |
Compaction specific pressure | ~1.0Mpa | ~1.0Mpa | ~1.0 Mpa |
Power Mode | Hydraulic pressure | Hydraulic pressure | Hydraulic pressure |
Max productivity | 40s/mould(Excluding core setting time) | 40s/mould(Excluding core setting time) | 40s/mould(Excluding core setting time) |
Our Service:
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. UEM&UBM are welcomed.
