Help CenterPaper Slitting Rewinding Machine
Related Products
Paper Slip Sheet Machine is to produce slip sheets/flat paper boards with thickness of Max.5mm and width of Max.1200mm. It adopts electric control system to guarantee stable speed of 20m/min. Paper slip sheet machine has drying system to dry the cardboard. The whole production including paper stand, gluing part, pressing and forming, heating part, cutting part and collecting. The slip sheet is made of imported high strength kraft paper. Kraft paper slitting machine has good smoothness, moisture resistance and tear resistance. It is an ideal replacement product for wood, paper, and plastic pallets. Light weight, small size, recyclable paper slip sheet machine can effectively save freight and reduce storage space. Slip board transportation and warehousing can be carried out without pallets. It is very suitable for container shipping, truck transportation workers and goods turnover in warehouses. It is widely used in various product fields and transportation fields.
Paper Board Making Machine
Model: SANPPL-1200F Max. board width size: 1200mm Min. board width: 500mm Thickness: ≦5mm Max. quantity of layer: 4 Max. speed: 20m/min
Paper Slip Sheet Machine
Model: SANPPL-1600F Max. board width size: 1600mm Min. board width: 500mm Thickness: ≦5mm Max. quantity of layer: 6
Advantages of Paper Slip Sheet Machine
Lightweight, less materials, and low cost. Compared with other board structures, this structure of paper slip sheet machine has a better performance/price ratio of finished products, which is the key to the success of the paperboard.

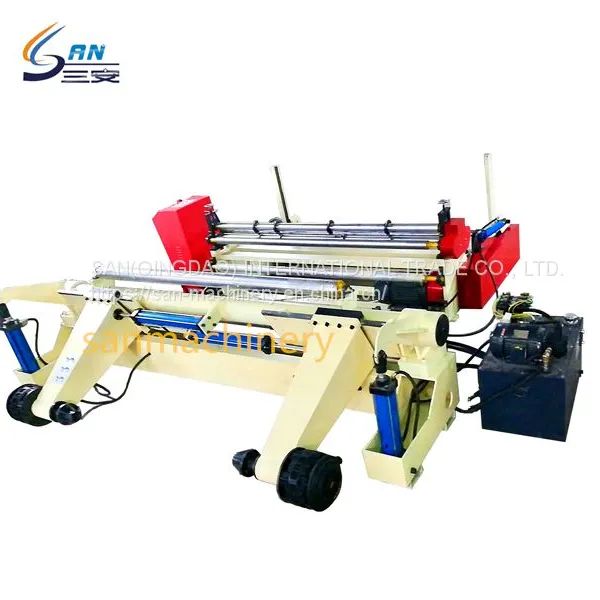

Paper slitting and rewinding machine is used to slit the big paper rolls into small paper rolls , then rewind them. The hydraulic shaftless paper holder automatically loads and unloads the original paper (tray), which is easy to operate the paper slitting and rewinding machine. Equipped with rubber arc-shaped sticks, the paper tray will automatically peel off after slitting, no need to beat. The external winding structure ensures that the paper tray is strong and compact after slitting, and the tension of the tube is correspondingly increased. Optimize the brake system control device to make the data accurate and stable during operation adjustment. Excellent cutters and structure ensure high precision of the paper tape of the slitting paper tray.
Paper Roll Slitting Rewinding Machine
Model: SANSR-1600 Max. width of jumbo roll: 1600mm Min. width of jumbo roll: 600mm (min 400mm only for special order) Max. diameter of jumbo roll: 1300mm Working speed: 0-250m/min
Economic Paper Slitter And Rewinder
Model: SANSE-1600 Max. width of jumbo roll: 1600mm Min. width of jumbo roll: 600mm (min 400mm only for special order) Max. diameter of jumbo roll: 1300mm Working speed: 0-140m/min
Advantages of Paper Slitting And Rewinding Machine
Equipped with automatic rectifying system, paper slitter rewinder machine adjusts the paper into center position in real time. With electrical control system, the paper slitting and rewinding machine can produce productions in a much higher speed. Hydraulic shaftless paper holder, easy and fast to load paper. Electronically controlled hydraulic deviation correction, high precision. Suspension tension system keeps the tension constant. Heavy-duty slitting components, better slitting quality. Frequency conversion control synchronous belt drive, strong power and lower noise. As the slitting rewinding machine manufacturers, we adopt new technology, so that the rewinding does not stick, and the paper roll spacing is 1-2mm. Single-group ground roller rewinding, low center of gravity, easier to unload paper.
Features of Paper Slitting And Rewinding Machine
l Hydraulic paper stand, easy to load paper roll.
l Automatic rectifying system, small tolerance.
l Suspended tension system. Keep the paper slitting and rewinding machine in a steady performance.
l Separate the rolls with Min. 1-2mm distance to avoid adhesion.
l Single bottom roller rewinding system of paper slitting and rewinding machine, easy to unload.
Applications of Paper Slitting And Rewinding Machine
Paper slitting and rewinding machine is used for cutting paper roll before making paper corner. Cut base paper roll and reroll it to the required width.
If you want to know more types of paper core cutting machines, please contact u
