The Experienced Supplier for Industrial Fruit Juice Squeezing Extractor Manufactured in Shanghai Gofun

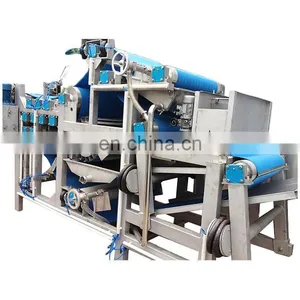

The Experienced Supplier for Industrial Fruit Juice Squeezing Extractor Manufactured in Shanghai Gofun photo-1
The Experienced Supplier for Industrial Fruit Juice Squeezing Extractor Manufactured in Shanghai Gofun photo-2
The Experienced Supplier for Industrial Fruit Juice Squeezing Extractor Manufactured in Shanghai Gofun photo-3
The Experienced Supplier for Industrial Fruit Juice Squeezing Extractor Manufactured in Shanghai Gofun photo-4
The Experienced Supplier for Industrial Fruit Juice Squeezing Extractor Manufactured in Shanghai Gofun photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
1995
Annual Export Value:
US$10 Million - US$50 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description

Gofun company manufactured the belt press by learning foreign advance technology, it is an efficient press machine and quite important, which can increase the juice capacity during the fruit juice or vegetable juice processing. It is used for fruits and vegetables pressing, like apple, pear etc.

Detailed Images

The belt press juicer extractor machine is made by GuFun machinery company who designing and absorbing international advanced technology, which is a highly efficient juice extracting equipment in the fruit and vegetable juice production and is a key equipment to the juice yield. The belt press juicer extractor widely used in the berries, kernel fruit and all kinds of fruit juice industry. The equipment adopts the multi stage bends to the pressure and multi level pneumatic down pressure, crushing strength, juice rate can reach more than 70%. At the same time, it is a kind of juice equipment which has the energy conservation and high degree of automation, automatic front-rear, continuous work, strong commonality, filter, filter cake moisture content is low, the advantages of convenient operation and maintenance with a higher rate of juice. Using this equipment can make the fruit juice yield increase 20-35% and greatly reduce the production cost, improve the production efficiency of enterprises.

Parameters:

Model
GFM-BP-03
GFM-BP-05
GFM-BP-10
GFM-BP-20
Capacity(t/h)
3
5
10
15-20
Belt width(mm)
800
1200
1750
2500
Power(kw)
21
21
22
38
Dimension(l*w*h):(mm)
4000*1800*2350
4000*2000*2500
5000*2500*2600
5400*3300*2700
Weight(kg)
3500
4200
5800
6600
Air compression(pa)
0.7
0.7
0.7
0.7
