IQF Quick Freezing Vegetable Machine Industrial Freezer Price

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

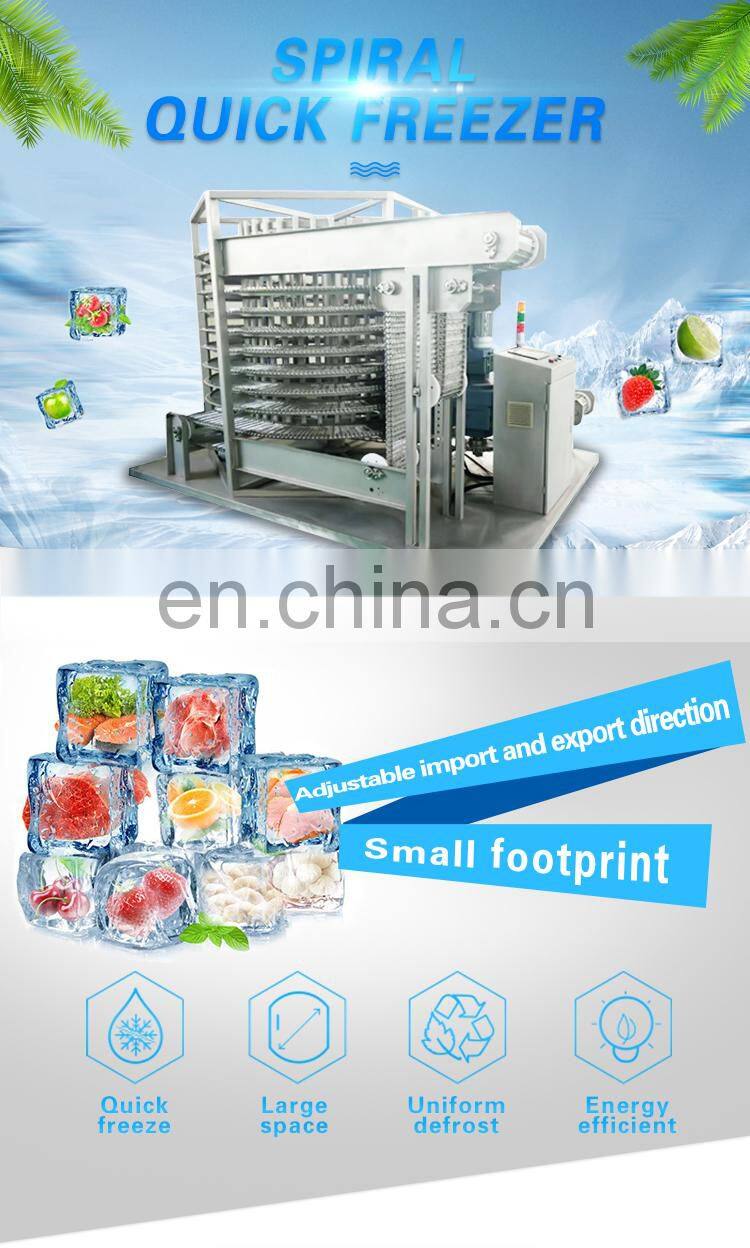

Spiral Freezer

We have many years of experience in the design and manufacturing of screw freezer. Through the introduction of foreign advanced technology and independent innovation, our design and manufacturing technology is leading in China.The mesh belt, drum, evaporator
and other main structural parts of our series of screw quick freezers are independently manufactured by our company. The materials are exquisite and the production is excellent. In particular, the long-life design and operation reliability of the products have been recognized by many customers.

Main feature

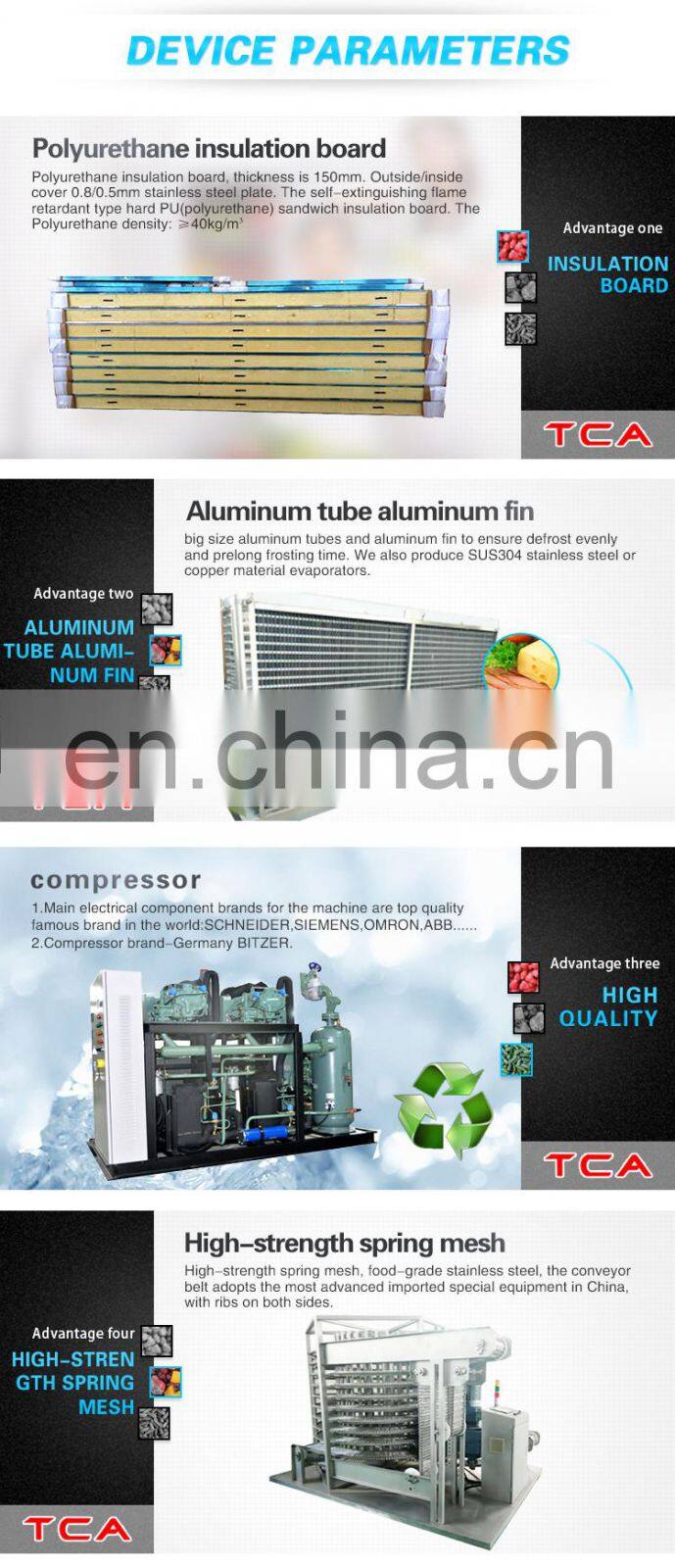

■High strength spring mesh wire, food grade stainless steel, conveyor belt with ribs on both sides made of the most advanced imported special equipment in China

■The loose storage body greatly facilitates the maintenance and overhaul

■The internal components fully meet the hygienic requirements of HACCP processing

■Long life design, assembly type internal structure (different from welded structure), easy to repair, replace or move

■Very convenient installation

■Reliable transmission control technology

■Symmetrical and smooth circular air duct design, no cold running at the inlet and outlet

■High efficiency evaporator, super large fins with air turbulence structure, latest stamping process

■The bottom plate of the warehouse will never leak, and there is no risk of frost cracking of the bottom plate and the ground.

■Automatic cleaning and drying device for mesh belt (user's choice)

■The new gear reducer with hard tooth surface has high efficiency and long service life

Number of spiral layers	16 * 2 floors	Cold consumption	225KW (-42°C/+35°C)
Diameter of rotating cage	2300mm	Installed capacity	32KW
Clear height between floors	100mm	Refrigerant	R717
Total width of mesh belt	650 mm	Defrosting method	Water defrost once every 16-24 hours
Freezing time	Stepless adjustable	Import and export mode of frozen products	Low feed and low discharge

SHANDONG XINDAXIN MACHINERY CO., LTD is a professional global supplier of food industry equipment. Company is focused on R&D manufacturing and sales of food industry equipment including processing line for snacks, frozen French fries, potato chips, meat
food , cake baking ,vegetable processing,corn processing and so on. We provide a compete production line to our customers, corn processing. Company’s products have been certified by CE and ISO9000(1)-2000 international quality management systemcertification, and in accordance with the QS standard food enterprise. After many years of efforts and innovation, “TCA”brand foodequipment has been exported to Russia,Canada,Australia, USA, Britain, France and other 80 countries, enjoy a high reputation inthe same industry.
