Product Description

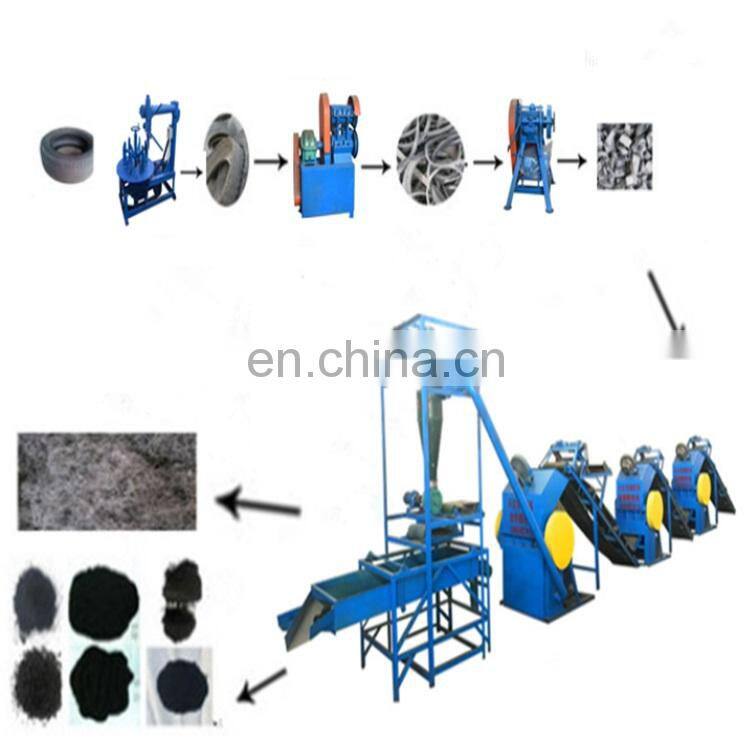

hot sale Waste tire recycling machine equipment/rubber powder granule making machine
Description

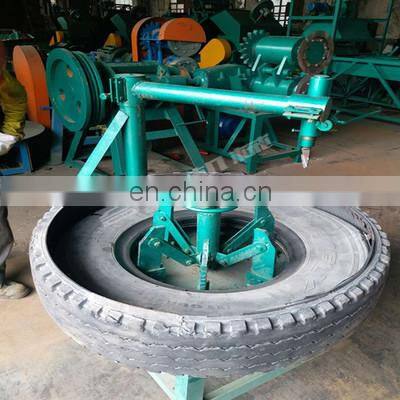

This machine is a special machine for cutting and separating the steel mouth, sidewall and crown of waster tires. First, put the tire on the platform, then rotate the hand wheel, Then start power supply, work platform rotation, cutting tool according to need to feed, slow cut tires, step by step, until the tire side cut off. It is an ideal environmental protection renewable resource equipment.
Name |
Ring cutter |
Capacity |
25-30 PCS/H |
Rotating speed |
72r/min |
Weight |
500 KG |
Dimension |
1.4*0.9*1.2m |
Description

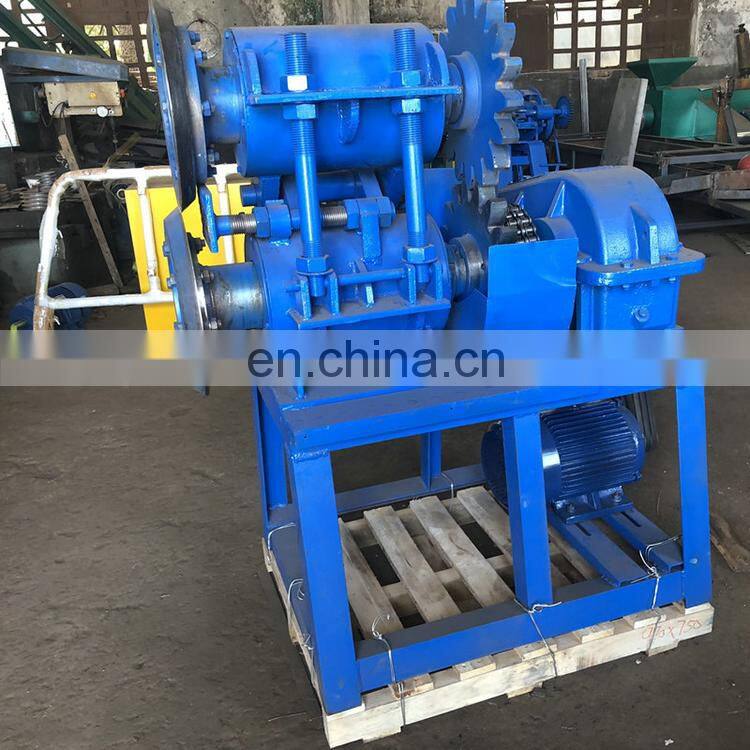

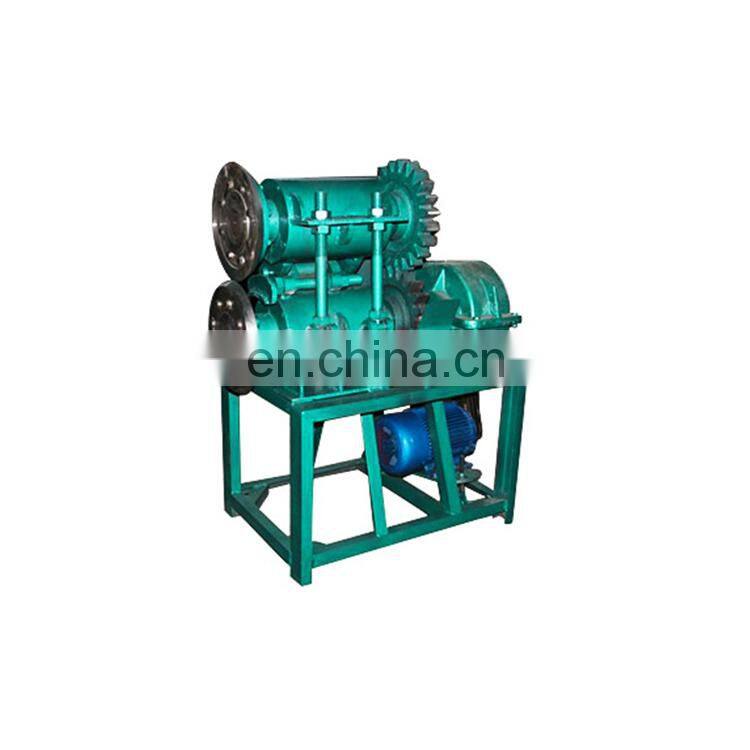

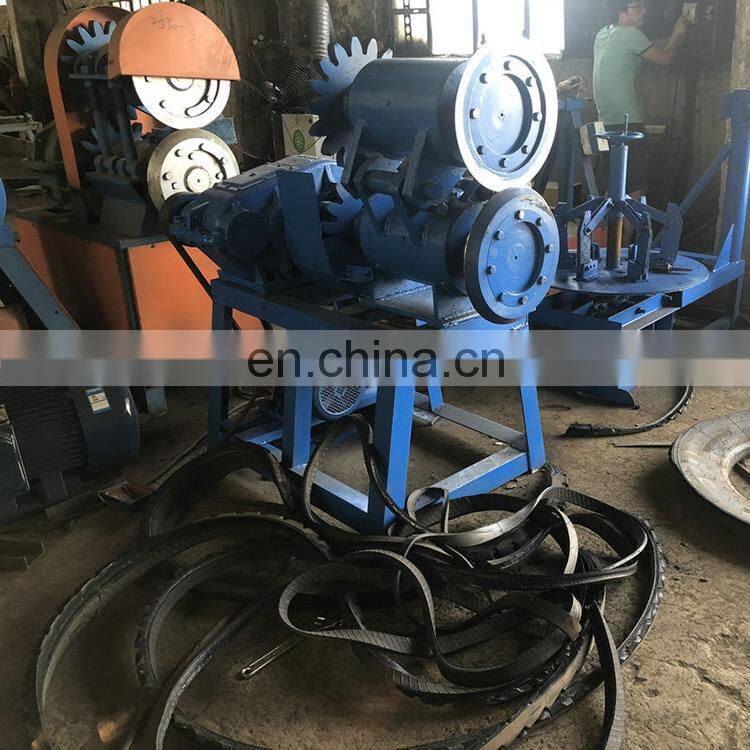

Applications: It is used in cutting the used tire and side wall of waste tire into rubber strip.After using the single ring cutter machine,the tire is cut into circles, then the tire strip cutter machine cut the circles into strips and the width of the strip can be adjusted.It is an ideal environmentally-friendly renewable resource machine.
Name |
Tire strip cutter |
Capacity |
25-30 PCS/H |
Discharge size |
35-55mm |
Rotating speed |
28r/min |
Weight |
800 KG |
Dimension |
1.35*0.8*1.42m |
Description

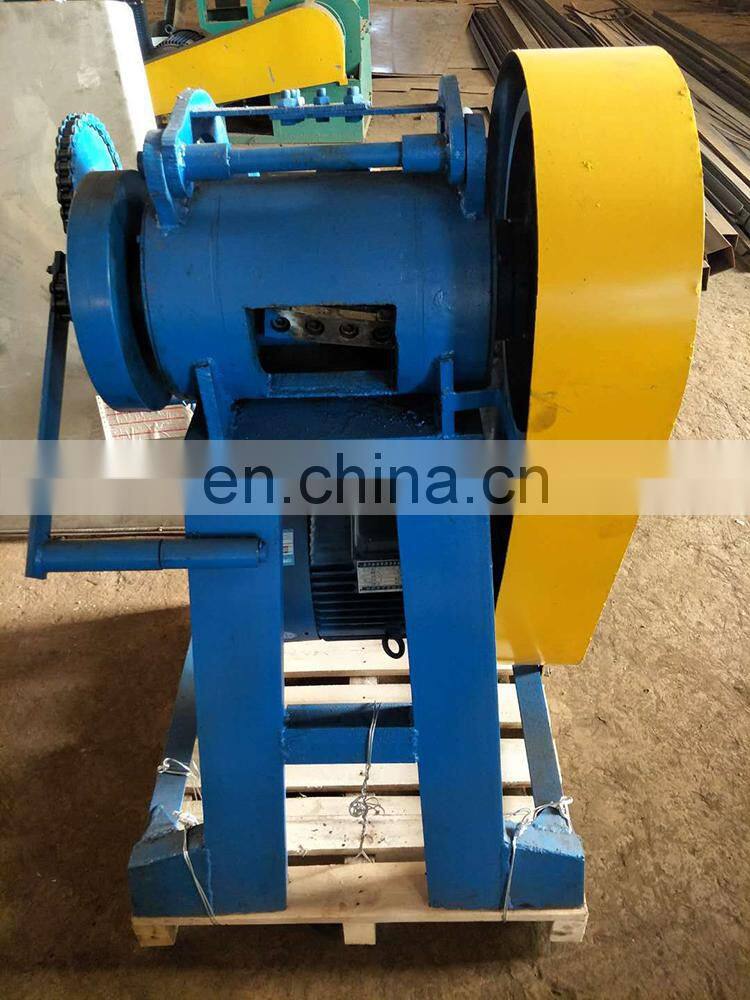

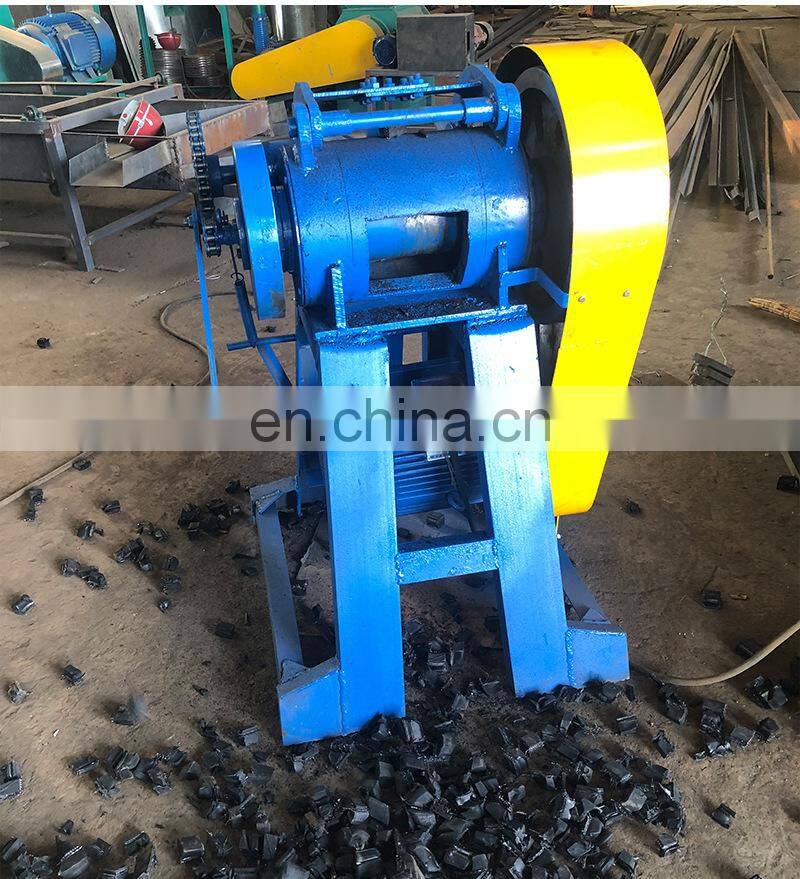

This equipment is suitable for the processing of rubber strips into rubber blocks of a certain size.
Features
1. convenient to feed, high output and won’t damage roller easily,
2. which can improve the working efficiency and lower equipment maintenance cost.
3. Environmental-protection, no pollution
Name |
Tire lump cutter |
Capacity |
25-30 PCS/H |
Discharge size |
35*35*35mm |
Rotating speed |
480r/min |
Weight |
600 KG |
Dimension |
1.05*0.8*1.15m |
(1) Application: This machine is mainly used to separate the rubber on the various tires from the steel wire.
(2) Process: The waste tire separator produced by our company is a special device used in conjunction with the wire tire cutting machine for extracting the thin steel wire on the surface of the tire ring cut by the wire tire cutting machine.
Name |
Tire steel wire separator |
120tires/hour |
|
Rotating speed |
1440r/min |
Motor power |
15kw |
Dimensions(L*W*H) |
1500*900*1400mm |
Weight |
1300kg |
Description

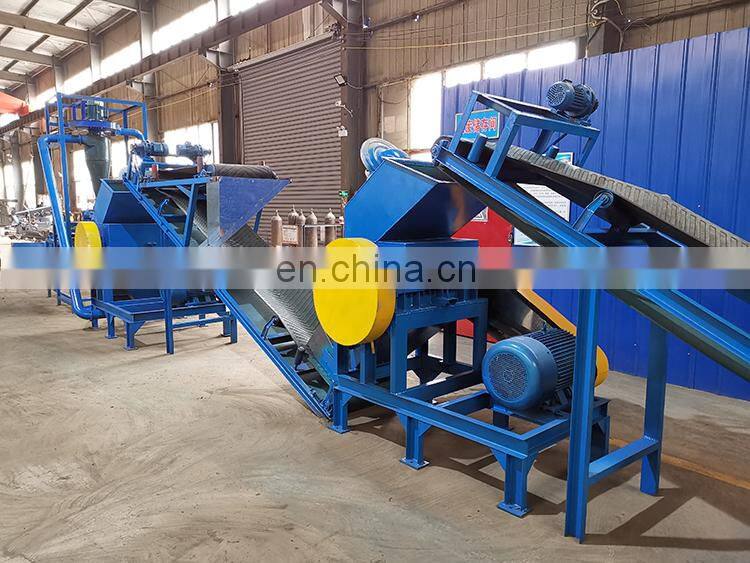

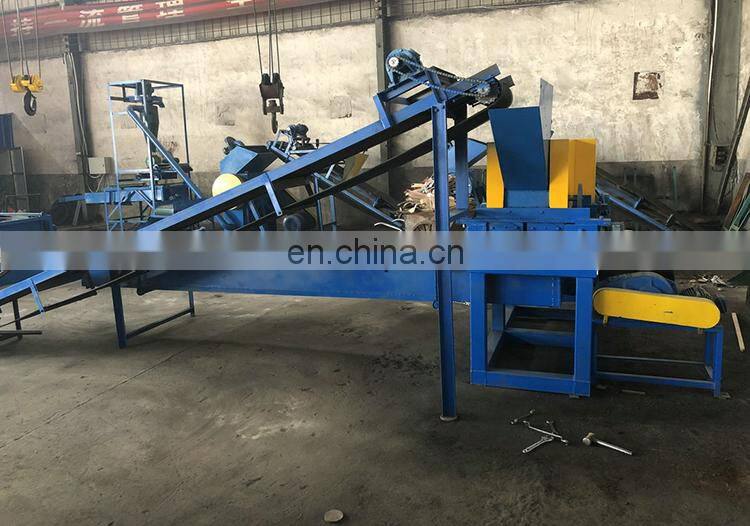

The rubber granule machine is a product that processes waste rubber products, scraps, used tires, and the like into rubber granules.
Application: Mainly used in sports tracks, highways, high-speed railways, etc., which need to be shock-absorbing, noise-reducing and non-slip.
Model |
800 |
1000 |
300-500kg |
300-500kg |
|
Feed size |
30-50mm |
8-12 mm |
Discharge size |
10-20mm |
1--5mm |
Rotating speed |
650 r/min |
680 r/min |
Weight |
1000 KG |
1200 KG |
Dimension |
1.65*1.2*2.05m |
1.65*1.4*2.05m |
Description

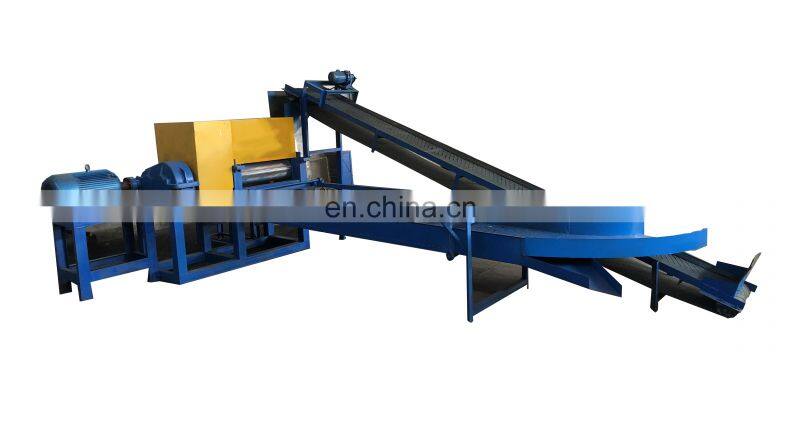

Roller type tire rubber grinding equipment is mainly used for the crushing of rubber products such as rubber and tires. The front roller is a polished circular groove surface, the rear roller is a polished serrated groove surface, The inside of the roller is hollow. According to the use requirements, the cooling water circulation can be used to adjust the surface temperature of the roller.The two rolls are rotated relative to each other at different speeds to grind the rubber.
Name |
Tire power mill |
Capacity |
400-500kg |
Feed size |
30-50mm |
Discharge size |
5-40 |
Power |
37kw |
Weight |
2T |
