Waste Processing Machine Solid Liquid Separator for Chicken Sheep Cow Manure
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2011
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Professional Automatic Mung Bean Peeling MachineNegotiableMOQ: 1 -
Automatic Batch Ball Round American Popcorn Production LineNegotiableMOQ: 1
-
Small Standard the Sweet International Paper of Takeaway Head Suction Types Box Making Machine co Company in Inc sa India SwitzeNegotiableMOQ: 1
-
Full Automatic New Design Popular Sale Spiral Wire Binding Machine for A4 PaperNegotiableMOQ: 1
-
Automatic Stainless Steel Dishwasher MachineNegotiableMOQ: 1
Product Description

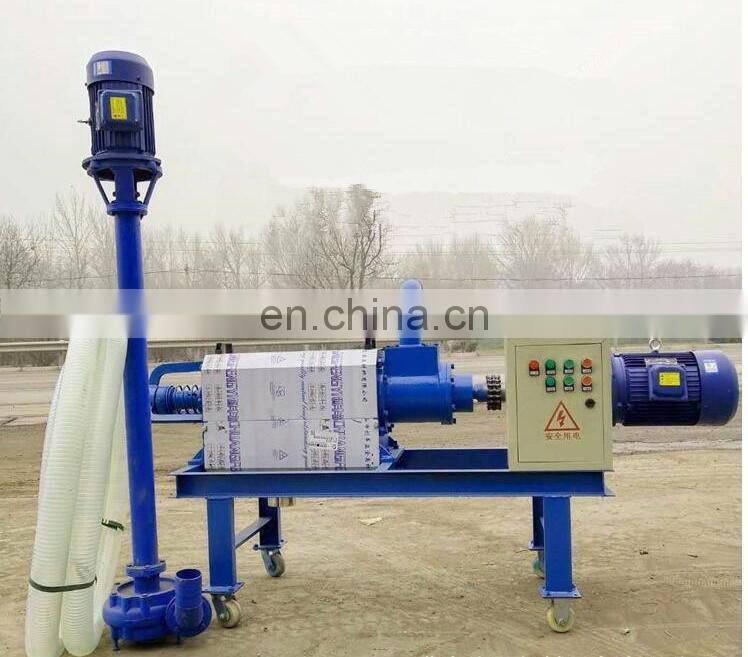

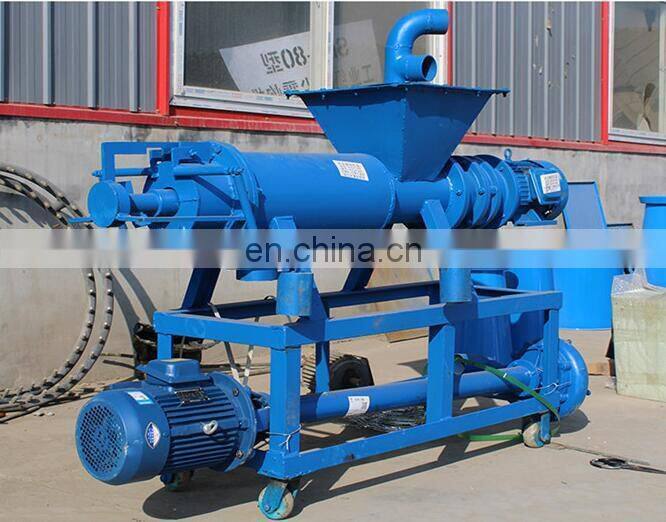

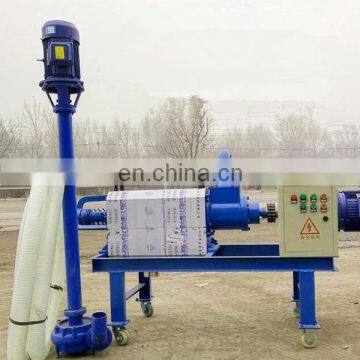

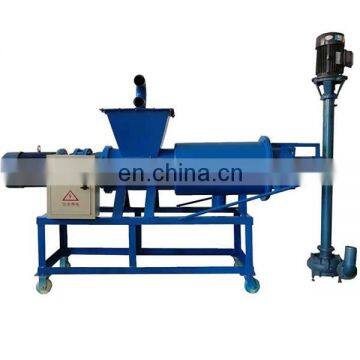

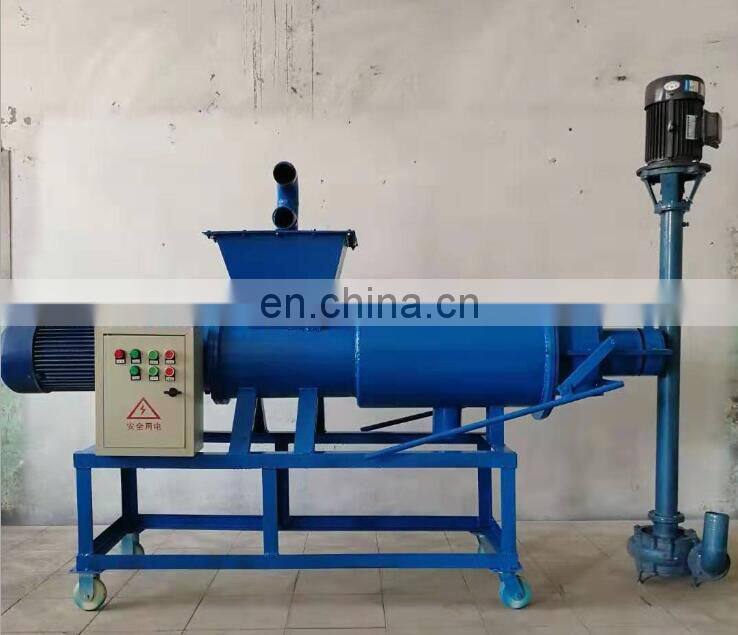

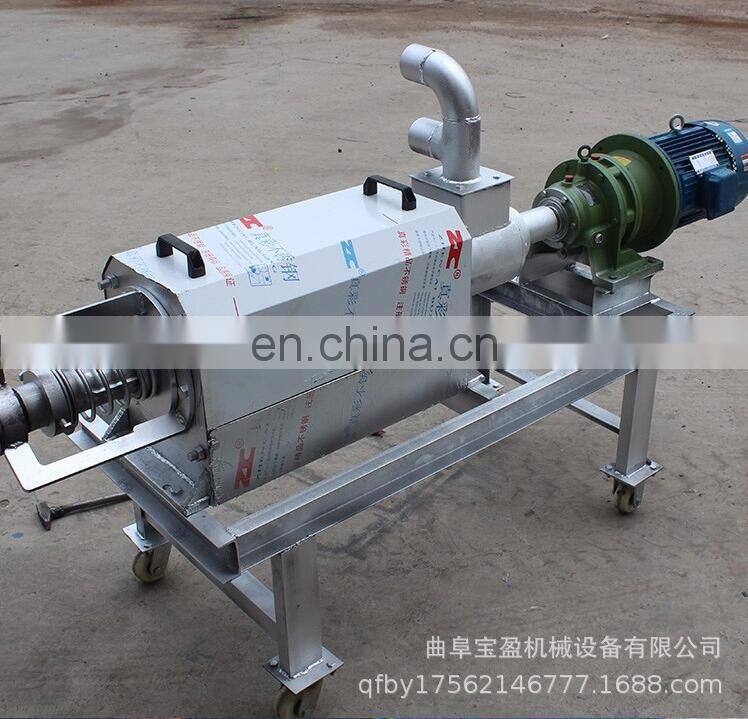

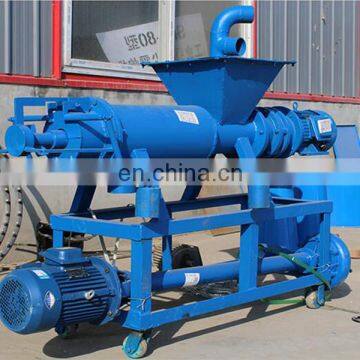

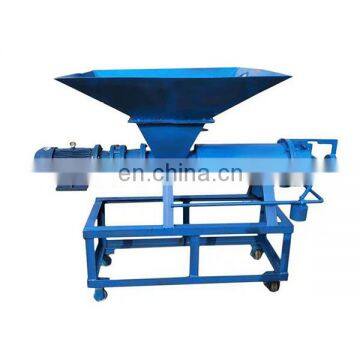

Product View
Structure

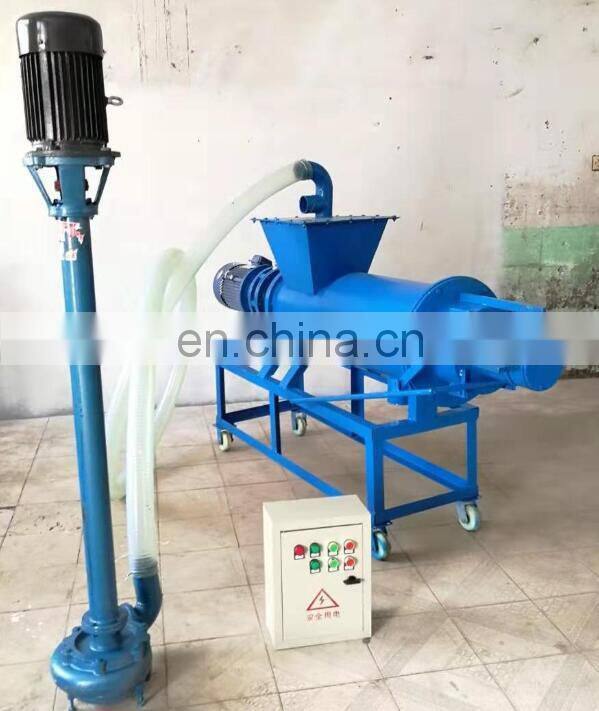

Host, a non-blocked pump, a control cabinet, and a pipeline. The main body consists of a body, a mesh screen, a squeeze Dragon, a vibration motor, a deceleration motor, a weight distribution, and a unloading device.
Description
The animal waste solid liquid separator is designed to reduce the water content of animal manure, such as cow dung, pig manure and chicken manure. In addition, the animal waste solid liquid separator can remove acid sludge, dregs, kitchen waste and many other dregs. It separates solids and liquids well. Solids can be used to make organic fertilizers or fuels, and liquids are good materials for irrigation.
Features
(1) Screw-type extrusion solid-liquid separator has small volume, low rotation speed, simple operation, convenient installation and maintenance, low cost, high efficiency, fast investment recovery, and no need to add any coagulant;
(2) Integrated hopper design, stable feeding compensation, wet and dry design;
(3) Thick stainless steel spiral shaft, the part is subjected to wear-resisting treatment, long service life, and the pitch parameter is scientific and reasonable;
(4) The electronic control system has overload protection, leakage protection and low voltage protection;
(5) The stainless steel filter mesh is manufactured by strip-shaped high-precision molding process, which has the characteristics of good filtration, anti-clogging and long service life;
Working principle
The working process is as follows: The unplugged pump pumps NON-fermented pig dung into the body and accelerates the discharge under the action of a vibration motor. At this time, the power transmission, squeezing the Dragon, gradually pushes the dung water to the front of the body, while constantly improving the front edge pressure, The moisture in the material is forced to squeeze out the screen and flow out the drain pipe under the action of edge pressure band filtration. The work of the Extrusion is continuous, the material is continuously pumped into the body, and the pressure on the leading edge is constantly increasing. When it is large to a certain extent, the discharge mouth is opened and the extrusion mouth is squeezed to achieve the purpose of extrusion. In order to master the speed and water content of the feed, the weight distribution block below the host can be adjusted to achieve a satisfactory and appropriate feed state.
Model Number |
Inlet |
Drain outlet |
Dry manure output (CBM) |
Mainframe Power/Voltage |
Pump power (KW) |
Dimensions (Length*width*height)mm |
Weight (KG) |
180 |
76m |
102mm |
5 CBM |
4kw / 380V/220V |
3KW |
1800*1300*500mm |
230 KG |
200 |
7 CNM |
5.5kw /380V/220V |
2100*1400*500mm |
360 KG |
|||
200 (Extended type) |
7 CBM |
5.5kw / 380V |
2300*1400*500mm |
380 KG |
|||
280 (Extended type) |
12 CBM |
7.5kw /380V |
2300*1400*600mm |
400 KG |
|||
300 |
15 CBM |
7.5kw/380V |
2400*1400*600mm |
420 KG |
|||
300 (Extended type) |
15 CBM |
7.5kw/380V |
2550*1400*600mm |
450 KG |
|||
400 |
20 CBM |
11 kw /380V |
2700*1400*800mm |
600 KG |
|||
800(Oblique sieve) |
6 CBM |
4kw / 380V/220V |
320 KG |
||||
1200 (Oblique sieve) |
8 CBM |
5.5kw / 380V |
380 KG |

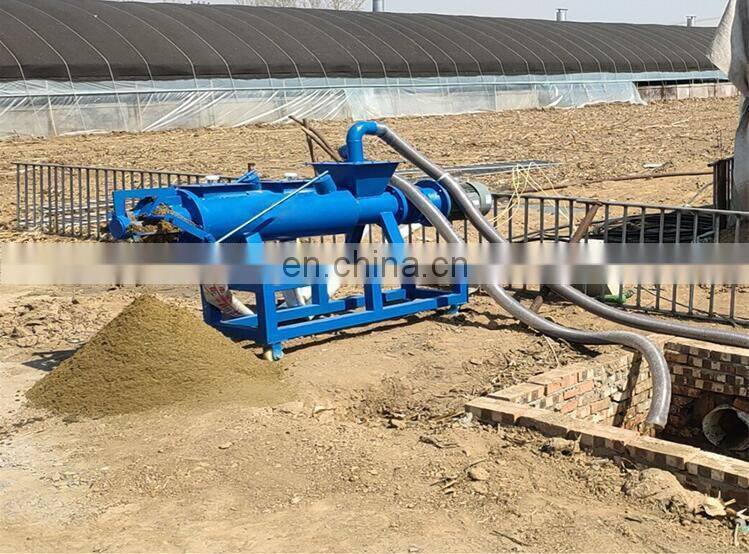

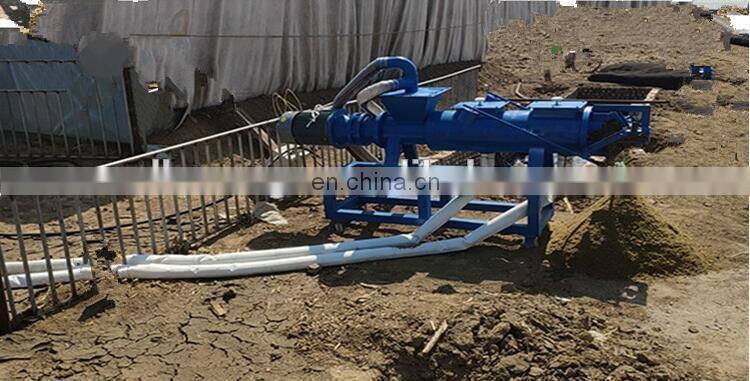

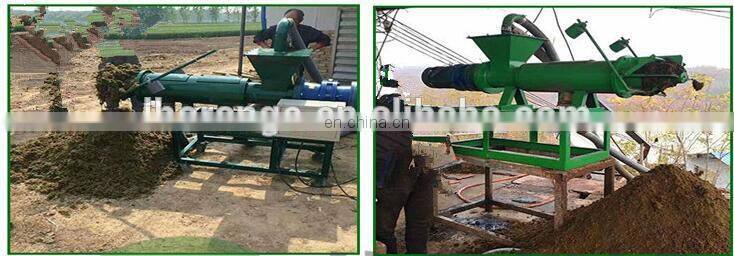

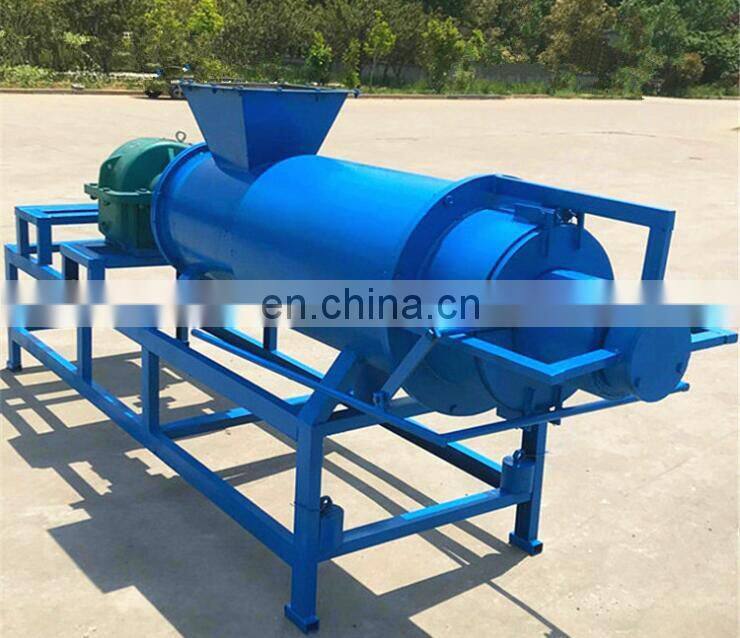

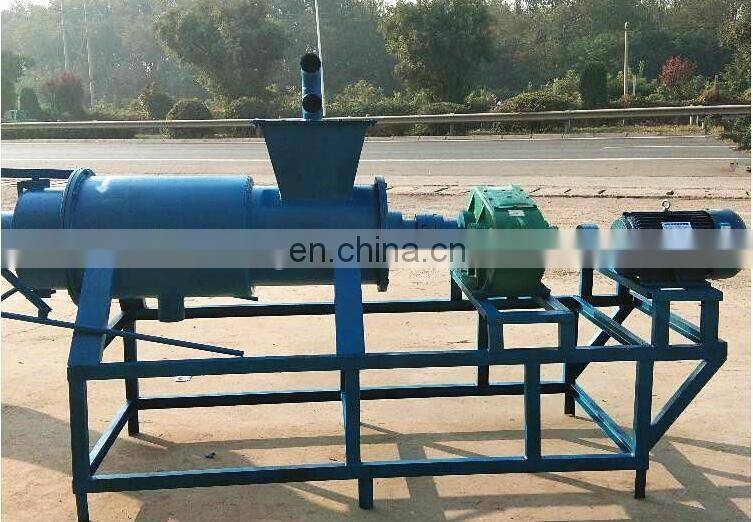

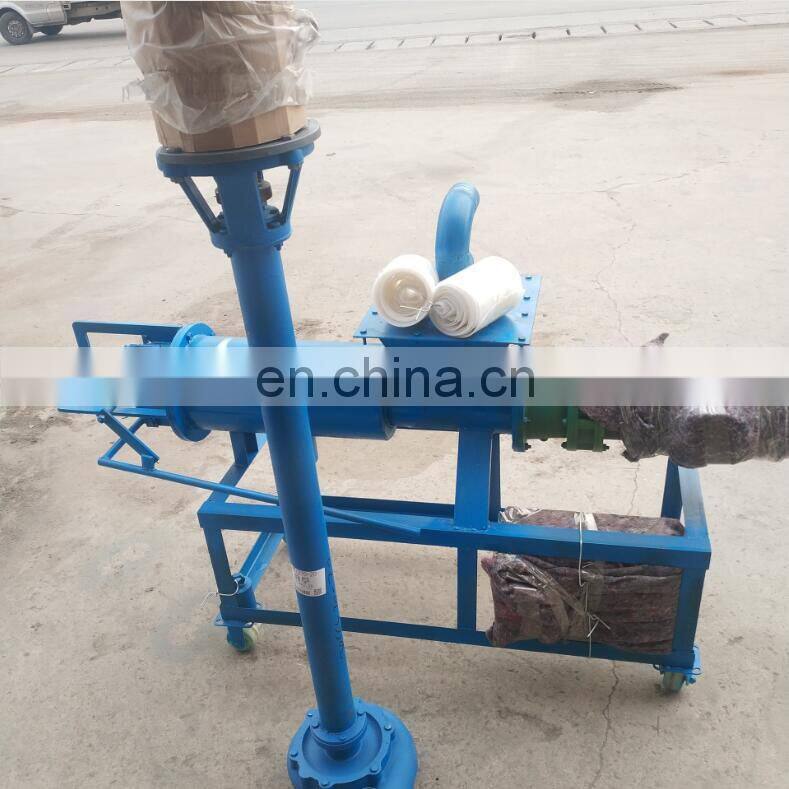

Product Display
Packing & Delivery
Packing: The normal package is wooden. If export to european countries,the wooden box will be fumigated.
FOB
Sea freight
Air freight
About us
Company Profile
Luohe Orange Mechanical Equipment Co.,Ltd (Orange) is a professional mechanical equipment manufacturer which is located in Henan Province, China. The company is specialized in production, processing and sales of food machinery, agriculture machinery and other machineries. The main production scopes that we cover are: snack food processing machines, candy processing machines, fruit and vegetables processing machines, packaging machines, water well drilling machines, and various peeling machines.
The company covers 35,000 m2and the fixed asset of the company is RMB 10 million Yuan. There are over 100 employees, more than 30 technicians, and over 100 sets of various manufacturing equipment. The equipment are included: large scale forcing press machine, digital lathe, digital wire-electrode cutting equipment, various kinds of processing machines and equipment, etc. The company owns national patents and proprietary technology with independent ....
Our Service
1. Inquiry and consulting support
2.Sending machine video for reference
3.Testing machine before delivery according to requirements.
4.View our Factory
After-sales service
Help training customer operation machine
Solve the customer's problem when machines in use through online video
The large equipment or complex machine , appointed engineer overseas service
