Host, a non-blocked pump, a control cabinet, and a pipeline. The main body consists of a body, a mesh screen, a squeeze Dragon, a
vibration motor, a deceleration motor, a weight distribution, and a unloading device.
Description:

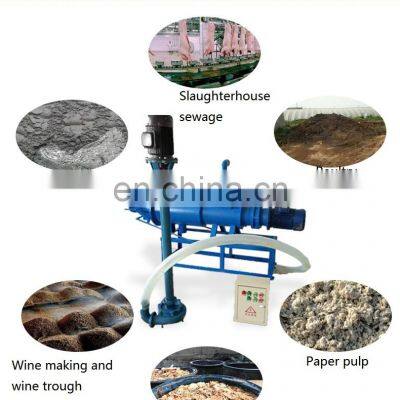

The animal waste solid liquid separator is designed to reduce the water content of animal manure, such as cow dung, pig manure and
chicken manure. In addition, the animal waste solid liquid separator can remove acid sludge, dregs, kitchen waste and many other
dregs. It separates solids and liquids well. Solids can be used to make organic fertilizers or fuels, and liquids are good
materials for irrigation.
Features:
(1) Screw-type extrusion solid-liquid separator has small volume, low rotation speed, simple operation, convenient installation
and maintenance, low cost, high efficiency, fast investment recovery, and no need to add any coagulant;
(2) Integrated hopper design, stable feeding compensation, wet and dry design;

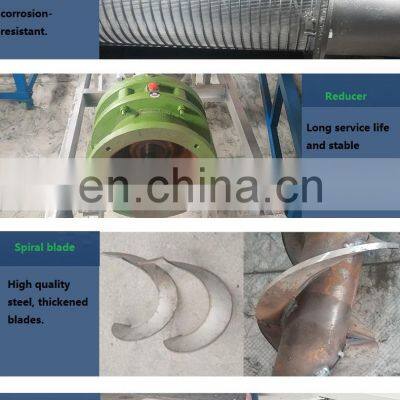

(3) Thick stainless steel spiral shaft, the part is subjected to wear-resisting treatment, long service life, and the pitch
parameter is scientific and reasonable;
(4) The electronic control system has overload protection, leakage protection and low voltage protection;
(5) The stainless steel filter mesh is manufactured by strip-shaped high-precision molding process, which has the characteristics
of good filtration, anti-clogging and long service life;
Working principle:
The working process is as follows: The unplugged pump pumps NON-fermented pig dung into the body and accelerates the discharge
under the action of a vibration motor. At this time, the power transmission, squeezing the Dragon, gradually pushes the dung water
to the front of the body, while constantly improving the front edge pressure, The moisture in the material is forced to squeeze
out the screen and flow out the drain pipe under the action of edge pressure band filtration. The work of the Extrusion is
continuous, the material is continuously pumped into the body, and the pressure on the leading edge is constantly increasing. When
it is large to a certain extent, the discharge mouth is opened and the extrusion mouth is squeezed to achieve the purpose of
extrusion. In order to master the speed and water content of the feed, the weight distribution block below the host can be
adjusted to achieve a satisfactory and appropriate feed state.
Model Number |
Inlet |
Drain outlet |
Dry manure output (CBM) |
Mainframe Power/Voltage |
Pump power (KW) |
Dimensions (Length*width*height)mm |
Weight (KG) |
180 |
76m
|
5 CBM |
4kw / 380V/220V |
3KW
|
1800*1300*500mm |
230 KG |
|
200 |
7 CBM |
5.5kw /380V/220V |
2100*1400*500mm |
360 KG |
|||
200 (Extended type) |
7 CBM |
5.5kw / 380V |
2300*1400*500mm |
380 KG |
|||
280 (Extended type) |
12 CBM |
7.5kw /380V |
2300*1400*600mm |
400 KG |
|||
300 |
15 CBM |
7.5kw/380V |
2400*1400*600mm |
420 KG |
|||
300 (Extended type) |
15 CBM |
7.5kw/380V |
2550*1400*600mm |
450 KG |
|||
400 |
20 CBM |
11 kw /380V |
2700*1400*800mm |
600 KG |
|||
800(Oblique sieve) |
6 CBM |
4kw / 380V/220V |
320 KG |
||||
1200 (Oblique sieve) |
8 CBM |
5.5kw / 380V |
380 KG |
