Durable Motorcycle Truck Waste Tyres Rubber Process Machine

Durable Motorcycle Truck Waste Tyres Rubber Process Machine photo-1
Durable Motorcycle Truck Waste Tyres Rubber Process Machine photo-2
Durable Motorcycle Truck Waste Tyres Rubber Process Machine photo-3
Durable Motorcycle Truck Waste Tyres Rubber Process Machine photo-4
Durable Motorcycle Truck Waste Tyres Rubber Process Machine photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2011
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description

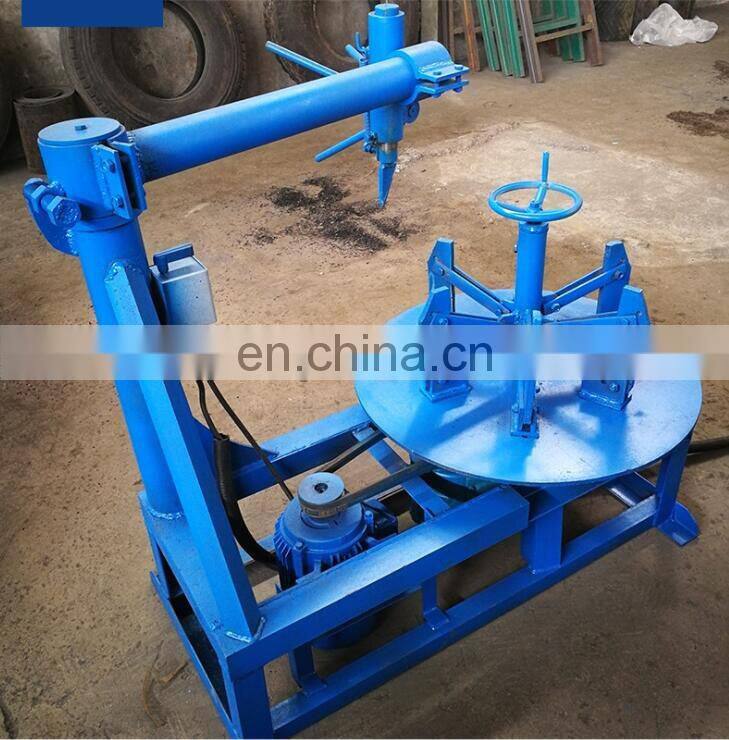

Tyre side ring cutting machine

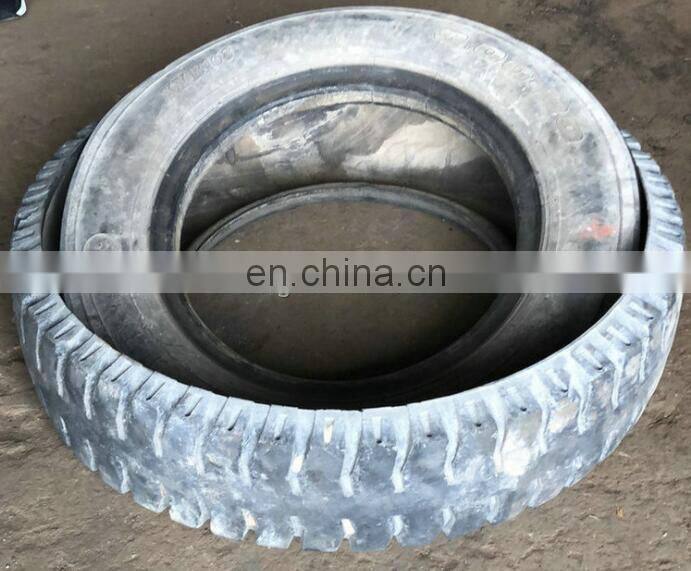

The ring cutting machine is used to cut off the sidewall of the steel wire tire for the next step. Place the tire on the disc platform, rotate the middle hand wheel, the three-jaw clamping frame will firmly clamp the inner ring of the tire, turn on the power, the working platform rotates, the cutting tool feeds as needed, and slowly cuts into the tire, step by step, Until the side of the tire is cut off.

Voltage: 380V 3phase 50HZ
Power: 4KW
Capacity:25-30 tyre / h
Tyer diameter: 750-1200mm Dimension:1150*850*1200mm Weight:500KG
Tyre side ring cutting machine
The ring cutting machine is used to cut off the sidewall of the steel wire tire for the next step. Place the tire on the disc platform, rotate the middle hand wheel, the three-jaw clamping frame will firmly clamp the inner ring of the tire, turn on the power, the working platform rotates, the cutting tool feeds as needed, and slowly cuts into the tire, step by step, Until the side of the tire is cut off.
Voltage: 380V 3phase 50HZ Power: 5KW Capacity:25-30 tyre / h Tyer diameter: <1200mm Dimension:1300*800*1580mm Weight:800KG

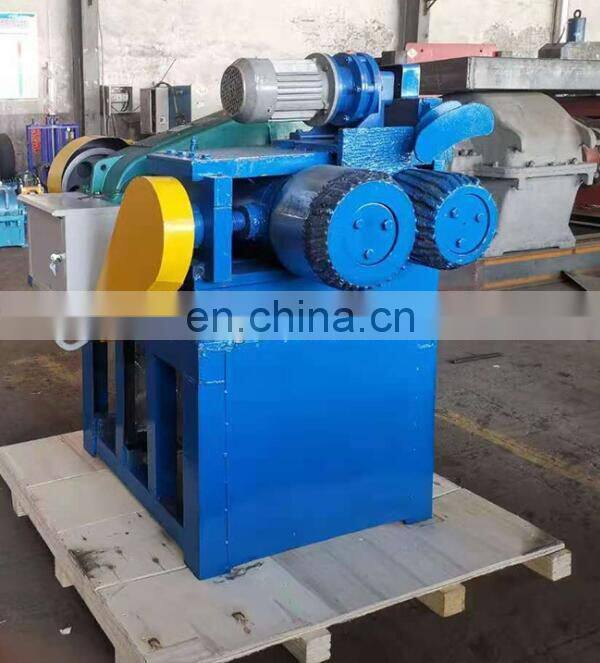

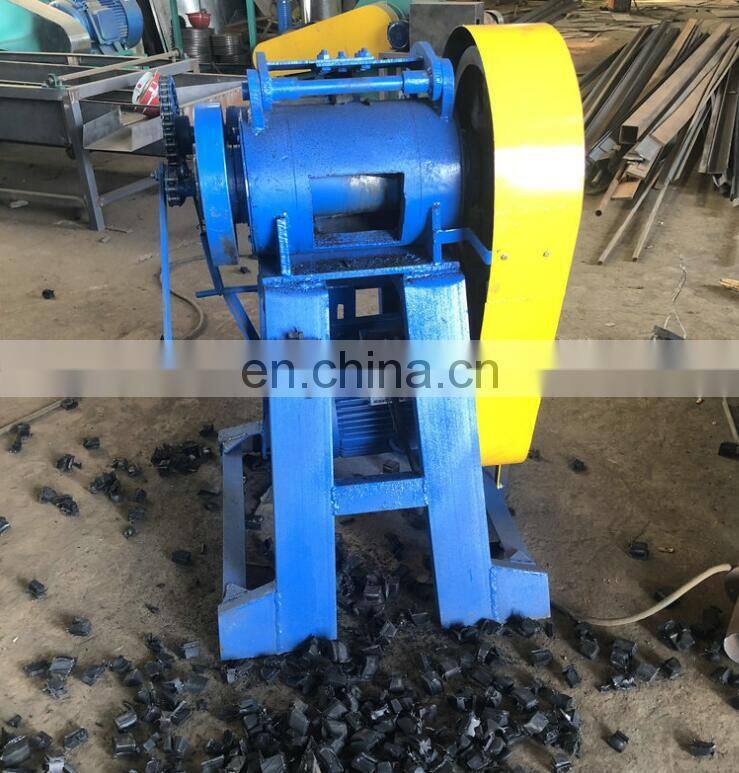

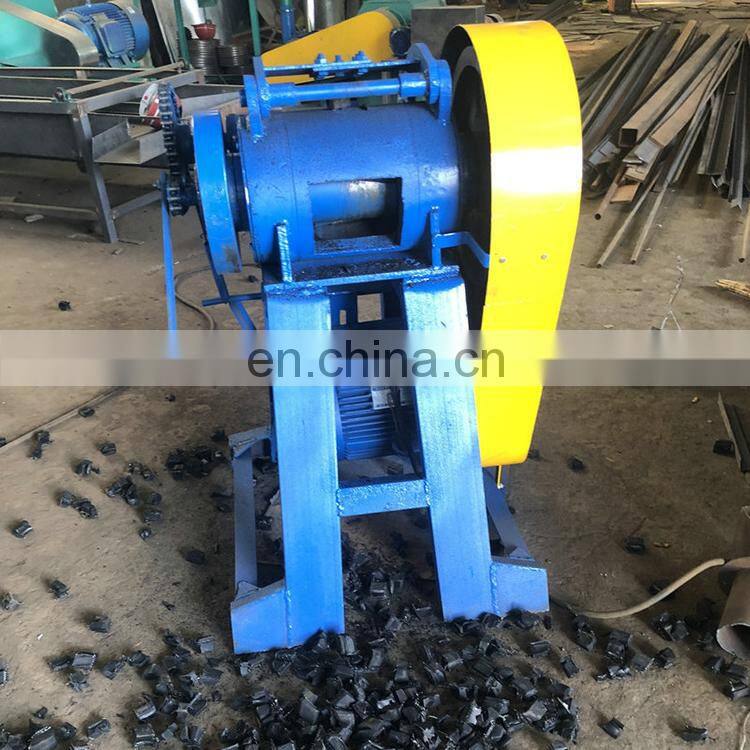

Tyre block cutting machine
This machine is used to cut the whole tire, rubber pieces, rubber board into rubber bars. 1. The blade adopts special metal heat treatment, which is hard and durable, and can be used for repeated grinding. 2. Cut strips at an average speed without jamming.
Voltage: 380V 3phase 50HZ Power: 11KW Capacity:25-30 tyre / h Final size: 35*35*35mm Dimension:800*800*1300mm Weight:600KG
Tyre steel ring seperator
Used in conjunction with the wire tire ring cutting machine, it is used to separate the rubber layer on the tire ring surface cut by the wire tire ring cutting machine from the thin steel wire/cord wound on it to obtain a complete and relatively pure bead. Steel wire.

Voltage: 380V 3phase 50HZ Power: 22KW Capacity:2 tyre ring / min Discharge port: 1.2*1100*1200mm Dimension:1500*1100*1200mm Weight:1800KG

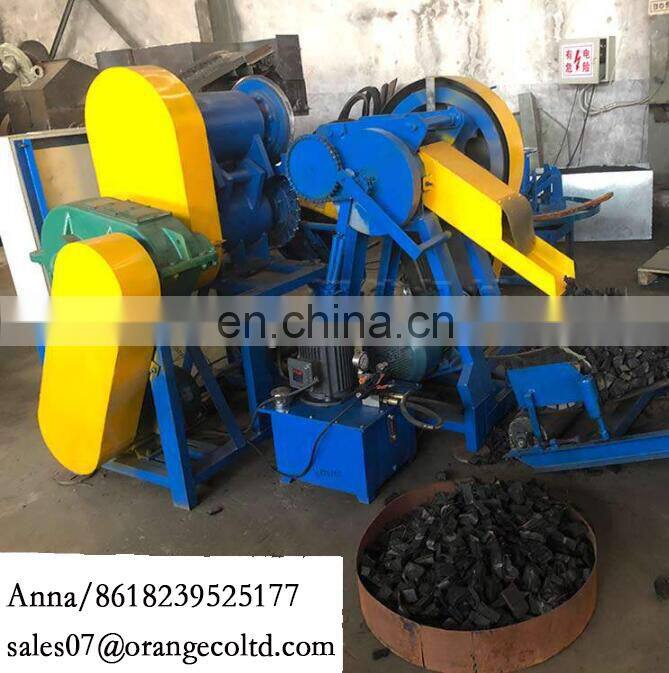

Product Display
Packing & Delivery

Packing: The normal package is wooden. If export to european countries,the wooden box will be fumigated.

FOB

Sea freight

Air freight

About us

Company Profile

Luohe Orange Mechanical Equipment Co.,Ltd (Orange) is a professional mechanical equipment manufacturer which is located in Henan Province, China. The company is specialized in production, processing and sales of food machinery, agriculture machinery and other machineries. The main production scopes that we cover are: snack food processing machines, candy processing machines, fruit and vegetables processing machines, packaging machines, water well drilling machines, and various peeling machines.

The company covers 35,000 m2and the fixed asset of the company is RMB 10 million Yuan. There are over 100 employees, more than 30 technicians, and over 100 sets of various manufacturing equipment. The equipment are included: large scale forcing press machine, digital lathe, digital wire-electrode cutting equipment, various kinds of processing machines and equipment, etc. The company owns national patents and proprietary technology with independent ....


Our Service


1. Inquiry and consulting support


2.Sending machine video for reference


3.Testing machine before delivery according to requirements.


4.View our Factory

After-sales service

Help training customer operation machine


Solve the customer's problem when machines in use through online video


The large equipment or complex machine , appointed engineer overseas service
