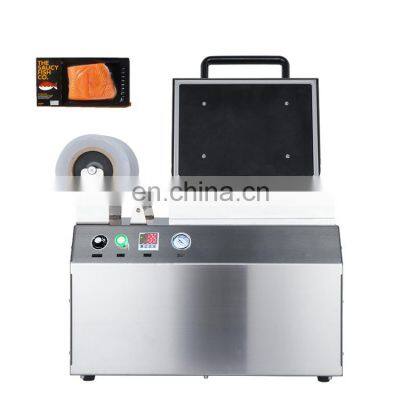

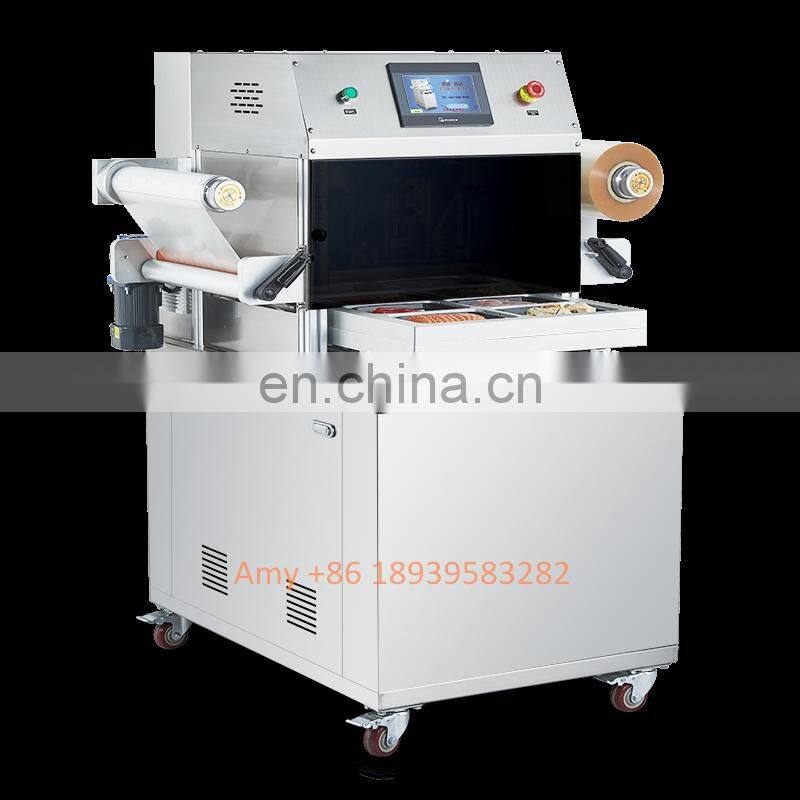

Automatic Skin Vacuum Packaging Machine Sausage Fish Meat Skin Packing Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2011
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Food Tray Sealing Packing Machine Vacuum Skin Packaging Machine for MeatNegotiableMOQ: 1 -
Automatic 100g 500g 1kg 2kg 5kg Flour Detergent Powder Filling Packing Machine Bottling Machine Filling Machine LiquidNegotiableMOQ: 1
-
Mineral Water Cup Filling Sealing Machine Mineral Water Filling Machine PriceNegotiableMOQ: 1
-
Cheap Auto Bottle Juice Filling Machine Rotary Bottle Filling MachineNegotiableMOQ: 1
-
Paper Bag String Making MachineNegotiableMOQ: 1

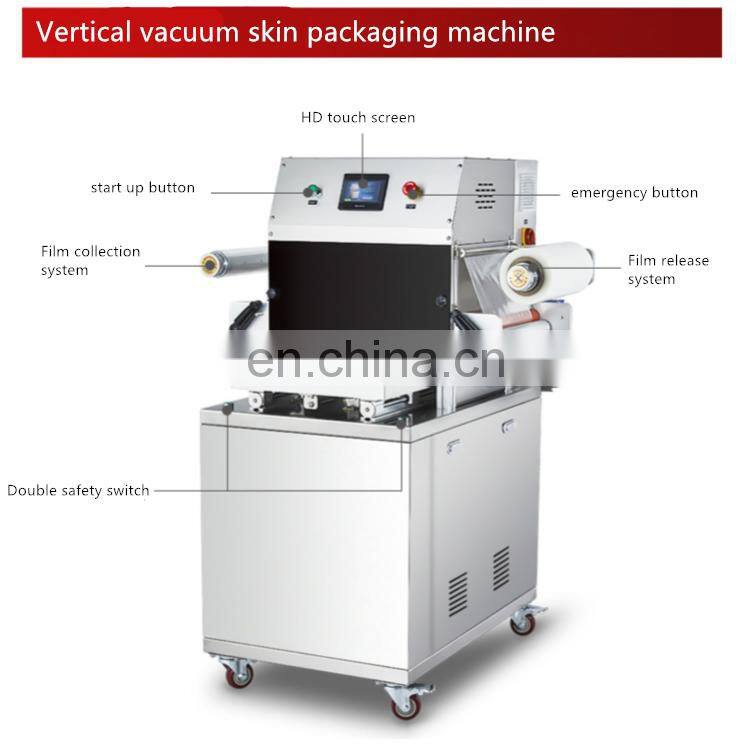

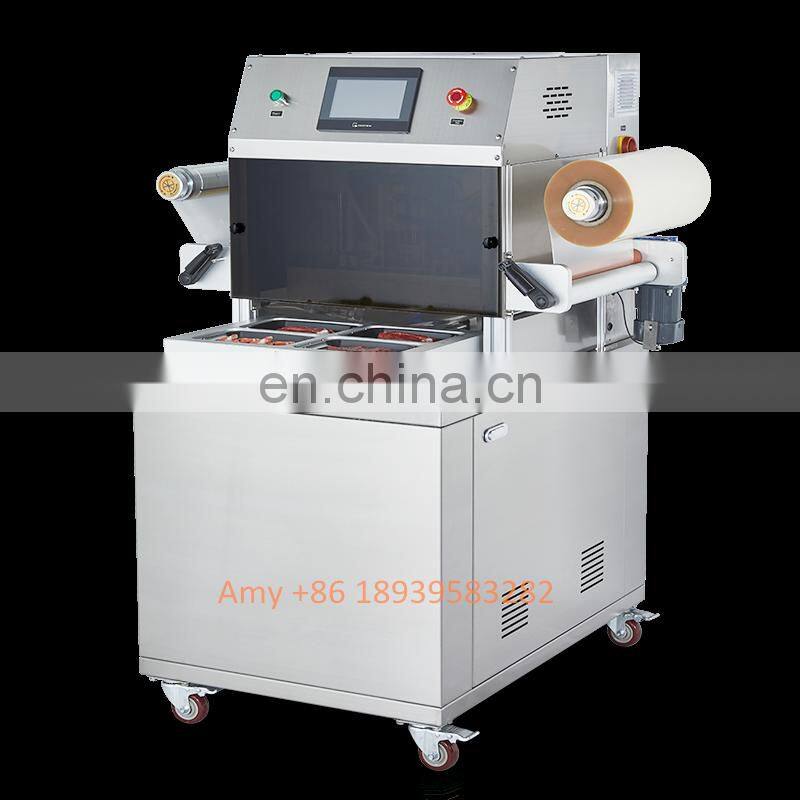

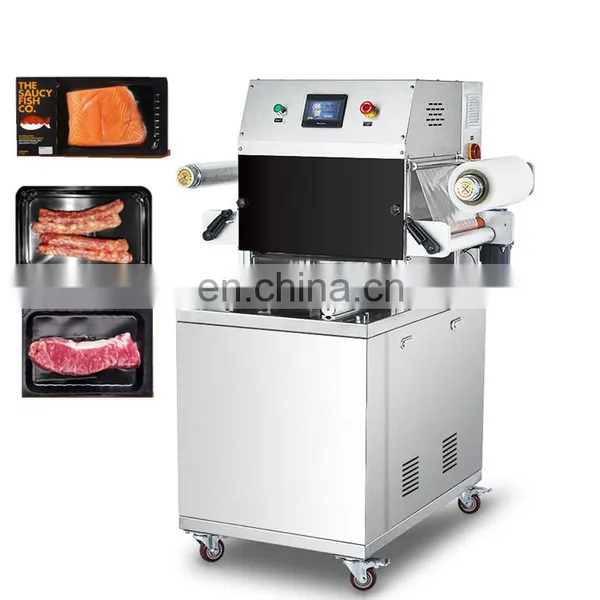

Automatic skin vacuum packaging machine sausage fish meat skin packing machine
Product Overview
Multifunctional vacuum skin packing machine processing fish meat fruit vegetable skin pack machine
The Skin Vacuum Packing Machine of food is the vacuum sealed between the transparent vacuum film and the chassis in a vacuum.It can keep the product color, fragrance and freshness, the double effect of the special packaging and the vacuum preservation. Skin Vacuum Packing Machine is a kind of automated forming and vacuum skin pack equipment.Especially pack meat,seafood, fish, codfish, salmon, shrimp, steak, sausage, etc,.
The Skin Vacuum packing machine working princyple:
The principle of the body fit vacuum packing machine: the composite film with low viscosity is adopted to place the material on the bracket or film of the lower template. Under the vacuum state, the heat generated by the heating plate is sent to the vacuum chamber through the exhaust outlet to instantly heat the whole body of the composite film with low viscosity and compound it together to achieve the effect of vacuum packaging.
Specification:
1. It can prevent the ice crystal from being produced when refrigerated and prevent the product surface from cracking due to frost burn.
2. Can be used as a package, consumers can partially open the packaging, and then put the products in the remaining packaging back into the fridge to continue to be refrigerated for later consumption, which is convenient and hygienic.
2. Can be used as a package, consumers can partially open the packaging, and then put the products in the remaining packaging back into the fridge to continue to be refrigerated for later consumption, which is convenient and hygienic.
Product Details

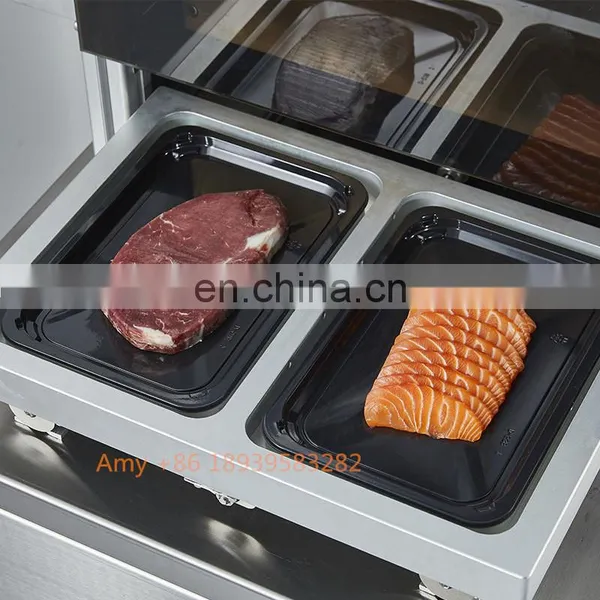

High-quality aluminum mold, anti-oxidation treatment, light weight, high strength, corrosion resistance
High-quality aluminum mold, anti-oxidation treatment, light weight, high strength, corrosion resistance

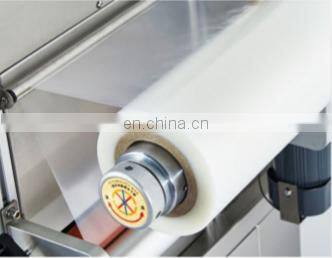

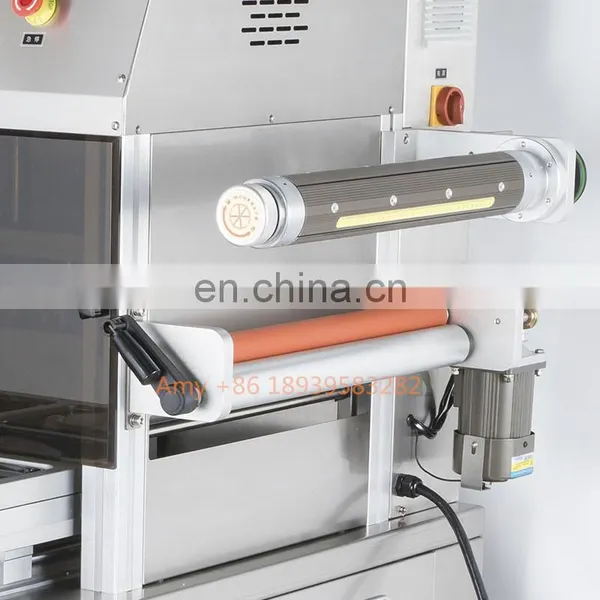

The new double-handed expansion shaft rewinding system keeps the level of the film stable, simple and convenient to change the film, and the film is accurate and unbiased

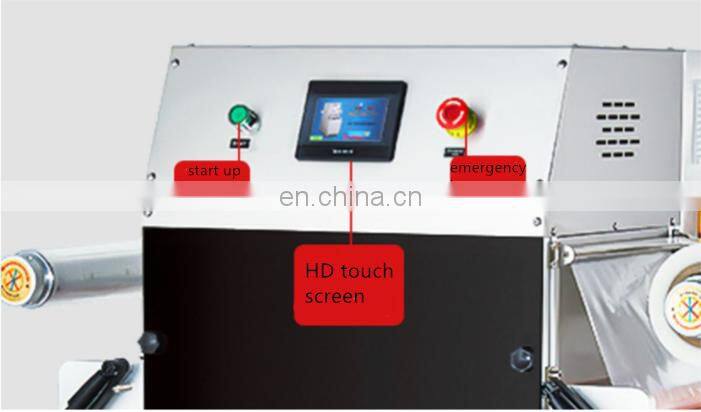

The more high-end machinery, the higher the degree of integration, the fewer buttons, and the less manual intervention required. Hexianbao adopts a highly integrated intelligent control system, which is convenient to operate and easy to use.
Precise film walking system
The installation and unloading of heat-sealing film is simple and convenient.

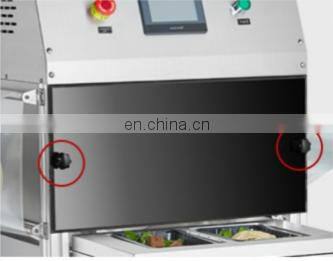

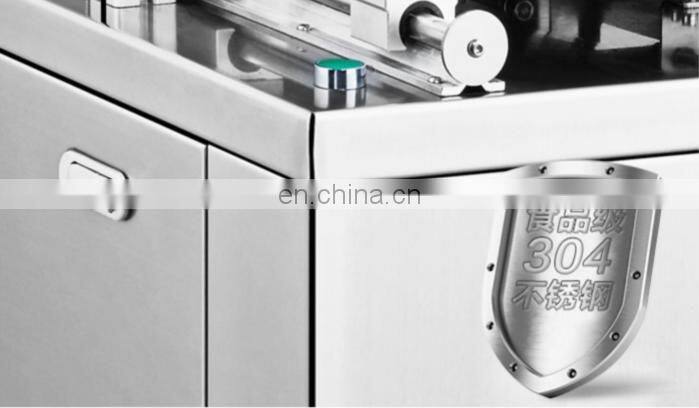

Closed case design
Enclosed chassis to ensure food hygiene and effectively prevent damage to the wiring caused by rats inside the equipment

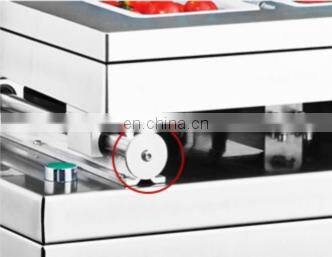

Unique slide rail stopper
Designed to prevent the lower mold from falling, improve production safety and reduce production accidents
Tool-free replacement of molds
Advanced mold replacement structure, without any tools, only 3 minutes to replace a set of molds
PRODUCT SPECIFICATIONS
Model | DQ330VSL | DQ440VSL | DQ240VST | DQ300VST |
Max film width(mm) | 320 | 440 | 250 | 320 |
Max film diameter(mm) | 220 | 220 | 180 | 180 |
Packing speed(times/min) | 2～3 | 2～3 | 2 | 2 |
Capacity 1-1(pcs/h) | ≈180 | ≈180 | ≈120 | ≈120 |
Capacity 1-2(pcs/h) | ≈300 | ≈300 | ≈320 | ≈320 |
Capacity 1-4(pcs/h) | ——— | ≈500 | ——— | ——— |
Flow of vacuum pump(m3/h) | 63 | 100 | 10 | 20 |
Voltage(v/hz) | 380/50 | 380/50 | 220/50 | 220/50 |
power(kw) | 2.4 | 4.8 | 1 | 2 |
working pressure(Mpa) | 0.6～0.8 | 0.6～0.8 | ——— | ——— |
weight(kg) | 190 | 370 | 36 | 56 |
SizeL×W×H(mm) | 1020×920×1400 | 1200×1170×1480 | 560×380×450 | 600×450×400 |
Packing weight(kg) | 272 | 528 | 40 | 68 |
Packing size L×W×H(mm) | 1110×1020×1550 | 1480×1380×1660 | 600×420×510 | 680×520×560 |

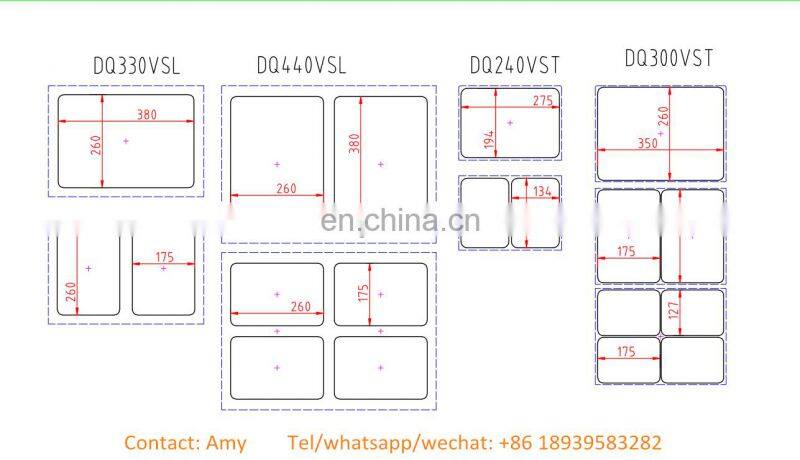

Tray max size 1-1 | 390×270×30（×1） | ——— | 270×180×30（×1） | 390×270×30（×1） |
Tray max size 1-2 | 270×180×30（×2） | 380×260×30（×2） | 200×140×30（×2） | 270×180×30（×2） |
Tray max size 1-4 | ——— | 260×175×30（×4） | ——— | ——— |
Height of materials mm | 50mm | 50mm | 40mm | 40mm |
