Product Description

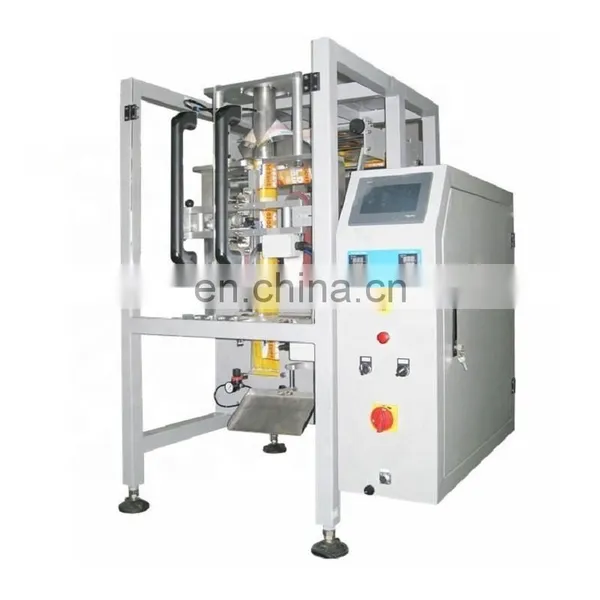

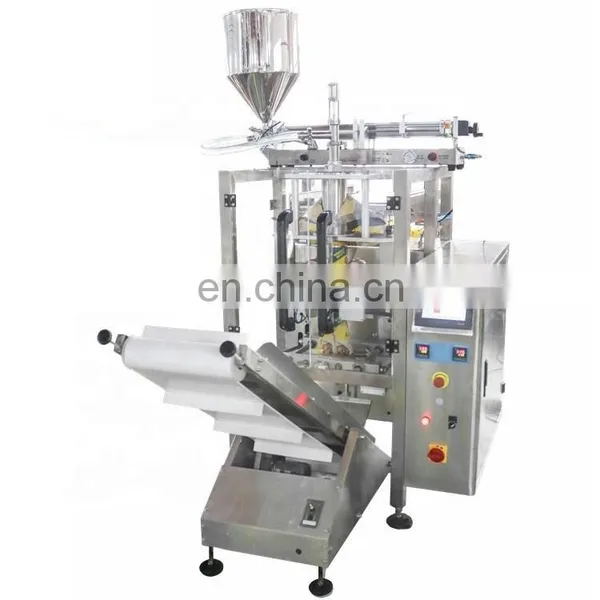

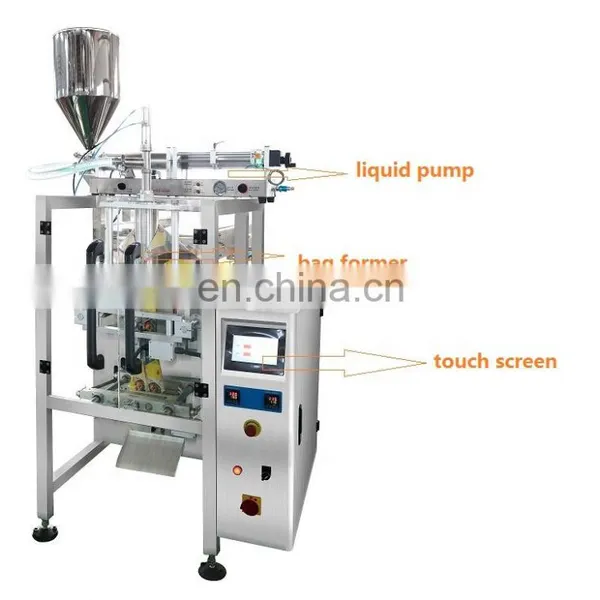

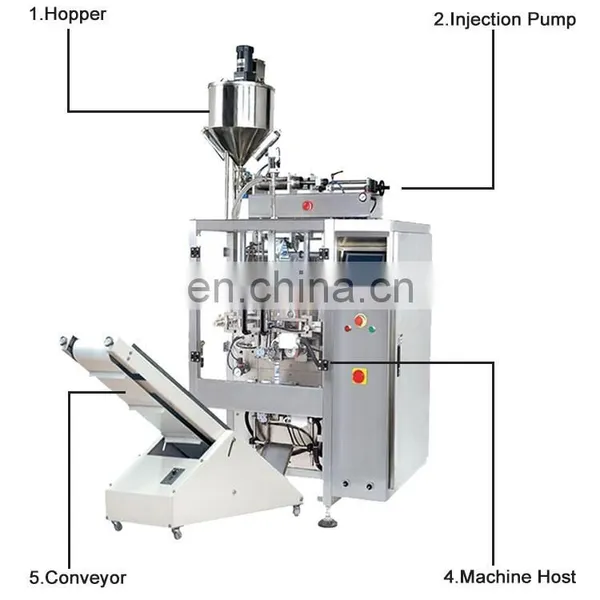

High Speed Pneumatic Automatic 1kg liquid oil/paste vertical packing machine for sale
1. The contact parts between the machine and the materials are all made of SUS304 stainless steel. The single-chip microcomputer liquid crystal display is intelligently controlled. The fault alarm and circulating wind electric control box are designed for 24-hour work, frequency conversion and speed regulation. , Filling, sealing, cutting and counting are completed automatically.
2. Automatic shutdown when there is no film, stepping motor pulls the bag, whether it is fixed-length bag making or cursor tracking bag making, it is set and cut, no need to adjust the empty walking, one step in place, saving time and film.
3. The temperature adopts solid-state intelligent dual-channel temperature control and independent PID control, which is better suitable for various packaging materials, and the automatic opening device of the heat seal body at shutdown can prevent the packaging materials and materials from being scalded.
4. The device can be equipped first: ribbon printer, inflation device, exhaust device, molding device knocking device.
5. The transmission system is scientific and concise, the work is more reliable, and the maintenance is more convenient.
6. Packaging materials: polyester / polyethylene (PET / PE), paper / polyethylene (Paper / PE), polyester / aluminum / polyethylene (PET / AL / PE), OPP / polyethylene (OPP / PE) ).
2. Automatic shutdown when there is no film, stepping motor pulls the bag, whether it is fixed-length bag making or cursor tracking bag making, it is set and cut, no need to adjust the empty walking, one step in place, saving time and film.
3. The temperature adopts solid-state intelligent dual-channel temperature control and independent PID control, which is better suitable for various packaging materials, and the automatic opening device of the heat seal body at shutdown can prevent the packaging materials and materials from being scalded.
4. The device can be equipped first: ribbon printer, inflation device, exhaust device, molding device knocking device.
5. The transmission system is scientific and concise, the work is more reliable, and the maintenance is more convenient.
6. Packaging materials: polyester / polyethylene (PET / PE), paper / polyethylene (Paper / PE), polyester / aluminum / polyethylene (PET / AL / PE), OPP / polyethylene (OPP / PE) ).
Model |
OR-420L |
OR-520L |
OR-620L |
Bag size |
(L)60-200 mm
(W)60-200 mm
|
(L)100-300 mm
(W)80-250 mm
|
(L)100-380 mm
(W)100-300 mm
|
Packing speed |
15-60 bags/min |
15-60 bags/min |
15-60 bags/min |
Max. Film width |
420 mm |
520 mm |
620 mm |
Air consumption |
0.6Mps 0.36m³/min |
0.6Mps 0.36m³/min |
0.6Mps 0.36m³/min |
Power supply |
2.2kw, 220V 50/60hz |
3.0kw, 220V 50/60hz |
4.0kw, 220V 50/60hz |
Machine dimension |
1430*970*1600 mm |
1550*1160*1480 mm |
1600*1260*1680 mm |
Specification
Item |
Liquid packing machine |
Type |
Multi-Function Packaging Machine |
Applicable Industries |
Manufacturing Plant, Food & Beverage Factory, Food Shop |
After Warranty Service |
Online support, Spare parts, Field maintenance and repair service |
Condition |
New |
Function |
FILLING, Wrapping, Labeling, Sealing, Gluing |
Application |
Food, Beverage, MEDICAL, Chemical |
Packaging Type |
Bags, Film, Foil |
Packaging Material |
plastic, Paper |
Automatic Grade |
Automatic |
Driven Type |
Electric |
Voltage |
220 V |
Place of Origin |
Henan |
Brand Name |
Orange |
Dimension(L*W*H) |
1430*970*1600mm |
Certification |
CE/ISO9001 |
Warranty |
1 Year |
Video technical support, Online support |
|
Key Selling Points |
Easy to Operate,High speed |
Marketing Type |
New Product 2021 |
Video outgoing-inspection |
Provided |
Warranty of core components |
1 Year |
Core Components |
Motor, PLC, Gear, Bearing, Gearbox |
Production Capacity |
20-60 bag/min |
Sealing type |
Hot Sealing |
Automaticity |
Touch Screen Control |
Main Function |
filling, sealing, packing |
Film material |
OPP/CPP. OPP/CE, MST/PE |
Voltage |
220V 1phase |
Power |
2.2-4KW |
Max. Film width |
420-620mm |
Aire consumption |
0.6Mps 0.36m³/min |
Apply for |
liquid/juice/milk/sauce |
