OrangeMech 500l fermenting system brite beer tank / beer brewing equipment / beer brewery machine plant

Name: OrangeMech 500l fermenting system brite beer tank / beer brewing equipment / beer brewery machine plant
Price: Negotiable

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Description

500l fermenting system brite beer tank / beer brewing equipment / beer brewery machine plant

Introduction :
Brewing beer equipment is the production process of malt beverages. Beer is the main malt beverage produced by brewing method. Brewing is a complex fermentation process, which is different from other industrial fermentations because flavor, aroma, transparency, color, foam yield, foam stability and alcohol percentage are factors related to the finished product. , Use the following steps:

Firstly, malting is made. Beer is produced from barley grains. The barley grains are washed, then soaked in water for about 2 days, then the excess water is drained, and the barley is incubated for 4-5 days to germinate. Germination forms highly active α-amylase, β-amylase and protease as well as various flavor and color components.

Barley contains a lot of protein. If only barley is used for beer production, the final beer is unstable, so the protein present in malt should be diluted by adding starch or sugar-containing materials. Then kill the germinated seeds by heating at 80°, the heating temperature must not damage the amylase,

The degree of enzymatic hydrolysis largely depends on pH and temperature. β-amylase has the best activity at a temperature of 57-65°C, while α-amylase has the best activity at a temperature of 70-75°. The liquid obtained by saccharification is called wort, which removes the rind, residue and precipitated protein. Dry barley grains are crushed to produce a meal called meal, crushed and mixed with warm water, and kept at 65°C for about 1 hour. In this way, starch is hydrolyzed by amylase to produce monosaccharides, maltose, dextrose, etc., similar to proteins are hydrolyzed into small amino acids by hydrolase.

Then stir the filtrate under stirring for 2-3 hours, add hops during boiling, boiling can extract the hop flavor from the hops, condense the remaining protein and partially hydrolyze the protein and help remove the protein. The enzymes that are active in the saccharification process are inactivated by boiling, otherwise it will cause caramelization of the sugar.

Performance characteristics:

Product Paramenters

Items	Equipment	Specification	Quantity
Malt miller	Malt miller	Double rollers miller	1
Brewhouse system	Mash tun&lautering tun	Milled false bottome, raker with agitator	1
		Brew kettle&whirlpool	Whirlplooling, with different heating soruce(electirc, steam or fire hearing....)	1
		Hot liquid tank	with different heating soruce(electirc, steam or fire hearing....)	1
		Wort oxygenator Plate heat exchanger NANHUA Brand Pump YUY Brand ABB motor Working platform All necessary pipings, pipes and fittings-Sanitary Piping for brewhouse
Fermentation system	Fermenter	Dry hopping port on top Side/top mounted manway Safety/vacuum valve on top Sample valve Test Pressure:0.3 Mpa,Working pressure 0.2Mpa. Rotating racking arm on cone with butterfly valve	6-10
Fermentation system		Yeast adding tank	With thermomete with cone bottom Fine polishing of the yeast tank inside	1
Cooling system	Glycol water tank	Insulation: Polyurethane-thickness: 100mm 100% TIG welding with pure argon gas shield Thermowell with high accuracy temperature sensor: PT100	1
		Cooling compressor	KANSA Brand With temperature controller Condenser type: Efficient inner fin coil type	1
		Pump	Food grade centrifugal pump with open impeller	1
CIP washing system	Alkali tank	two tanks, with pump and trolley	1
			Sterilization tank		1
			Pump		1
Control system	PID controlling system or Siemens PLC control system			1
Spare parts	All spare parts

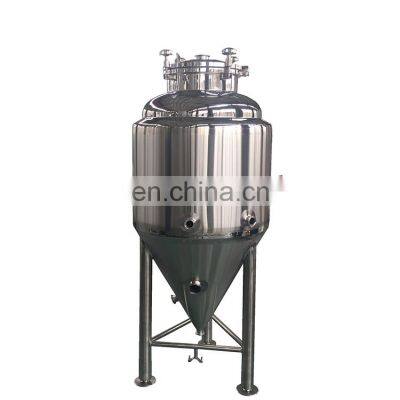

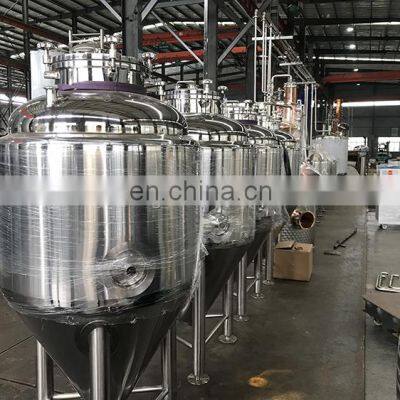

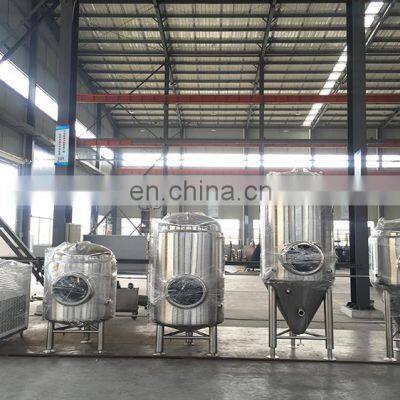

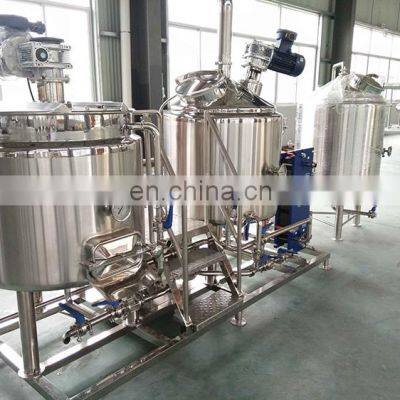

Detailed Images

Related Products

Packing&Shipping

1.We can load container at:qingdao,shanghai ,ningbo,tianjin,guangzhou etc.

2.Orange provide shipping method:Courier service,Air transport,Sea Transport

3.Can accept oder:Full container cargo load,Less container load

4.Our service:EXW,FOB,CIF,CNF,Door to Door etc.

5.We always choose the most economical and reliable shipping company to make sure you receive the goods in time.

6.The tracking number will be provided to you once the consignment is shipped.

After Sales Service

1.All the products have one year guarantee.

2.Providing professional installation instructions and video of troubleshoot.

3.We supply after sales service for 24 hours, 7 days per week. Customer can contact us any time.

4.When some problems can’t be solved by customers, our engineer can go to door to support.

Company Introduction

FAQ

Q1: What are the payment terms?

A: We usually accept payment by T/T, L/C, Western Union or Escrow.

Q2 : Can any of the products be custom imprinted?

A: If you need to print your company logo on the products and that is available to be custom. Or if you have your own designed idea and that will be our honor to customize for you.

Q3: This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?

A: We are alibaba legitimate certification company (VIP), and we support payment terms like L/C, Escrow, to ensure your safety.

Q4: How to ensure that I received the machine undamaged?

A: At first , our package is standard for shipping, before packing, we will confirm product undamaged, otherwise, please contact within 2days. Because we've bought insurance for you, we or shipping company will be responsible!

Q6 : Where will the orders be shipped from?

A: It will ship from the main ports China. And We will find the shipping company which will offer the best and most economical freight for our customers.
