OrangeMech 304 Stainless Steel Baked Salami Slicer for Cutting Block Cheese
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Government ministry/Bureau/Commission
Year Established:
2011
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Professional Well-proportioned Thickness Cheese Butter Cutter MachineNegotiableMOQ: 1 -
Good Price 304 Stainless 1-38mm Steel Group Commercial Cheese Cutting Slicing MachineNegotiableMOQ: 1
-
Paper Thin Meat Slicer/pork Meat Cutting MachineNegotiableMOQ: 1
-
Professional Widely Used Baked Salami Meat Cutting Machine PriceNegotiableMOQ: 1
-
Widely Used High Accuracy Frozen Meat Slicing Meat Slicer Cutting MachineNegotiableMOQ: 1
Product Description

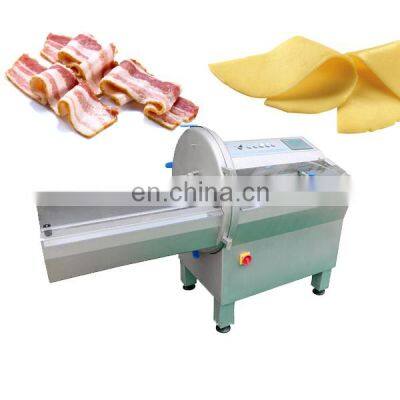

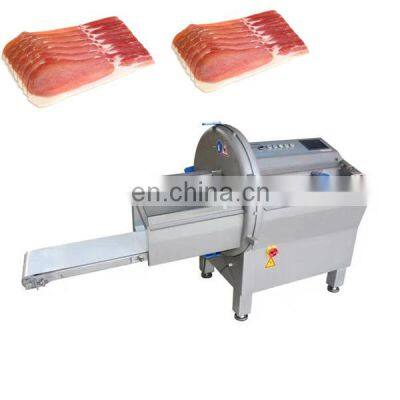

Product View
The slicing/cutting machine is a cutting device for highly demanding high-precision meat products. It mainly cuts the frozen meat, fish, cheese, bacon, sausage and other raw materials into the pieces of meat that the user needs. The replacement of the serrated cutter can also cut the bone-like frozen meat into pieces or segments, which is a high High-efficiency meat slicer for catering and distribution companies, hotels, schools, central kitchens, meat processing plants, etc.
Features:
1.The whole body is made of SUS304 stainless steel, and the body is made of silver-white frosted spray to reduce corrosion and increase the appearance. The joint is fully welded. The internal sealing of the equipment is non-toxic and harmless, and meets the food-grade hygiene requirements.
2. Safe and reliable protection performance: The equipment is equipped with three layers of protection (large knife lock, cutting bin door and material door sensing off), device corner passivation treatment, no sharp corner leakage.
3. User-friendly design of the feeding system and gripper structure, automatic reset structure.
4.The advancement distance of the propulsion device is controlled by the display screen to adjust the thickness of the cutting material.
5. The design of the screw structure reduces the propulsion stagnation rate, improves production efficiency and production quality.
6. The meat can be fed in steps to maximize the cutting accuracy during the cutting process.
7. The meat slices are not sticky, and the thickness is even and tidy.
8. The slicing/cutting machine can be used alone and can be used with other production equipment in the workshop.
9. The machine is equipped with a flat or serrated cutter, which can cut boned meat.
10. Push device memory function: When the slicer completes one cut, it automatically returns to the position set before feeding, thus reducing the feeding time.
11.25 conveyor belt type can be set to share the function, can be set 1-99 pieces / copy.
12.Electrical components are all well-known brands, Siemens circuit breaker (Germany), Siemens contactor (Germany), Omron relay (Japan), speed reducer Siemens (Germany), Yamato servo motor (Japan), Mitsubishi PLC controller ( Japan). Configure the German import cutting knife.
Model |
OR-SC21 |
OR-SC25 |
OR-SC25 (Include conveyor) |
||
Type |
Slice/cut machine |
||||
Capacity |
210 slices/min |
||||
Machine material |
SUS304 |
||||
Maximum stock bin length |
680mm |
||||
Cutting temperature |
Above -4℃ |
||||
Stock bin Cross-sectional area |
210*230mm |
250*230mm |
250*230mm |
||
Power |
3KW |
3.8KW |
3.8KW |
||
Slicing thickness |
1-30mm |
||||
Dimension |
1880*820*1280mm |
1880*950*1340mm |
2280*950*1340 |
||
Voltage |
380V three phase 50Hz |
||||
Weight |
420KG |
500KG |
520KG |
||
Output bin length |
835mm |
||||
Conveyor |
1280*310mm |
||||
Product Display
Packing & Delivery
Packing: The normal package is wooden. If export to european countries,the wooden box will be fumigated.
FOB
Sea freight
Air freight
About us
Company Profile
Luohe Orange Mechanical Equipment Co.,Ltd (Orange) is a professional mechanical equipment manufacturer which is located in Henan Province, China. The company is specialized in production, processing and sales of food machinery, agriculture machinery and other machineries. The main production scopes that we cover are: snack food processing machines, candy processing machines, fruit and vegetables processing machines, packaging machines, water well drilling machines, and various peeling machines.
The company covers 35,000 m2and the fixed asset of the company is RMB 10 million Yuan. There are over 100 employees, more than 30 technicians, and over 100 sets of various manufacturing equipment. The equipment are included: large scale forcing press machine, digital lathe, digital wire-electrode cutting equipment, various kinds of processing machines and equipment, etc. The company owns national patents and proprietary technology with independent ....
Our Service
1. Inquiry and consulting support
2.Sending machine video for reference
3.Testing machine before delivery according to requirements.
4.View our Factory
After-sales service
Help training customer operation machine
Solve the customer's problem when machines in use through online video
The large equipment or complex machine , appointed engineer overseas service
